Technical Specifications
| Item | Specification |
|---|---|

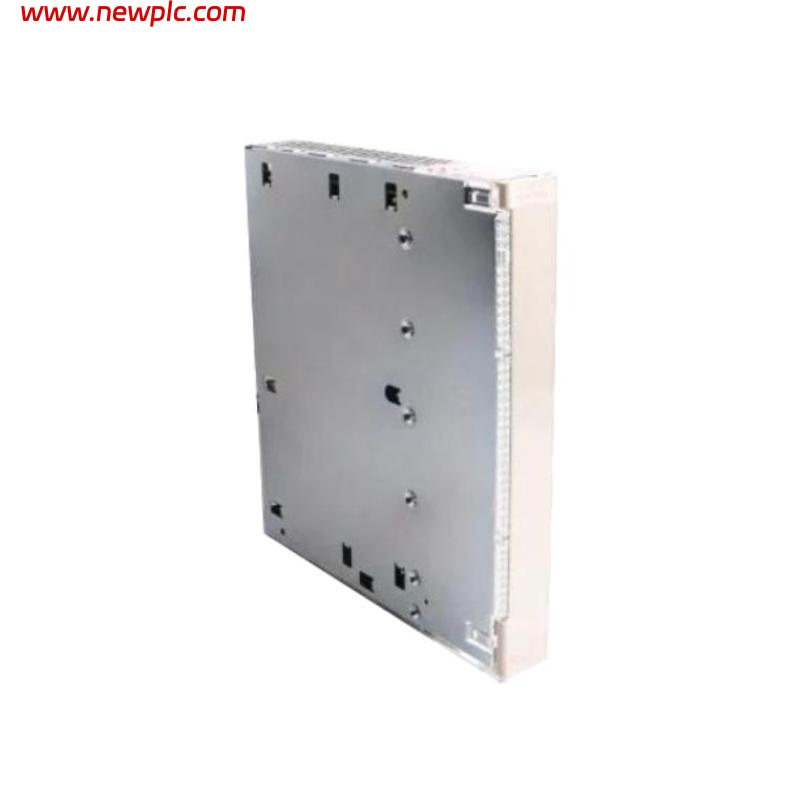

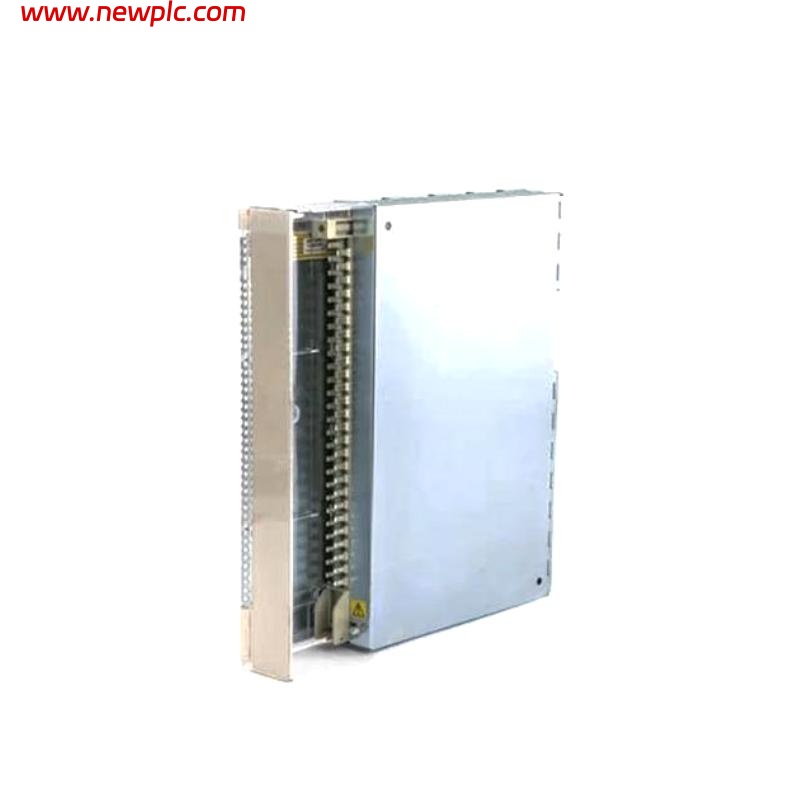

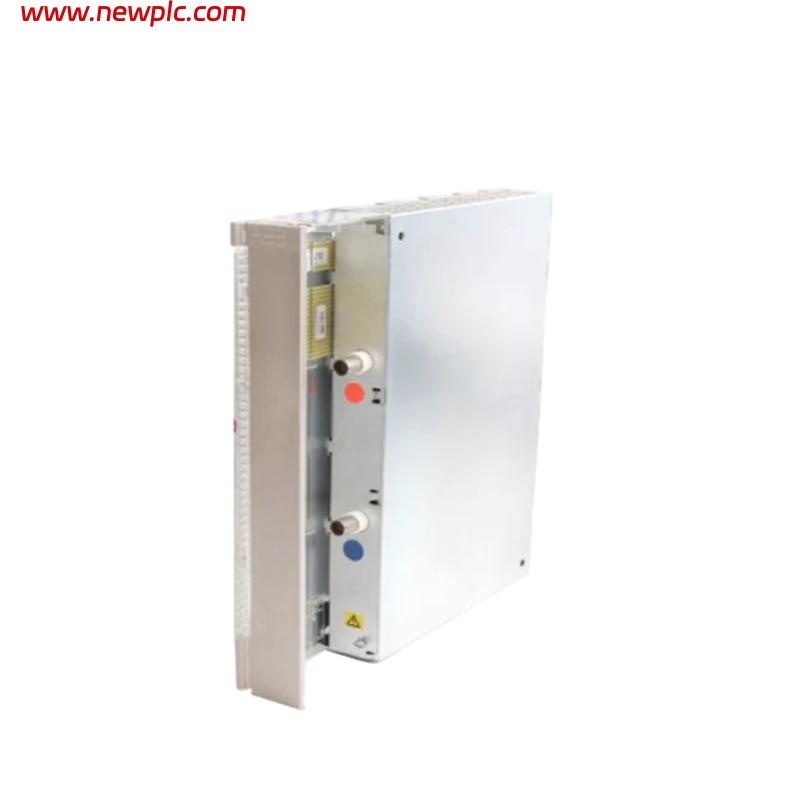

| Model | ABB CI615 (Ordering No. 3BHT300024R1) |
| Type | Digital Input Module |
| Product Category | PLC / DCS I/O Module |
| Product Family | ABB S800 I/O System |
| Function | Provides discrete DC input channels for logic and status signals |
| Number of Input Channels | 16 channels |
| Input Signal Type | DC discrete inputs (24 V DC nominal) |
| Input Logic | Positive logic (active high) |
| Nominal Input Current | Standard industrial discrete input level |
| Isolation | Galvanic isolation between channels and system backplane |
| Status Indication | Individual LED indicators for each input channel |
| Mounting Method | DIN rail or rack mount via S800 terminal base |
| Field Wiring Connection | Screw terminal or plug-in terminal base |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Protection Rating | IP20 |
| Housing Material | Industrial-grade plastic |
| Application Environment | Industrial automation and control cabinets |
| Compatibility | ABB S800 I/O system and compatible controllers |
| Dimensions | Approx. 22 mm × 115 mm × 100 mm (W × H × D) |
| Weight | Approximately 0.32 kg |
FAQ
FAQ
Q1: What is the primary function of the ABB CI615 module?
It provides 16 discrete DC input channels to read logic and status signals from field devices such as switches, contact outputs, and sensors.
Q2: How many input channels does the CI615 support?
The module supports 16 independent discrete DC input channels.
Q3: What type of signals does this module accept?
It accepts standard DC discrete input signals, typically 24 V DC active high.
Q4: Does the CI615 provide electrical isolation?
Yes, it offers galvanic isolation between the input channels and the system backplane to improve signal integrity and safety.
Q5: How are field devices connected to the CI615?
Field wiring connects through screw terminal blocks or a plug-in terminal base for secure installation.
Q6: Does the module include status indication?
Yes, each channel has an individual LED indicator to show whether the input signal is active.
Q7: Is the CI615 suitable for use in industrial environments?
Yes, it is designed for industrial automation and control cabinet use within its specified operating temperature range.
Q8: What are the physical dimensions and weight of the CI615?
The module measures approximately 22 mm × 115 mm × 100 mm and weighs about 0.32 kg.
