Technical Specifications
| Parameter | Value |
|---|---|

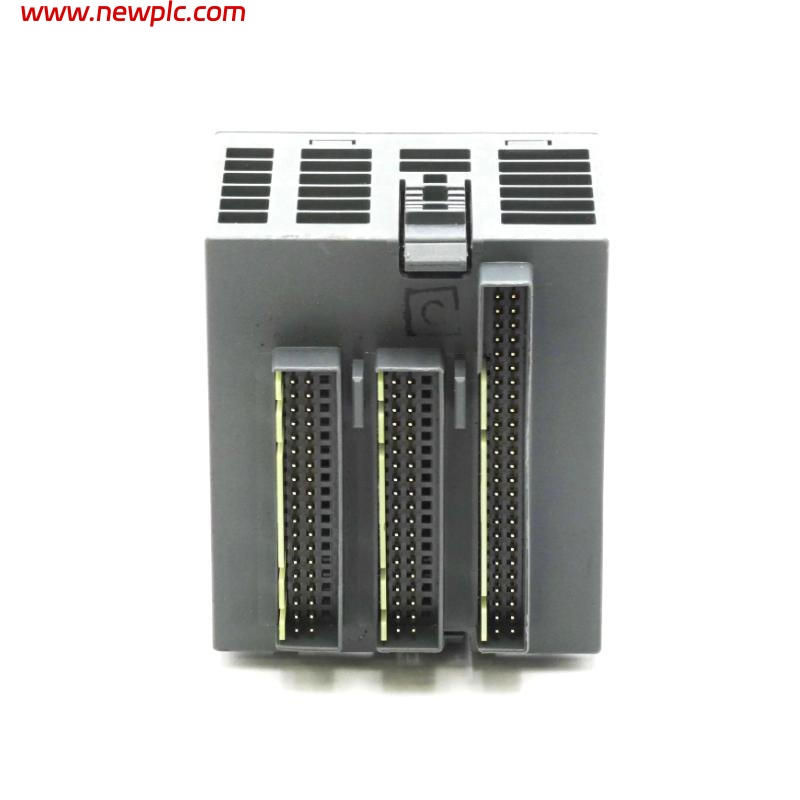

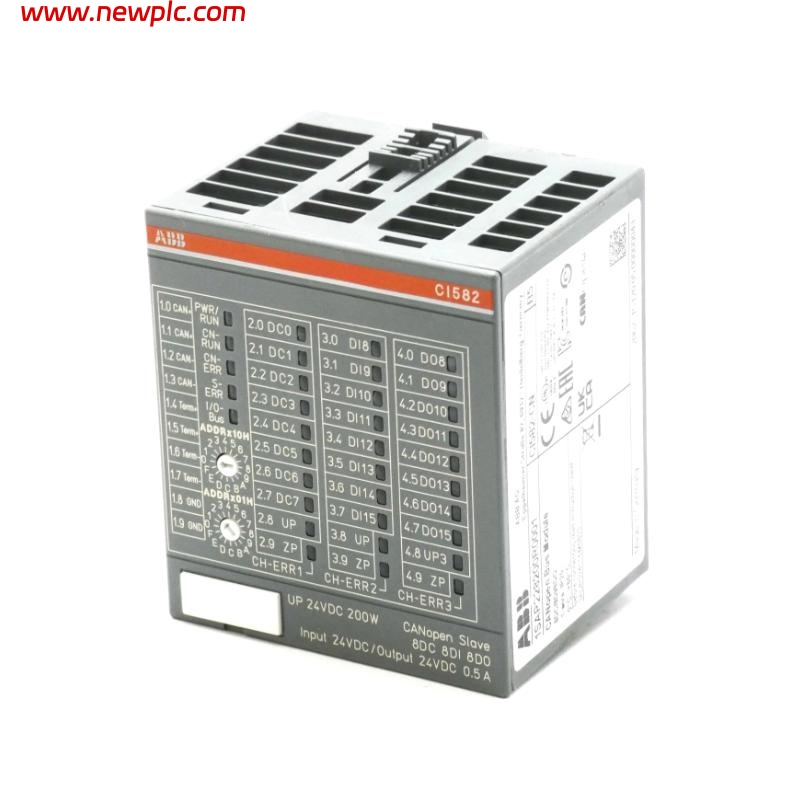

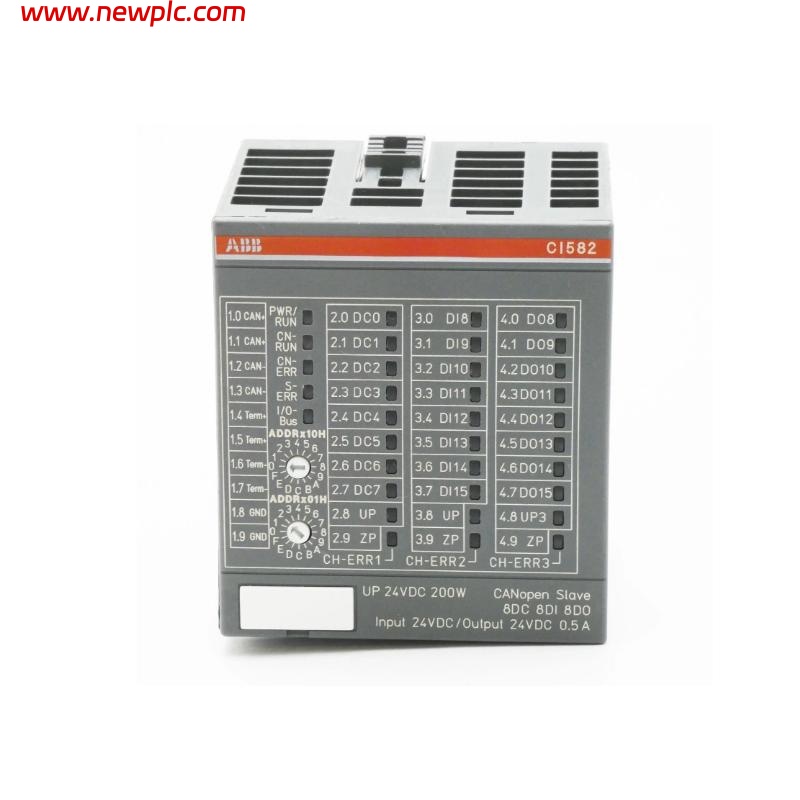

| Product Model | ABB CI582-CN 1SAP228200R0001 S500 Interface Module |
| Interface | CAN |
| Protocol | CANopen |
| Power Supply | Process supply voltage 24 V DC via terminals ZP, UP, UP3 |
| Power Consumption | UP: 0.2 A; UP3: 0.06 A + 0.5 A max. per output |
| Transmission Rates | 10 / 20 / 50 / 125 / 250 / 500 / 800 kbit/s, 1 Mbit/s |
| Auto Baud Rate Detection | Supported |
| Processor | Hilscher NETX 100 |
| Digital Inputs | 8 channels, 24 V DC, Type 1, input delay configurable 0.1–32 ms |
| Digital Outputs | 8 channels, 500 mA per channel (max. 4 A total), short-circuit proof |
| Configurable Digital I/O | 8 channels, user-defined as input or output |
| Galvanic Isolation | Yes (CANopen interface isolated) |
| Mounting Position | Horizontal or vertical (with derating) |
| Operating Temperature | 0 … +60 °C (horizontal) / 0 … +40 °C (vertical) |
| Storage Temperature | –40 … +70 °C |
| Humidity | ≤95 %, non-condensing |
| Degree of Protection | IP20 |
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.13 kg (approx. 125 g without terminal unit) |
FAQ
FAQ
Q1: What communication protocol does the ABB CI582-CN support?
A1: The module supports the CANopen protocol for industrial control networks.
Q2: How many digital input and output channels does the module have?
A2: It provides 8 digital input channels and 8 digital output channels, each with individual protection.
Q3: What is the power supply requirement for this module?
A3: It requires a 24 V DC process supply voltage connected via terminals ZP, UP, and UP3.
Q4: Does the module support automatic baud rate detection?
A4: Yes, automatic transmission rate detection is supported.
Q5: Can the module be mounted vertically?
A5: Yes, but output load per group must be reduced to 50% in vertical mounting.
Q6: What is the degree of protection of the module?
A6: The module is rated IP20 and must be installed in a suitable control cabinet.
Q7: What is the maximum current per digital output channel?
A7: Each digital output channel is rated for 500 mA, with a total maximum of 4 A for all channels combined.
Q8: Does the module feature short-circuit and overload protection?
A8: Yes, each channel has independent short-circuit and overload protection with automatic recovery.
