Technical Specifications
| Parameter | Value |
|---|---|

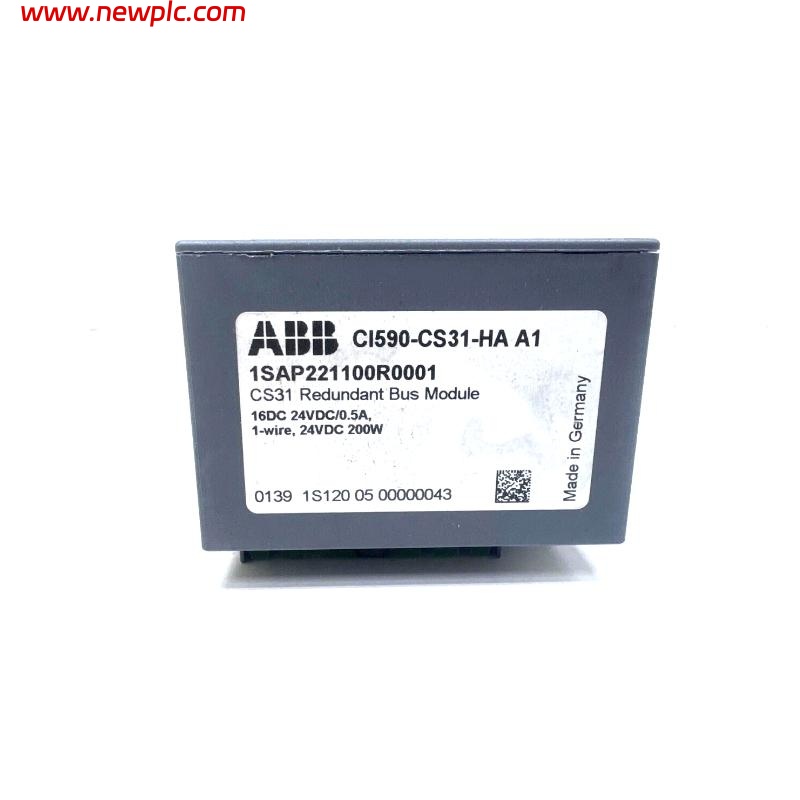

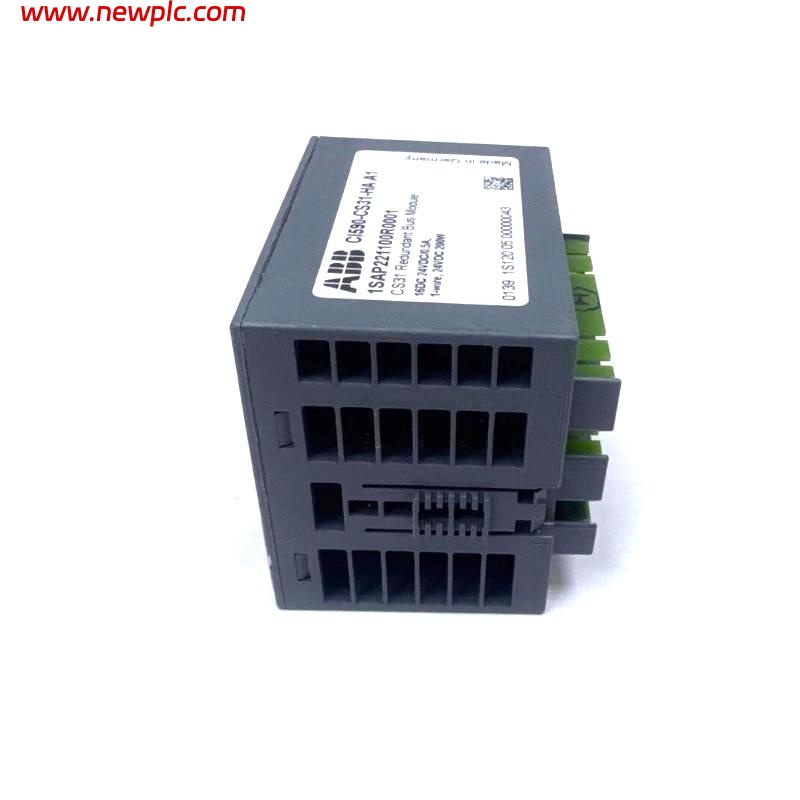

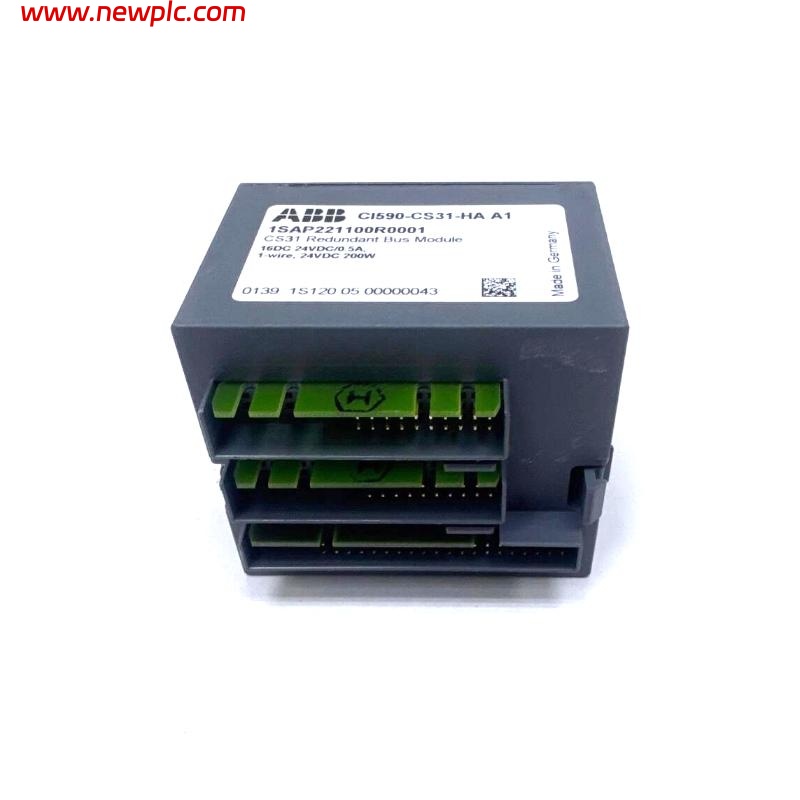

| Model Number | ABB CI590-CS31-HA 1SAP221100R0001 |
| Description | CS31 Redundant Communication Interface Module |
| Rated Supply Voltage | 24 V DC |
| Current Consumption | 50 mA |
| Maximum Electric Charge at Supply Terminals | 10 A |
| Protection Against Reverse Voltage | Yes |
| Galvanic Isolation | Yes (bus interfaces isolated from module) |
| Power Dissipation | Max. 6 W (outputs unloaded) |
| Number of Configurable Digital I/O | 16 |
| Input Signal Voltage | 24 V DC (Signal 1: +15…+30 V) |
| Input Delay | Typical 8 ms (configurable 0.1–32 ms) |
| Output Voltage (Signal 1) | UP – 0.8 V |
| Output Current per Channel | 500 mA |
| Output Short Circuit/Overload Protection | Yes, with automatic recovery |
| Diagnosis | Via two rotary switches and 27 LEDs |
| Mounting Position | Horizontal or vertical (with derating) |
| Cooling | Natural convection |
| Operating Temperature | 0…+60 °C (horizontal) / 0…+40 °C (vertical) |
| Storage Temperature | -40…+70 °C |
| Humidity | ≤95% RH, no condensation |
| Dimensions (W × H × D) | 62 × 76 × 67.5 mm |
| Weight | 0.119 kg |
FAQ
FAQ
Q1: How many input/output channels does the ABB CI590-CS31-HA support?
A1: The module supports up to 16 configurable digital input/output channels.
Q2: What is the supply voltage of the module?
A2: The rated supply voltage of the module is 24V DC.
Q3: Does the module provide short-circuit and overload protection?
A3: Yes, all output channels feature short-circuit and overload protection with automatic recovery.
Q4: What are the allowable mounting positions?
A4: The module can be mounted horizontally or vertically (with derating for vertical installation).
Q5: How is diagnosis performed on the module?
A5: Diagnosis is done through two rotary switches and 27 LED indicators on the front panel.
Q6: What should be noted when mounting the module vertically?
A6: When mounted vertically, the output load per group must be reduced by 50%.
Q7: Does the module have galvanic isolation?
A7: Yes, the CS31 bus interfaces are galvanically isolated from the rest of the module.
Q8: What is the protection rating of the module?
A8: The module conforms to IP20 protection class.
