Technical Specifications
| Parameter | Description |
|---|---|

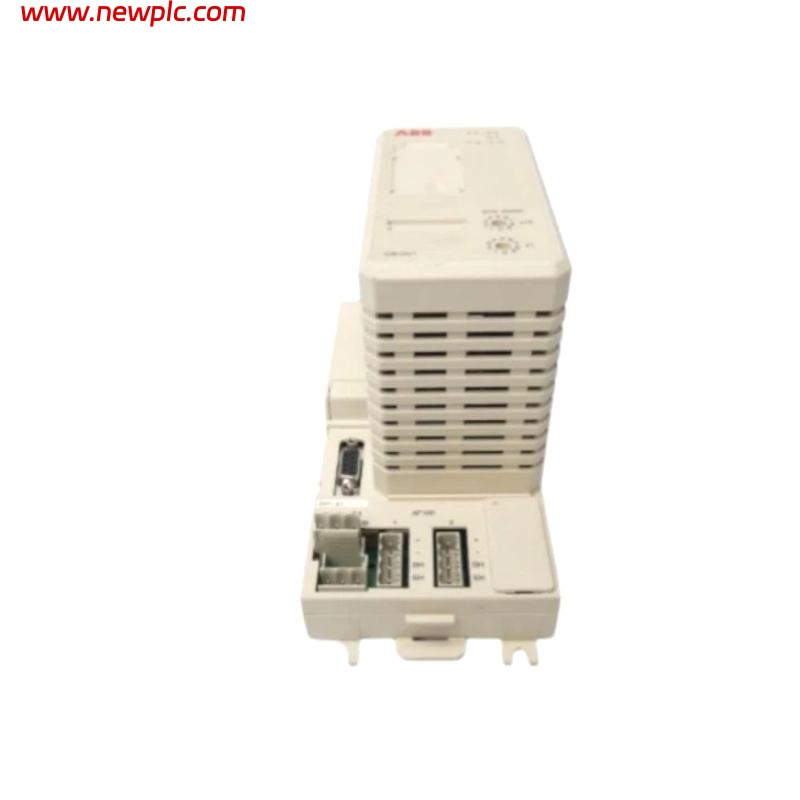

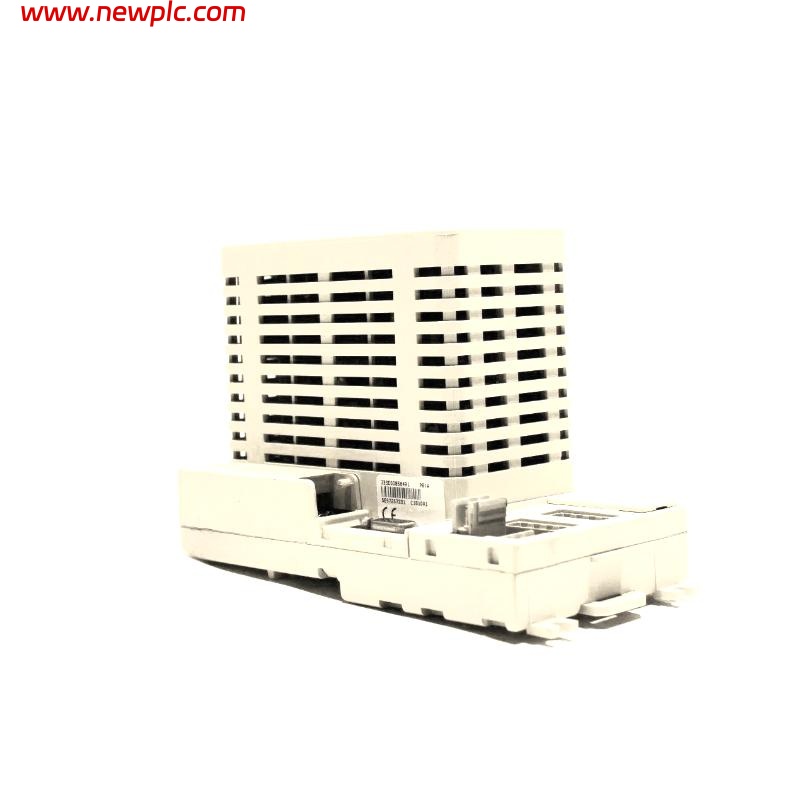

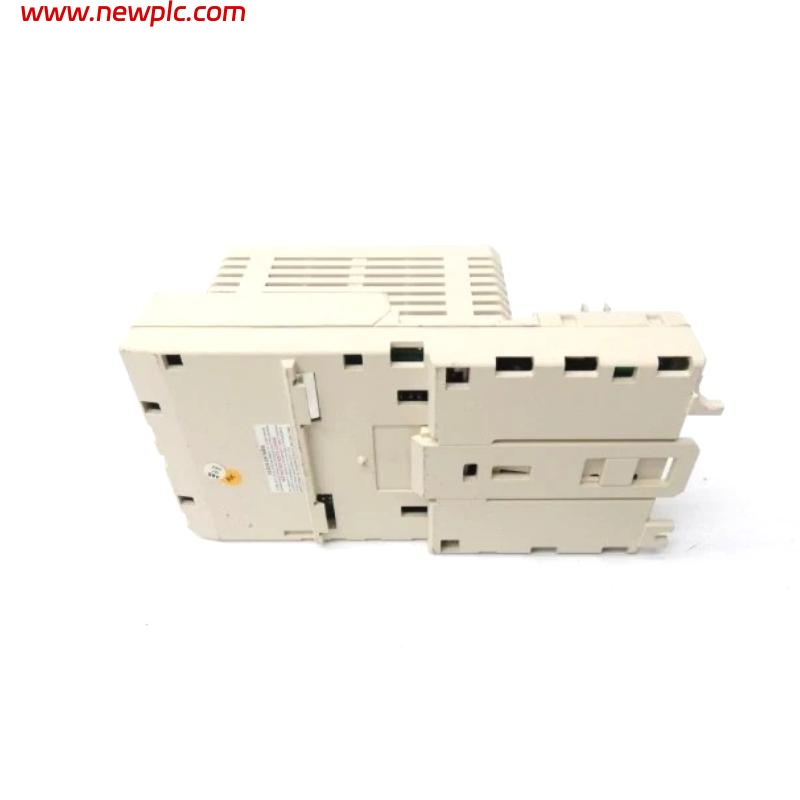

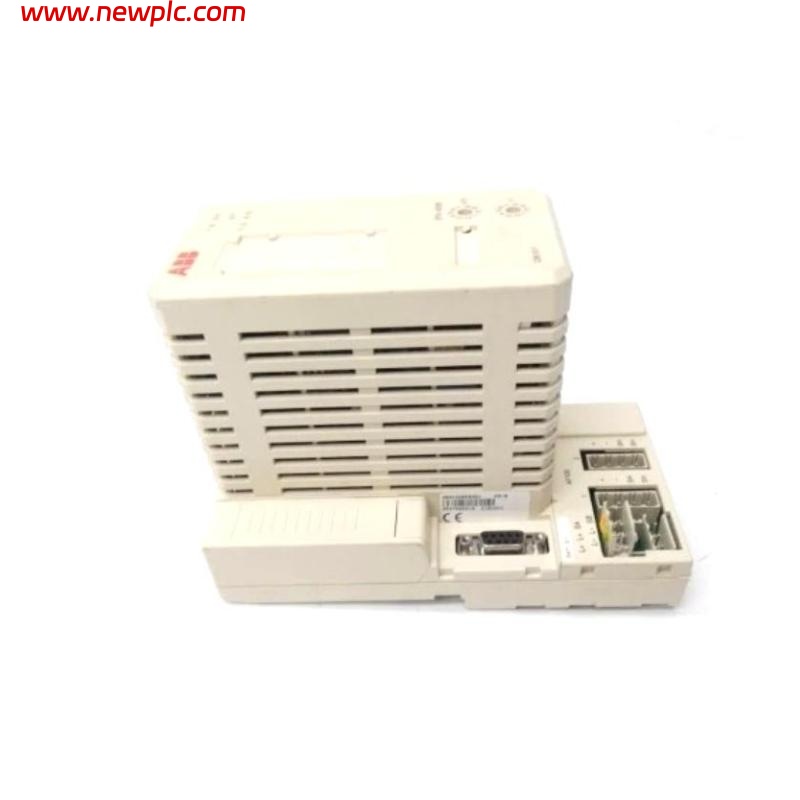

| Product Model | ABB CI810V1 |
| Part Number | 3BSE008584R1 |
| Product Type | Advant Fieldbus 100 Communication Interface Module |
| Communication Protocol | Advant Fieldbus 100 |
| Supported Systems | AC 800M controller family |
| Function | Provides communication interface between AC 800M controller and Advant Fieldbus 100 I/O |
| Power Consumption | 3 W |
| Supply Voltage | From base unit backplane |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 170 × 84 × 120.9 mm |
| Weight | 0.45 kg |
| Mounting | DIN rail mounting via base unit |
| Certifications | CE, UL, cUL |
FAQ
FAQ
Q1: What is the primary function of the ABB CI810V1 module?
A1: It provides a communication interface between the AC 800M controller and the Advant Fieldbus 100 I/O system.
Q2: Which controllers are compatible with the CI810V1?
A2: It is compatible with controllers from the ABB AC 800M family.
Q3: What is the communication protocol used by the CI810V1?
A3: The module uses the Advant Fieldbus 100 protocol.
Q4: How is the CI810V1 powered?
A4: It receives power from the base unit backplane of the AC 800M system.
Q5: What are the environmental operating limits for the CI810V1?
A5: Operating temperature is 0 to +55 °C, and storage temperature is -40 to +70 °C, with 5–95% non-condensing humidity.
Q6: How is the CI810V1 mounted?
A6: The module is mounted on a DIN rail via the base unit.
Q7: What is the power consumption of the CI810V1?
A7: The typical power consumption is 3 W.
Q8: What certifications does the CI810V1 have?
A8: The module is CE, UL, and cUL certified.
