Technical Specifications
| Parameter | Description |
|---|---|
| Article Number | 3BSE043660R1 |

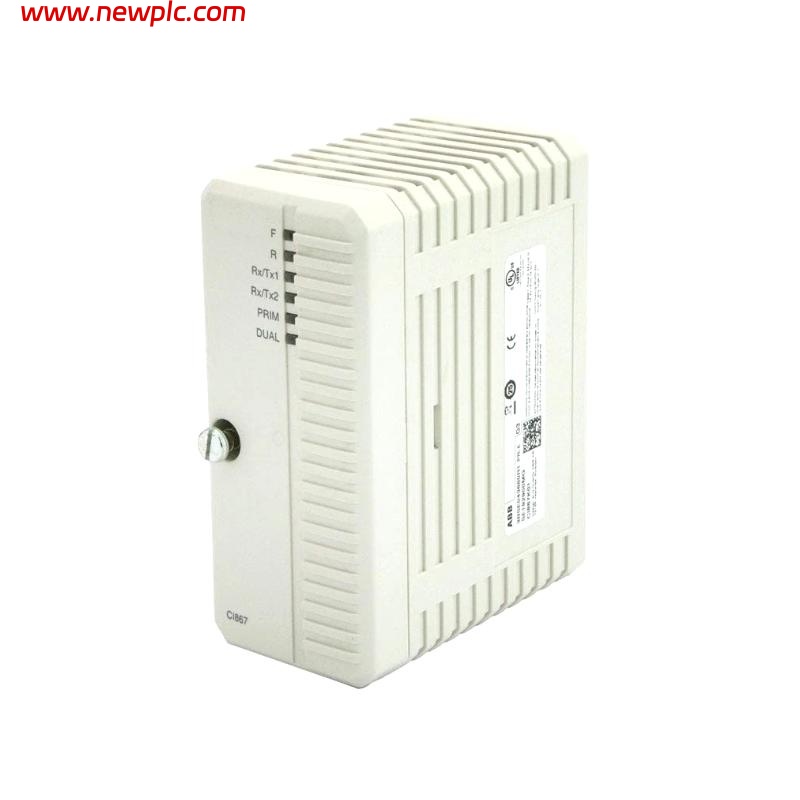

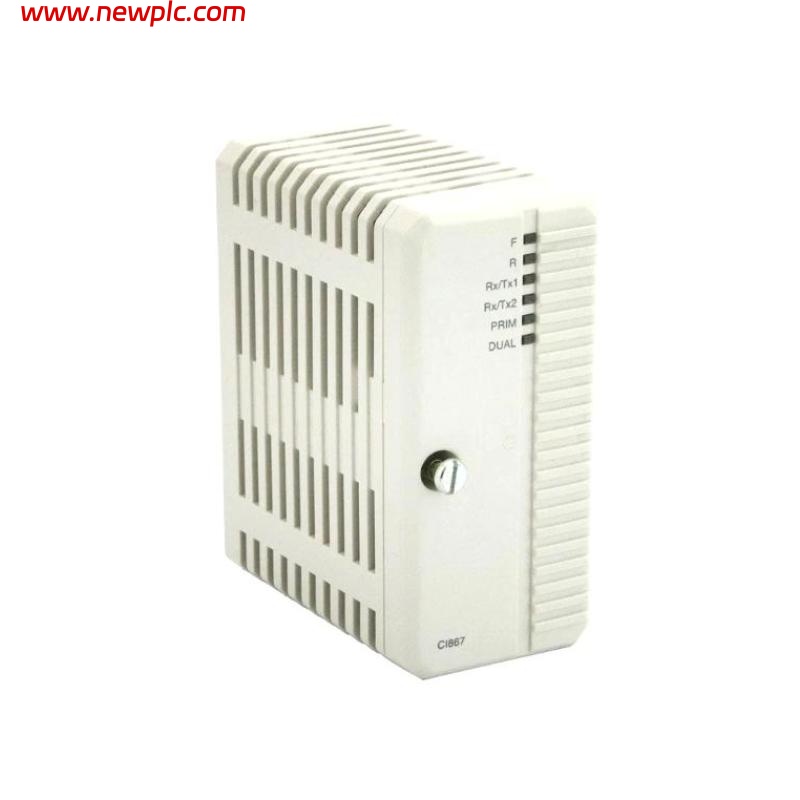

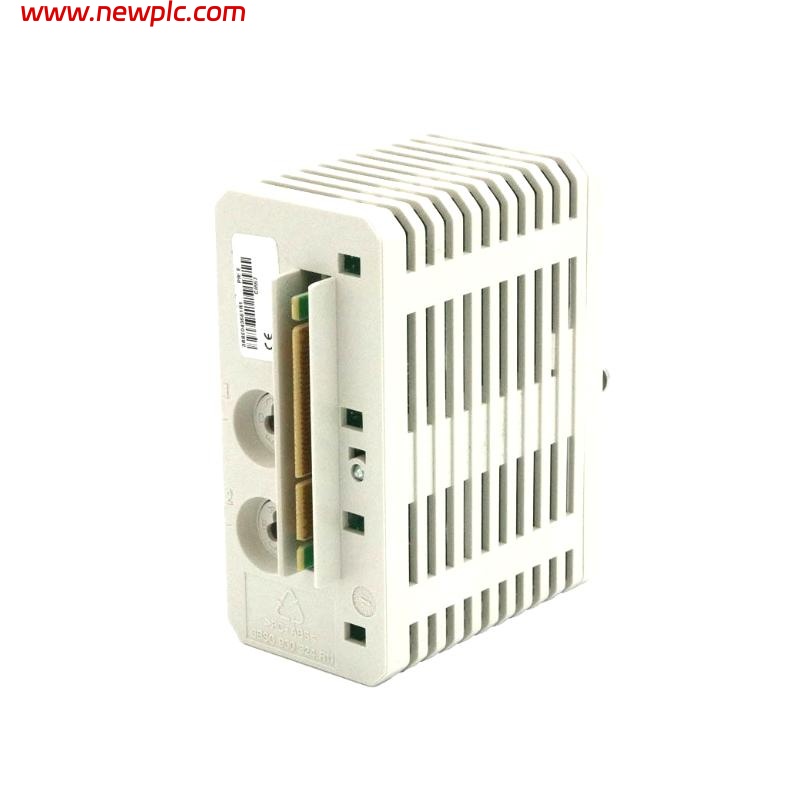

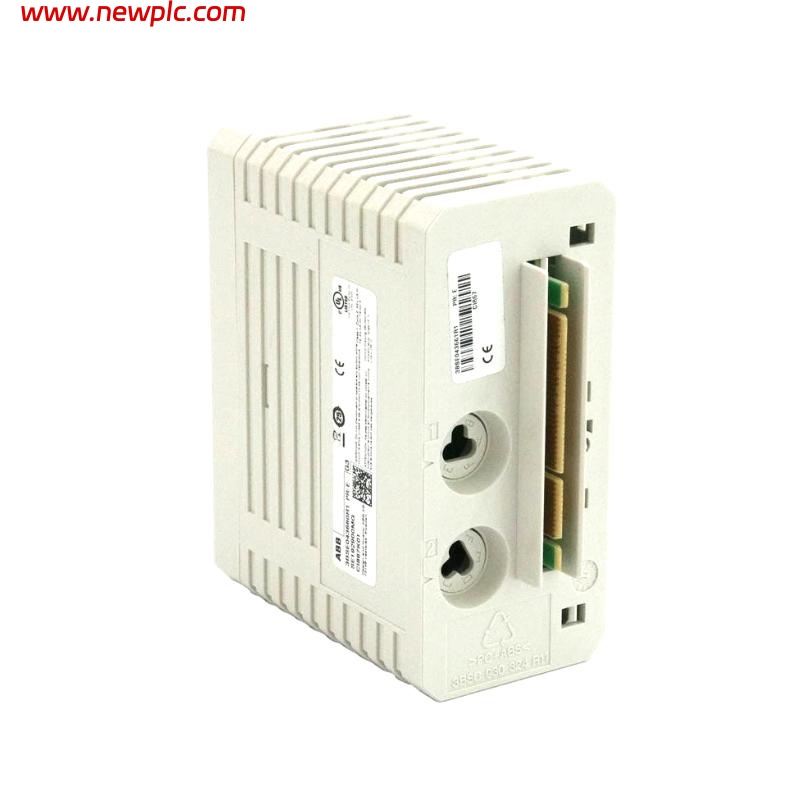

| Product Type | Modbus TCP Interface Module |
| Communication Protocol | MODBUS TCP |
| Master or Slave | Master/Slave |
| Number of Channels | 1 channel |
| Transmission Speed | 10/100 Mbit/s (Ch1) |
| Line Redundancy | No |
| Module Redundancy | Yes |
| Hot Swap | Yes |
| Connector Type | RJ-45 female (8-pin) |
| Max Units on CEX Bus | 12 |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Altitude | 2000 m (IEC/EN 61131-2) |
| Pollution Degree | Degree 2 (IEC/EN 61131-2) |
| Corrosion Protection | G3 (ISA 71.04) |
| Relative Humidity | 5 to 95 %, non-condensing |
| Protection Class | IP20 (EN 60529, IEC 529) |
| Certifications | CE, UL 61010-1, UL 61010-2-201, UL 60079-15, cULus Class 1 Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X, DNV-GL |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
| Dimensions (W × H × D) | 59 × 186 × 127.5 mm |
| Weight | 0.7 kg |
FAQ
FAQ
Q1: What communication protocol does this module support?
A1: It supports the MODBUS TCP protocol.
Q2: Does it support redundancy?
A2: It supports module redundancy but not line redundancy.
Q3: Is hot swap supported?
A3: Yes, hot swap is supported.
Q4: How many devices can be connected to each module?
A4: It can connect up to 70 slave units and 8 master units.
Q5: How many communication channels are available?
A5: It is a single-channel module (1 channel).
Q6: What is the operating temperature range?
A6: +5 to +55 °C.
Q7: What is the protection class rating?
A7: IP20.
Q8: What is the module weight?
A8: The weight is 0.7 kg.
