Technical Specifications
| Item | Specification |
|---|---|

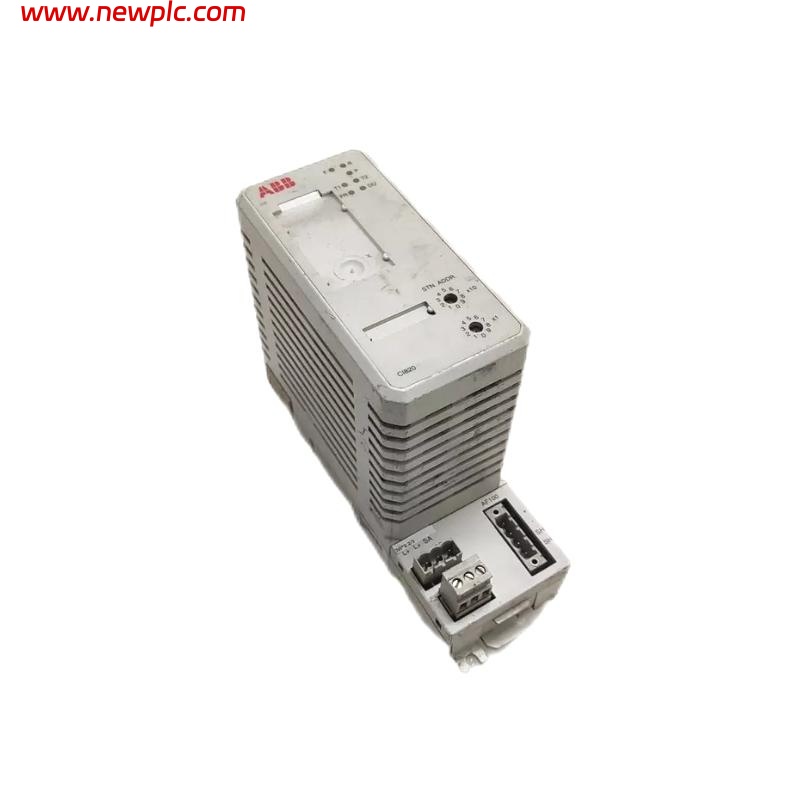

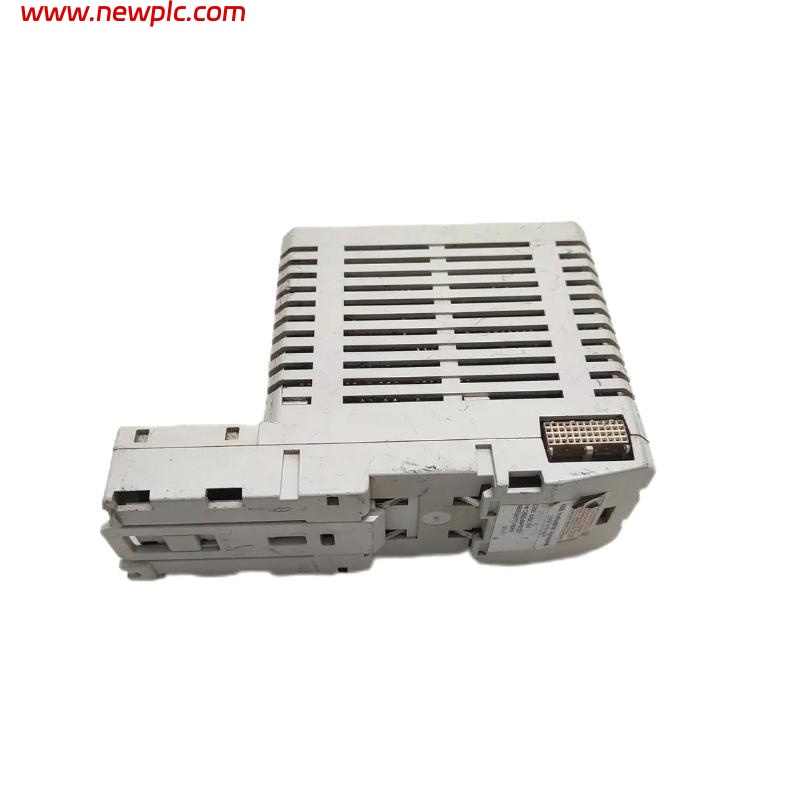

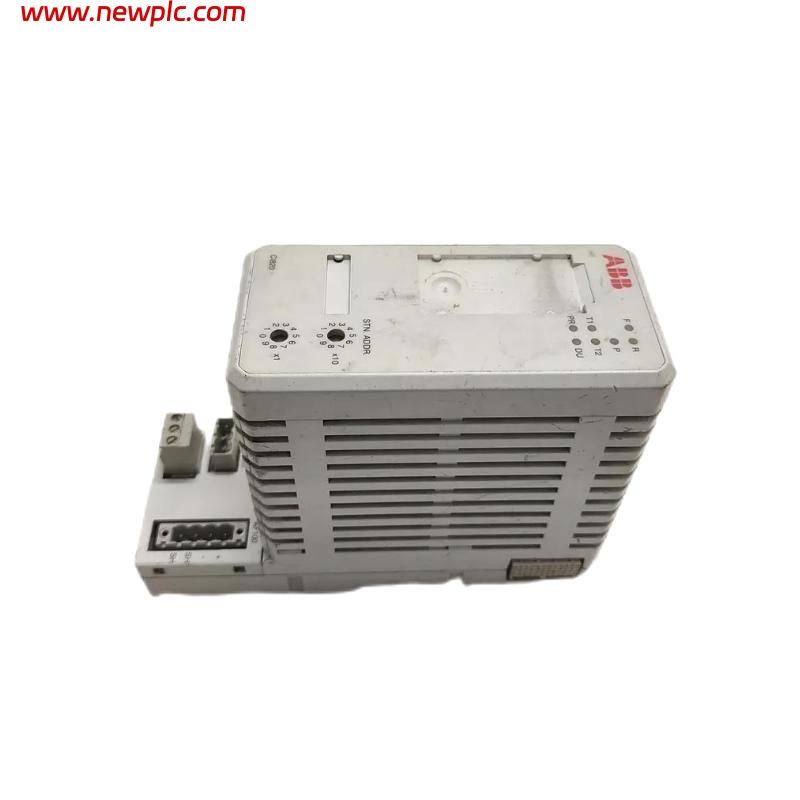

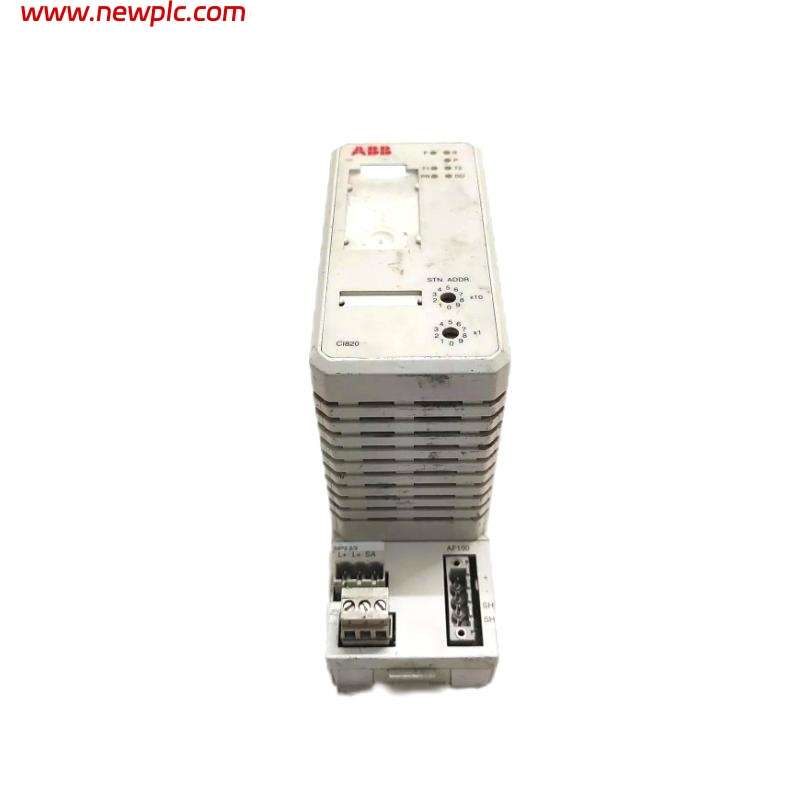

| Module Type | Redundant Communication Module |
| Part Number | CI820 |
| Product ID (Ordering Code) | 3BSE013200R1 |
| Supported System | AC 800M |
| Communication Interface | Redundant Ethernet (ModuleBus) |
| Redundancy | Yes (used in pairs: CI820A & CI820B) |
| Protocol | ABB ModuleBus Protocol |
| Mounting Type | DIN rail |
| Power Consumption | < 3.5 W |
| Voltage Supply | 24 V DC (19.2 – 30 V DC) |
| LED Indicators | Module status, communication, error |
| Configuration | Via Control Builder M |
| Hot Swap Support | Yes |
| Dimensions | 59 × 185 × 127.5 mm |
| Weight | 0.512 kg |
| Operating Temperature | -25 to +70 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
FAQ
FAQ
Q1: What system is the CI820 communication module used with?
A1: The CI820 module is used with ABB’s AC 800M controller.
Q2: Does the CI820 module support redundancy?
A2: Yes, CI820 is used in pairs (CI820A and CI820B) for redundant communication.
Q3: What type of communication does the CI820 module support?
A3: It supports redundant Ethernet communication via the ABB ModuleBus protocol.
Q4: Can the CI820 module be hot-swapped?
A4: Yes, it supports hot swap functionality for maintenance without system shutdown.
Q5: How is the CI820 module configured?
A5: Configuration is performed using ABB’s Control Builder M software.
Q6: What power supply is required for the CI820?
A6: It requires 24 V DC, with an acceptable range of 19.2 to 30 V DC.
Q7: Are there status indicators on the CI820 module?
A7: Yes, it includes LED indicators for module status, communication, and errors.
Q8: What is the typical installation method for CI820?
A8: It is installed on a DIN rail within the controller rack.
