Technical Specifications
| Parameter | Description |
|---|---|

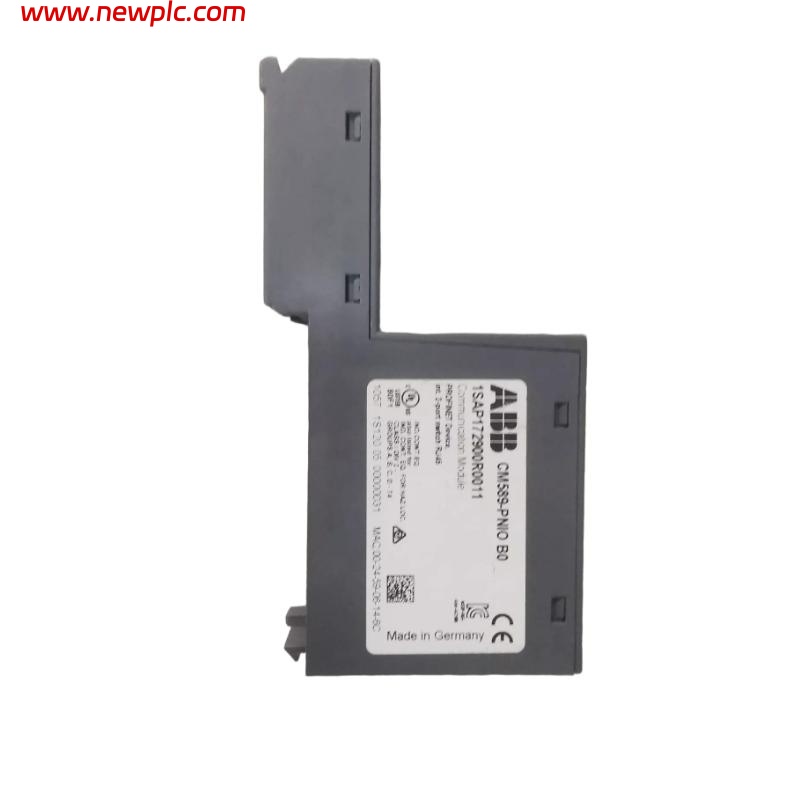

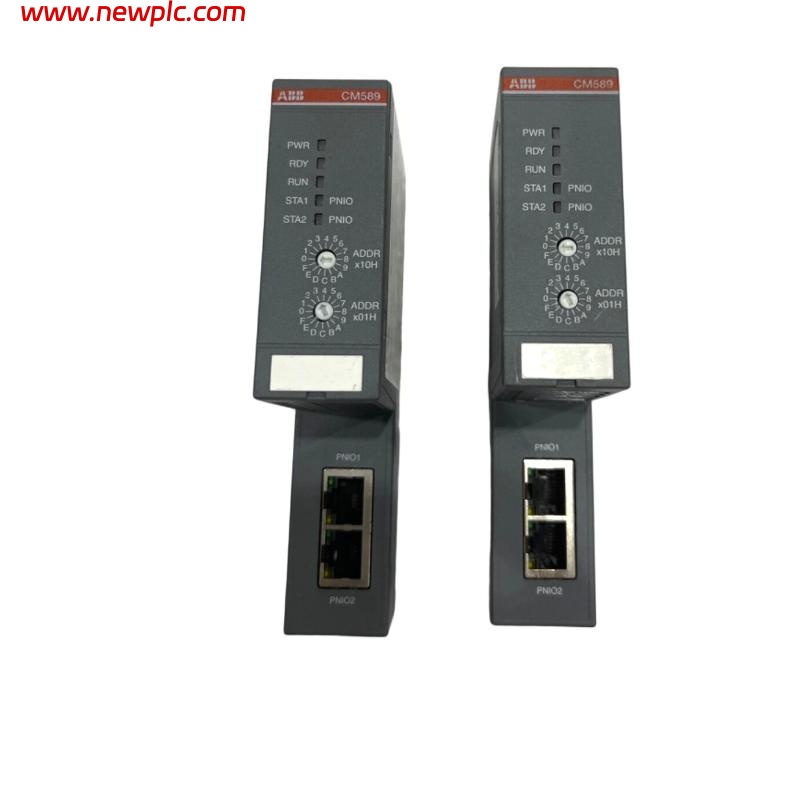

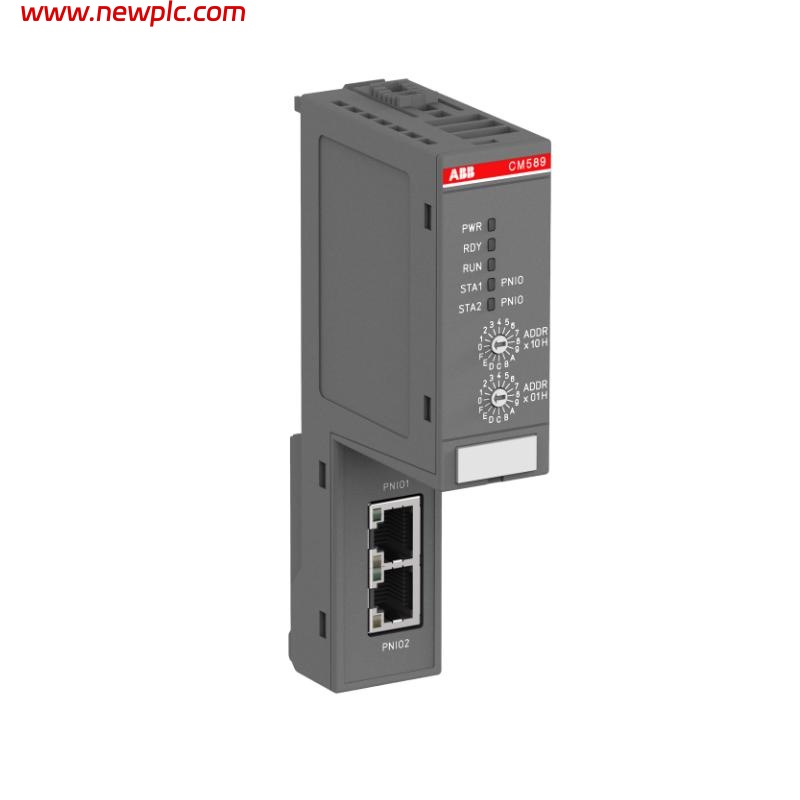

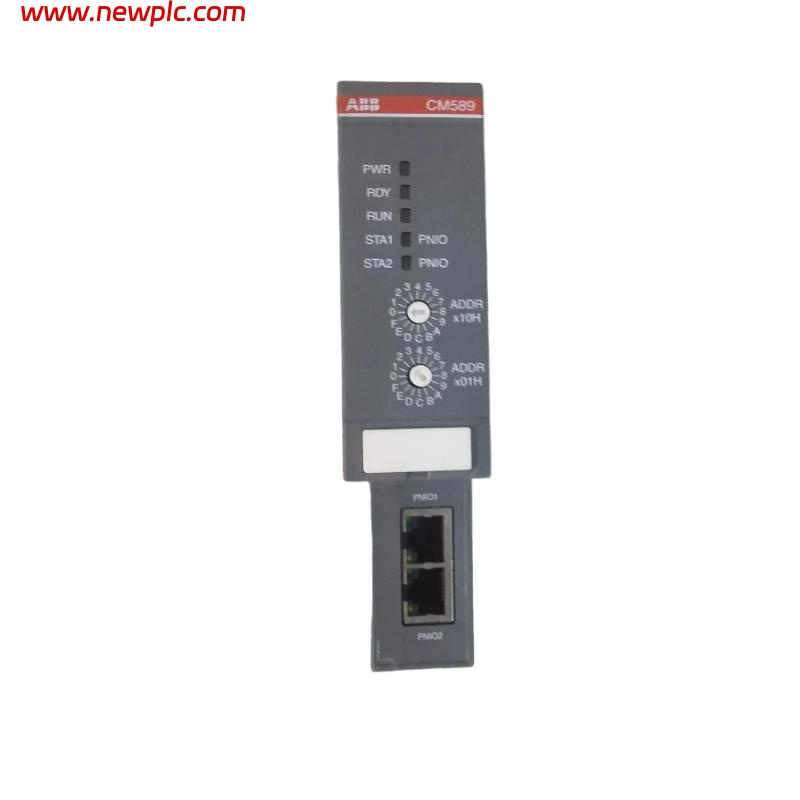

| Product Model | ABB CM589-PNIO |
| Order Code | 1SAP172900R0001 |
| Product Name | AC500 PROFINET IO Communication Module |
| Communication Interface | PROFINET IO Controller/Device, dual RJ45 ports, 10/100 Mbit/s |
| Supported Protocols | PROFINET IO, TCP/IP, UDP/IP, ARP, ICMP |
| I/O Channels | Supports up to 128 input/output channels |
| Configuration | Configured and diagnosed using Automation Builder |
| Network Topology | Supports line, star, and ring network structures |
| Power Supply | 24 V DC (typical current 0.12 A) |
| Power Consumption | ~3 W |
| Protection Class | IP20 |
| Dimensions (L × H × W) | 62 × 135 × 28 mm |
| Weight | 0.1 kg |
| Operating Environment | Horizontal mounting, 0~+60 ℃, humidity 5%~95% (non-condensing) |
FAQ
FAQ
-
Q: What PROFINET communication modes are supported?
A: Supports both PROFINET IO controller and device modes for flexible configurations. -
Q: How many I/O channels can the module handle?
A: Up to 128 input/output channels are supported. -
Q: Which network topologies are compatible?
A: Supports line, star, and ring topologies for diverse industrial applications. -
Q: How is the module configured and diagnosed?
A: Configuration and diagnostics are performed using ABB’s Automation Builder software. -
Q: Does the module include diagnostic functions?
A: Yes, it provides real-time communication monitoring and fault alarms. -
Q: What is the speed of the PROFINET interface?
A: Supports 10/100 Mbit/s auto-negotiation. -
Q: What are the power supply requirements?
A: A stable 24 V DC power source is recommended. -
Q: Does the module support network redundancy?
A: Yes, it supports PROFINET redundancy for enhanced reliability.
