Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | ABB CM589-PNIO-4 |
| Order Code | 1SAP172900R0111 |

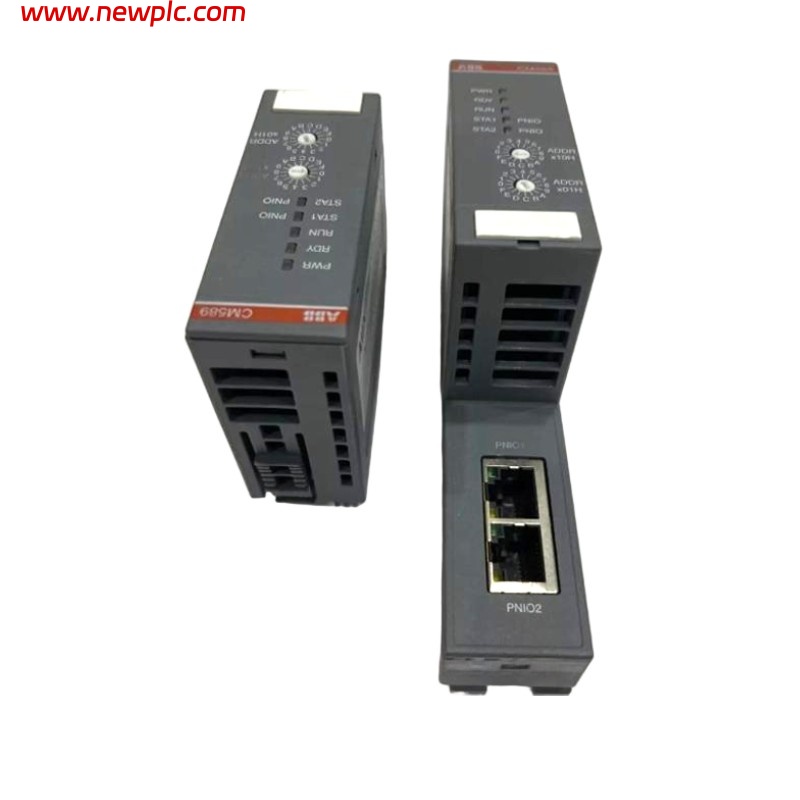

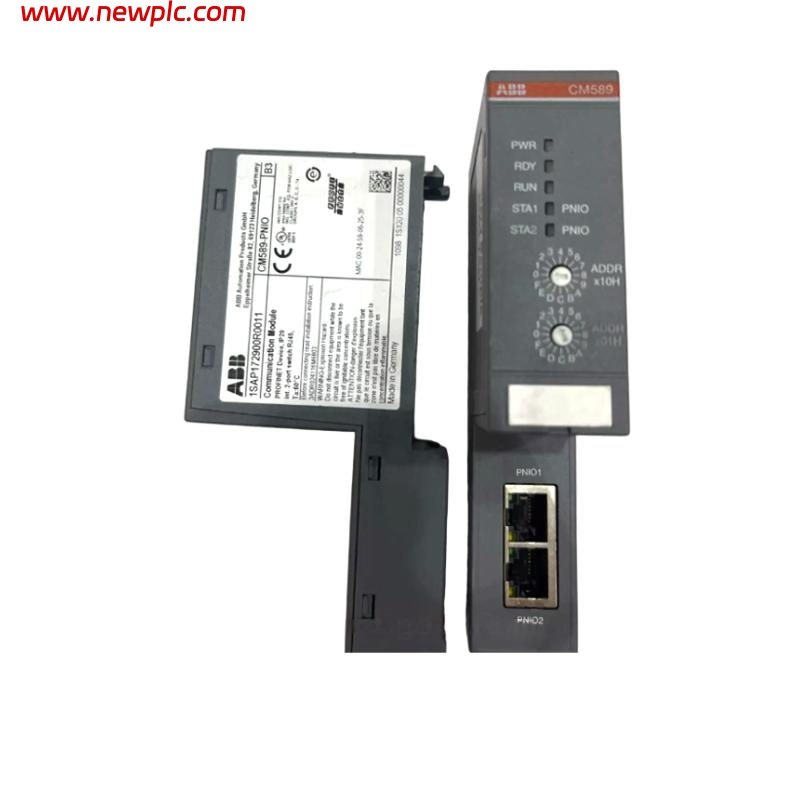

| Product Name | AC500 PROFINET IO (4-Port) Communication Module |
| Communication Interface | 4 RJ45 ports, PROFINET IO, 10/100 Mbit/s auto-negotiation |
| Supported Protocols | PROFINET IO, TCP/IP, UDP/IP, ARP, ICMP |
| Device Role | Supports both PROFINET Controller and Device modes |
| I/O Channels | Supports up to 128 input/output channels |
| Network Topology | Line, star, and ring structures supported |
| Configuration | Configured and diagnosed via Automation Builder software |
| Power Supply | 24 V DC (typical current 0.12 A) |
| Power Consumption | ~3.5 W |
| Isolation | Galvanic isolation between communication ports and internal circuits |
| Protection Class | IP20 |
| Dimensions (L × H × W) | 62 × 135 × 28 mm |
| Weight | 0.1 kg |
| Operating Environment | Horizontal mounting, 0~+60 ℃, humidity 5%~95% (non-condensing) |
FAQ
FAQ
-
Q: How many PROFINET communication ports does the module have?
A: The module provides four RJ45 ports for multi-node communication. -
Q: Can it operate as both a controller and a device?
A: Yes, it supports both PROFINET Controller and Device roles. -
Q: How many I/O channels can the module handle?
A: It supports up to 128 input/output channels. -
Q: Does the module support redundant ring networks?
A: Yes, it supports PROFINET redundancy for higher system reliability. -
Q: How is configuration and diagnostics performed?
A: Through ABB’s Automation Builder software with real-time diagnostic functions. -
Q: What is the communication speed per port?
A: Each port supports 10/100 Mbit/s auto-negotiation. -
Q: Are the ports electrically isolated?
A: Yes, all communication ports are galvanically isolated to enhance stability. -
Q: What are the environmental requirements?
A: Horizontal mounting is recommended; operating temperature 0~+60 ℃, humidity 5%~95% non-condensing.
