Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | ABB CP435T-ETH |
| Order Code | 1SBP260197R1001 |

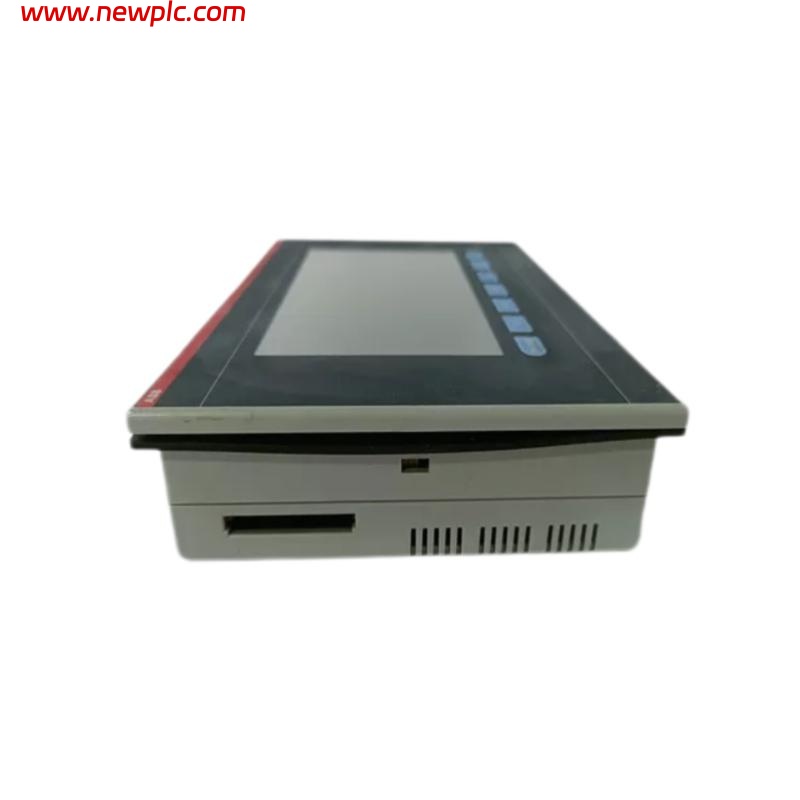

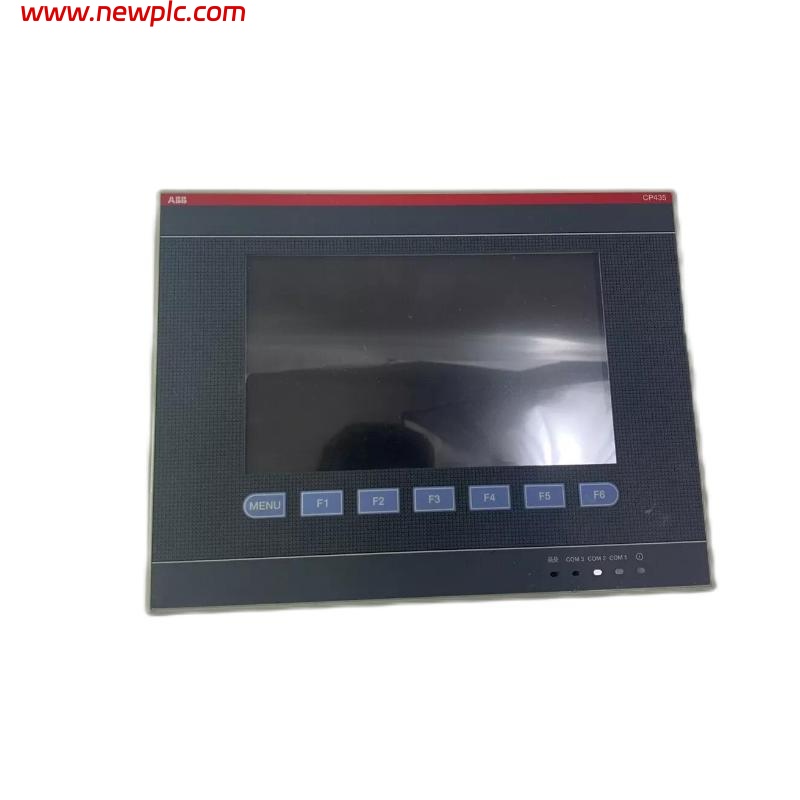

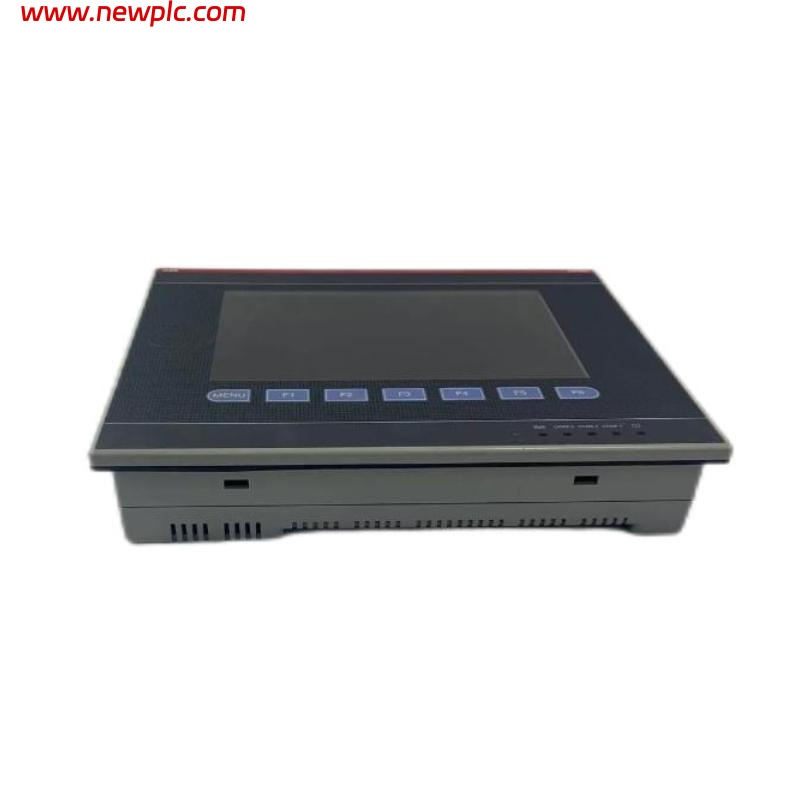

| Product Name | 7″ TFT Color Touchscreen Control Panel |
| Display Type | 7″ TFT touchscreen, 64K colors |
| Resolution | 800 × 480 pixels, 16:9 widescreen |
| Physical Keys | 1 menu key + 6 user-defined function keys |
| Communication Interfaces | Ethernet; Serial: RS-232/RS-485 & RS-232/RS-422/RS-485 |
| Communication Speed | 4.8…187.5 kbps |
| Memory | User data 512 kB; Program memory 8 MB |
| Security | Password protection, 9 user levels |
| RTC | Built-in real-time clock |
| Power Supply | 24 V DC |
| Power Consumption | 20 VA |
| Operating Conditions | 0…+50 °C (operation); −10…+60 °C (storage) |
| Dimensions (D × H × W) | 47 × 176 × 231 mm |
| Weight | 0.86 kg |
| Certifications | CE, cUL, RoHS, etc. |
FAQ
FAQ
-
Q: What resolution and color depth does the display support?
A: It features 800 × 480 resolution and 64K color depth. -
Q: How many programmable physical keys are available?
A: It has one menu key and six user-defined function keys. -
Q: What communication interfaces are supported?
A: Supports Ethernet plus two serial ports (RS-232/485 and RS-232/422/485). -
Q: What is the communication speed range?
A: Communication speed ranges from 4.8 to 187.5 kbps. -
Q: What memory capacities are available?
A: Offers 512 kB for user data and 8 MB for program storage. -
Q: Does it offer user-level security features?
A: Yes, it supports password protection across 9 user levels. -
Q: What are the operating and storage temperature ranges?
A: Operational range is 0…+50 °C and storage range is −10…+60 °C. -
Q: Is there a built-in real-time clock?
A: Yes, it includes a built-in real-time clock.
