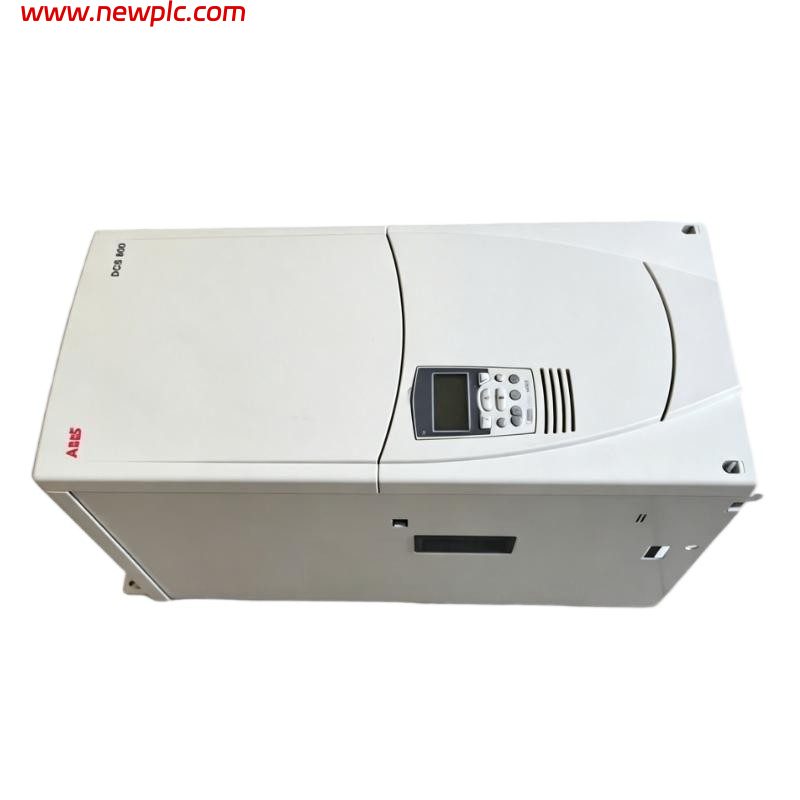

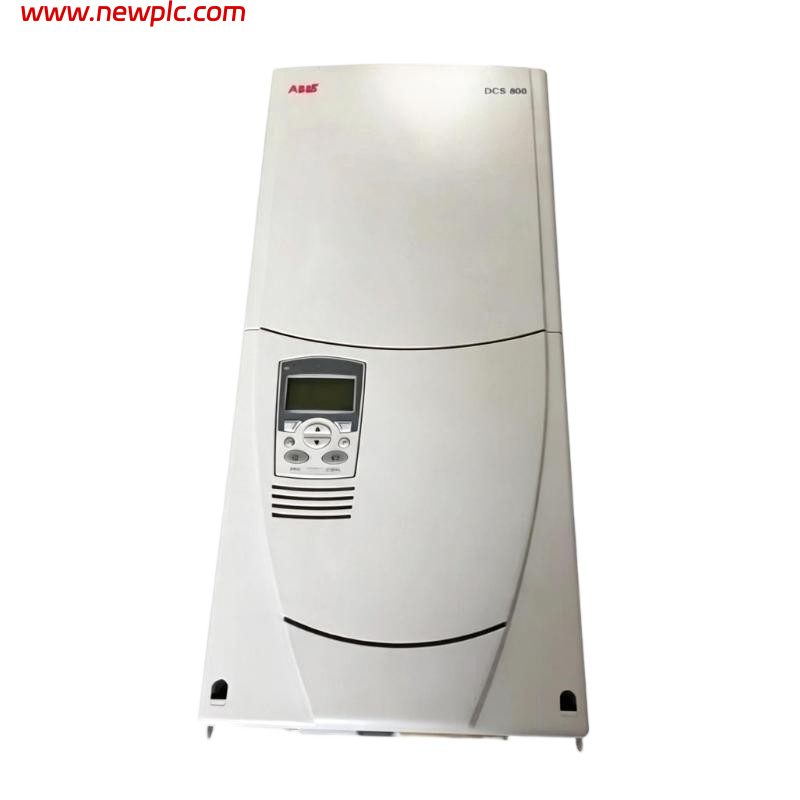

Technical Specifications

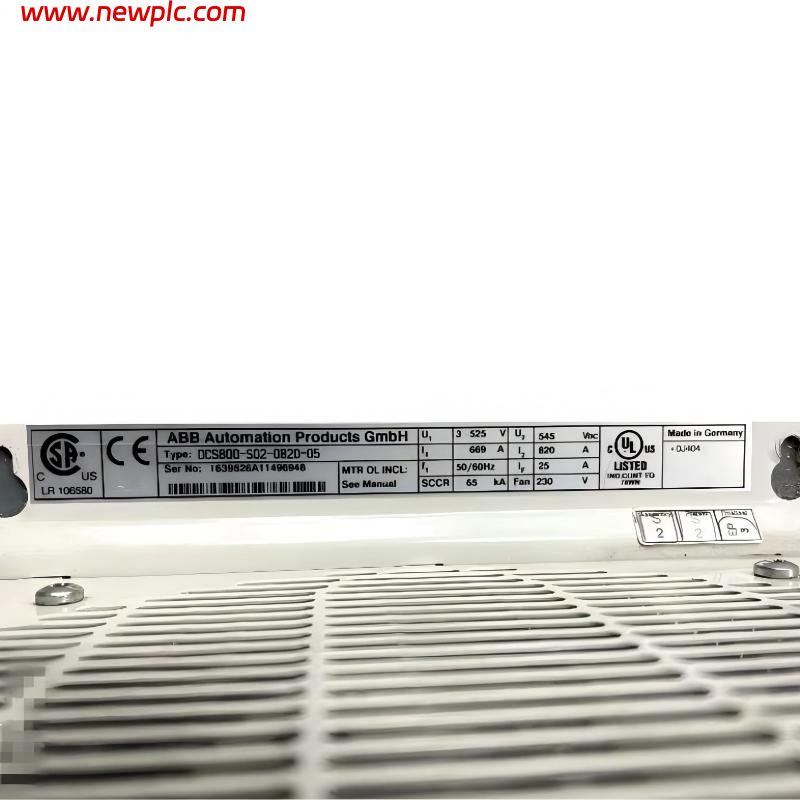

| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DCS800-S02-0820-05 |
| Part Number | 3AUA0000153659 |
| Product Type | DC Drive / DC Converter |
| Series | ABB DCS800 |
| Configuration | 4-Quadrant Reversing |
| Input Voltage | 230–525 VAC, 3-phase |
| Armature Voltage | Up to 500 VDC |
| Rated DC Output Current | 820 A class |
| Normal Duty Current | 664 A |
| Standard Duty Current | 648 A |
| Heavy Duty Current | 598 A |
| Frame Size | D4 |
| Rated Power | Approx. 500 HP at 460 VAC |
| Mounting | Wall-mounted |
| Enclosure | IP00 / Open type |
| Cooling | Forced air |
| Internal Field Current | 25 A |
| Approx. Dimensions | 625 × 270 × 345 mm |
| Approx. Net Weight | 38 kg |
| Approx. Shipping Weight | 47–50 kg |
FAQ
FAQ
Q1: What is ABB DCS800-S02-0820-05?
A: It is a high-power four-quadrant reversing DC drive for industrial DC motor applications.
Q2: What is the ABB part number?
A: The part number provided is 3AUA0000153659, corresponding to DCS800-S02-0820-05.
Q3: What is the output current?
A: The model is in the 820 A class. The ABB rating table gives 664 A normal duty, 648 A standard duty and 598 A heavy duty.
Q4: What does S02 mean?
A: S02 indicates the four-quadrant reversing configuration, supporting forward/reverse operation and regenerative braking.
Q5: What is the input voltage?
A: The drive is designed for 230–525 VAC, three-phase input.
Q6: What is the frame size?
A: It uses the D4 frame. The D4 family includes the DCS800-S02-0680, -0820 and -1000 models.
Q7: What are the dimensions and weight?
A: Approximately 625 × 270 × 345 mm, with a net weight of approximately 38 kg. For shipping, approximately 47–50 kg packed is a safer estimate.
Q8: What is the difference between DCS800-S02-0820-05 and DCS800-S02-0680-05?
A: Both are D4-frame four-quadrant drives, but the 0820 has a higher current capacity. The 0820 is rated at up to 664 A normal duty, compared with 506 A for the 0680 model.
