Technical Specifications
| Parameter | Specification |
|---|---|

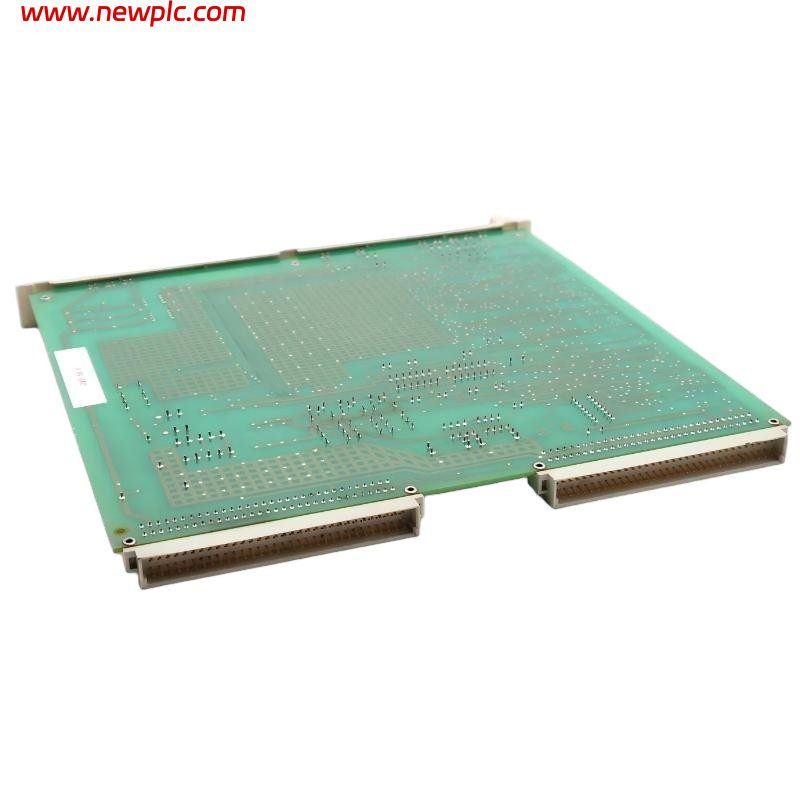

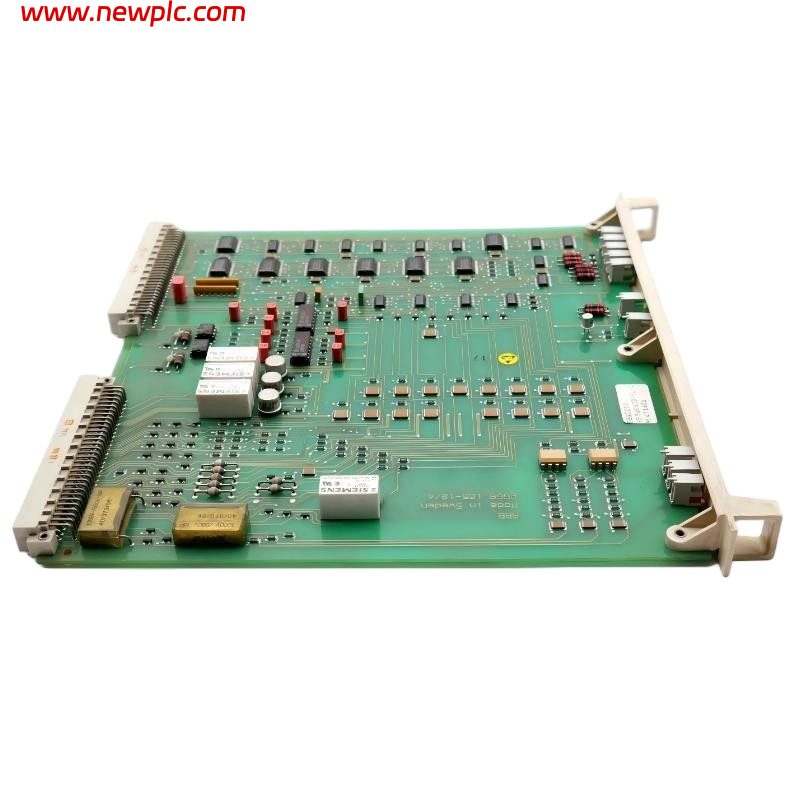

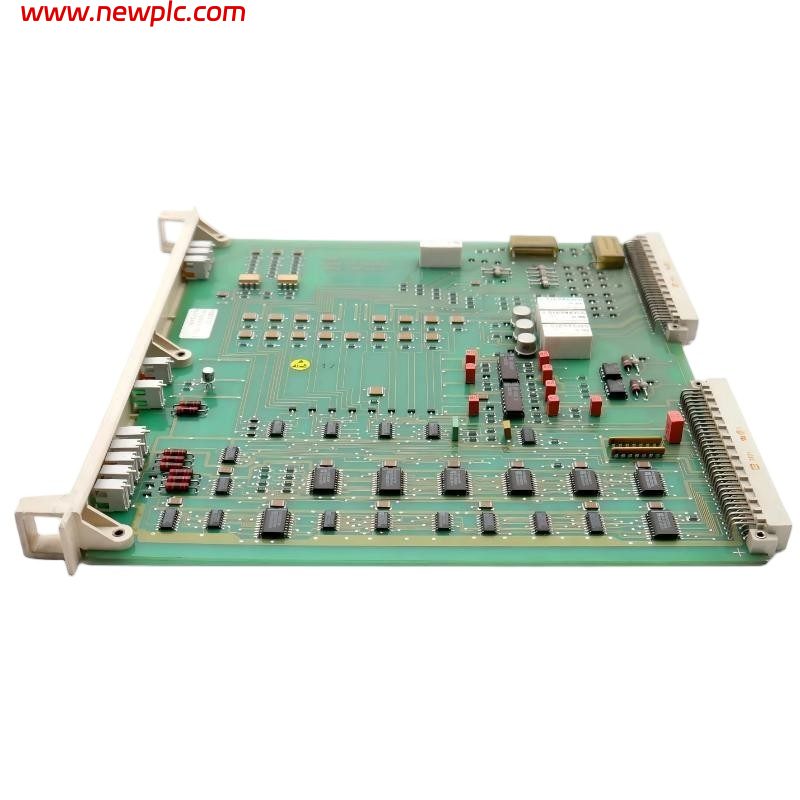

| Product Name | ABB DSQC 228 YB560103-BL/2 |
| Product Type | Robotics Safety Board / Control PCB |
| Manufacturer | ABB |
| Model Number | DSQC 228 |
| Part Number | YB560103-BL/2 |
| Application | ABB industrial robot control and safety systems |
| Function | Safety supervision and robot axis monitoring |
| System Compatibility | ABB robotic controllers and automation systems |
| Board Type | Internal control / safety PCB |
| Communication Interface | Internal backplane communication |
| Diagnostic Features | LED status indicators and fault diagnostics |
| Safety Functions | Emergency stop monitoring and system safety supervision |
| Mounting Type | Internal controller cabinet installation |
| Cooling Method | Passive cooling |
| Enclosure Type | Open PCB module |
| Supply Voltage | System-dependent internal DC supply |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 130 × 19 × 191 mm |
| Weight | Approx. 0.2 kg |
| Certifications | Industrial system dependent |
FAQ
FAQ
Q1: What is the ABB DSQC 228 YB560103-BL/2 used for?
The DSQC 228 YB560103-BL/2 is a robotics safety and control board used in ABB robot controller systems for monitoring safety circuits and robot operating status.
Q2: Which ABB systems commonly use this board?
It is commonly installed in ABB industrial robot controllers and legacy robotic automation systems.
Q3: What is the primary function of this board?
The board supervises safety-related signals, supports robot axis monitoring, and assists communication between internal controller components.
Q4: Does the module include diagnostic functions?
Yes, the board includes built-in diagnostic support through LED indicators and controller fault monitoring functions.
Q5: Is the DSQC 228 a standalone controller?
No, it is an internal PCB module designed to operate as part of a larger ABB robotic control system.
Q6: What happens if a safety fault is detected?
The controller may trigger a protective shutdown, stop robot movement, or place the system into a fault condition to ensure operator safety.
Q7: What cooling method does the board use?
The module uses passive cooling and depends on the controller cabinet ventilation system for heat dissipation.
Q8: Is this part still commonly available?
The DSQC 228 YB560103-BL/2 is mainly available through surplus inventory, refurbished stock, and industrial spare parts suppliers for maintenance of existing ABB robot systems.
