Technical Specifications
| Parameter | Specification |
|---|---|

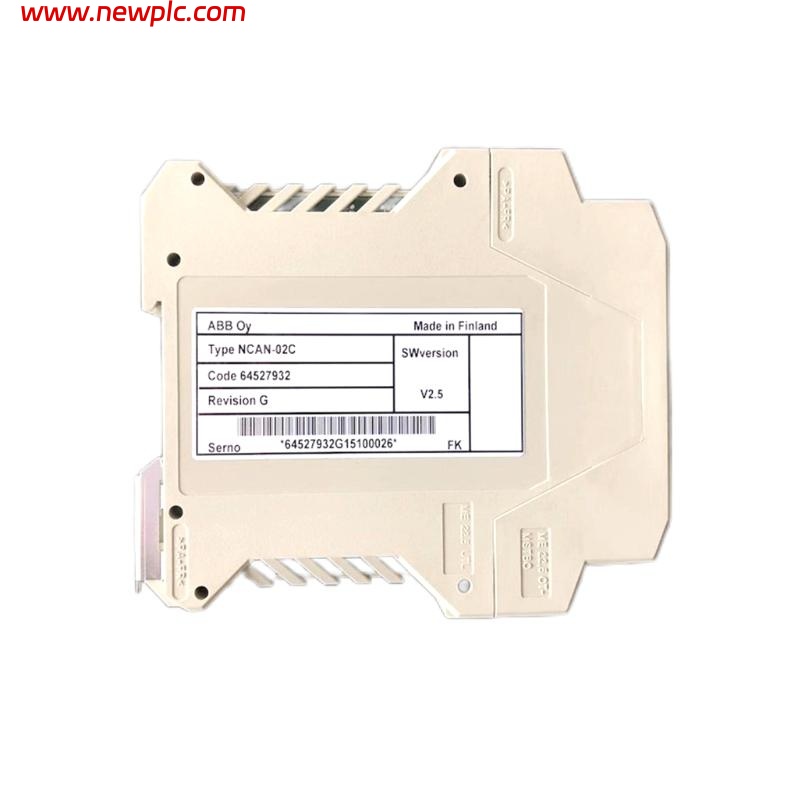

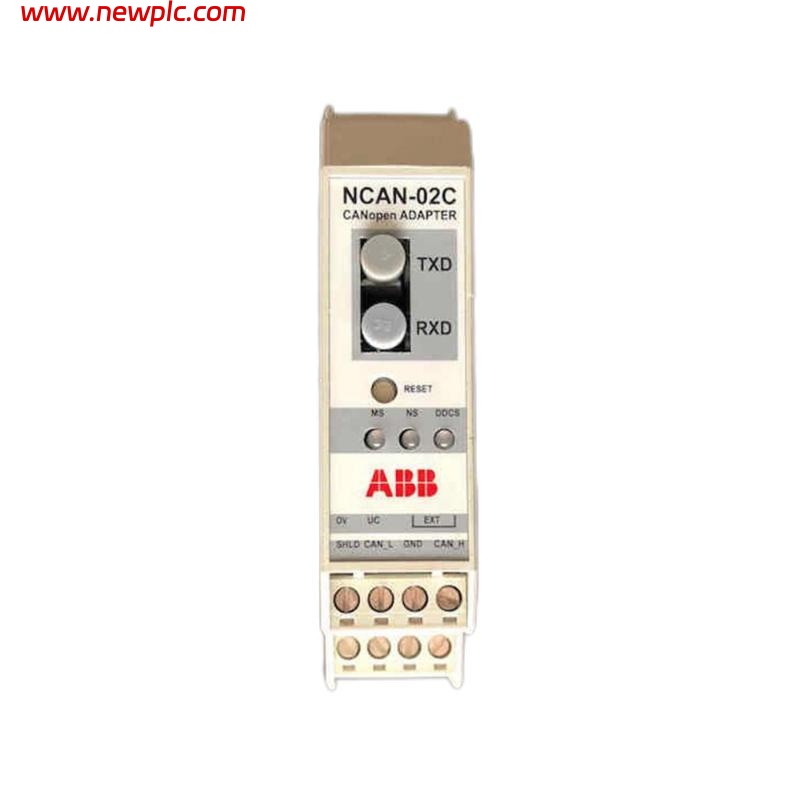

| Model Number | NCAN-02C 64286731 |
| Type | Adapter Board |
| Application | CANopen communication interface for ABB drive systems |
| Supported Protocol | CANopen DS301 and DSP402 profiles |
| Baud Rate | 10 kbps to 1 Mbps |
| Node Address Range | 1 to 127 |
| Interface Connector | 9-pin D-sub (male) |
| Bus Topology | Linear bus with termination at both ends |
| Galvanic Isolation | 500 V isolation between drive and fieldbus network |
| LED Indicators | Status indicators for RUN, ERR, and communication states |
| Power Supply | 24 V DC from drive system |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| EMC Compliance | IEC/EN 61800-3 compliant |
| Dimensions | 110 x 69 x 30 mm |
| Weight | 0.1 kg |
| Certifications | CE, RoHS |
FAQ
FAQ
Q1: What is the main function of the NCAN-02C adapter board?
A1: It provides CANopen communication capability to ABB drive systems for integration into industrial networks.
Q2: Which communication protocols does the NCAN-02C support?
A2: It supports CANopen DS301 and DSP402 profiles.
Q3: What is the maximum baud rate supported by the NCAN-02C?
A3: It supports baud rates up to 1 Mbps.
Q4: How many node addresses can be configured?
A4: The board allows node address configuration from 1 to 127.
Q5: Does the NCAN-02C provide galvanic isolation?
A5: Yes, it provides 500 V galvanic isolation between the drive and the fieldbus network.
Q6: What indicators are available on the NCAN-02C?
A6: It features LED indicators for RUN, ERR, and communication status.
Q7: Is the NCAN-02C compliant with EMC standards?
A7: Yes, it complies with IEC/EN 61800-3 EMC requirements.
Q8: What type of connector does the NCAN-02C use?
A8: It uses a 9-pin D-sub (male) connector for fieldbus connections.
