Technical Specifications
| Parameter | Specification |
|---|---|

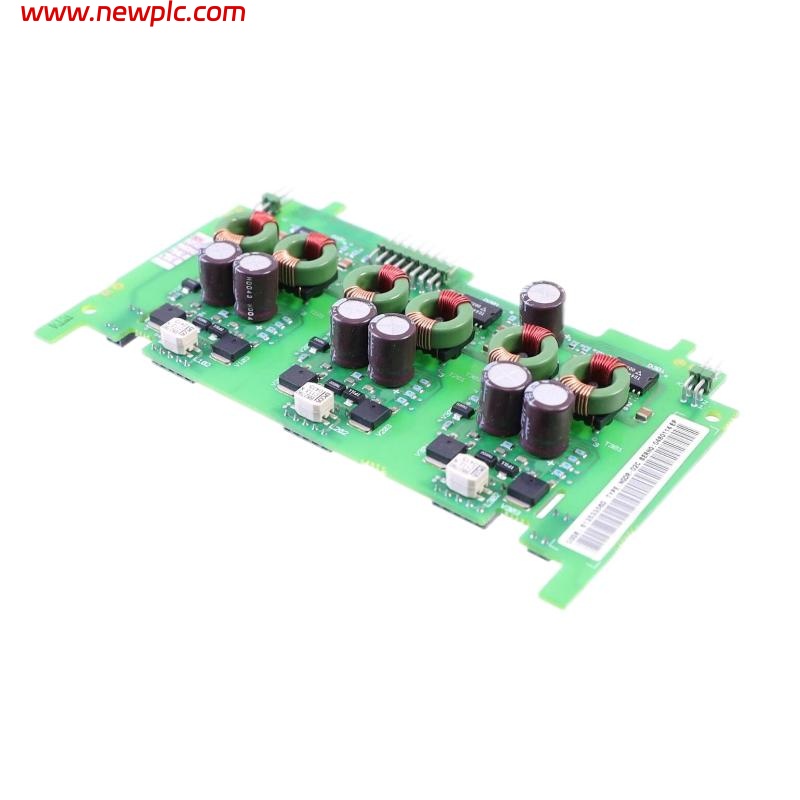

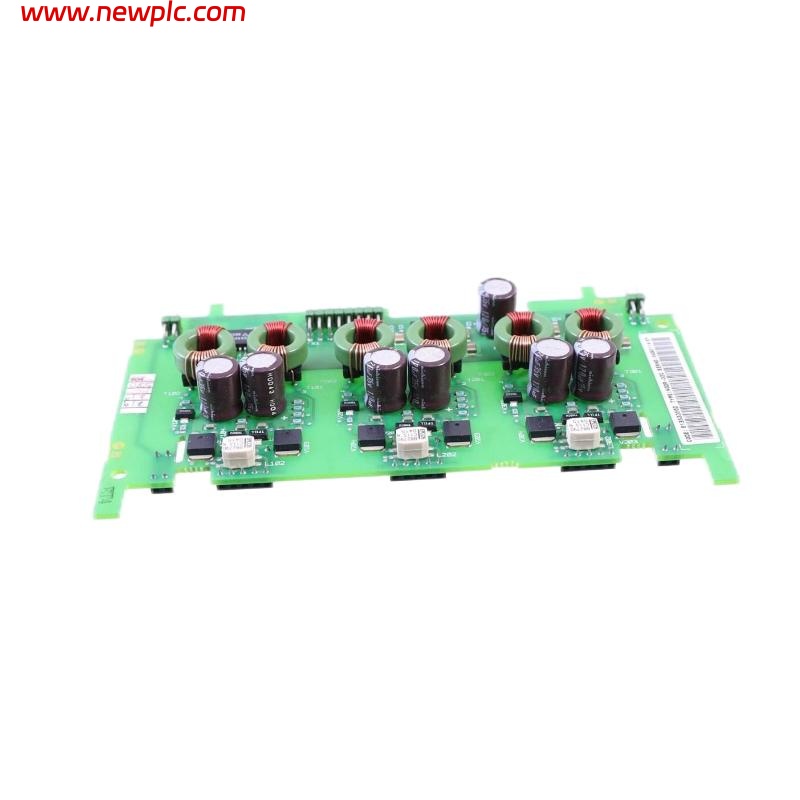

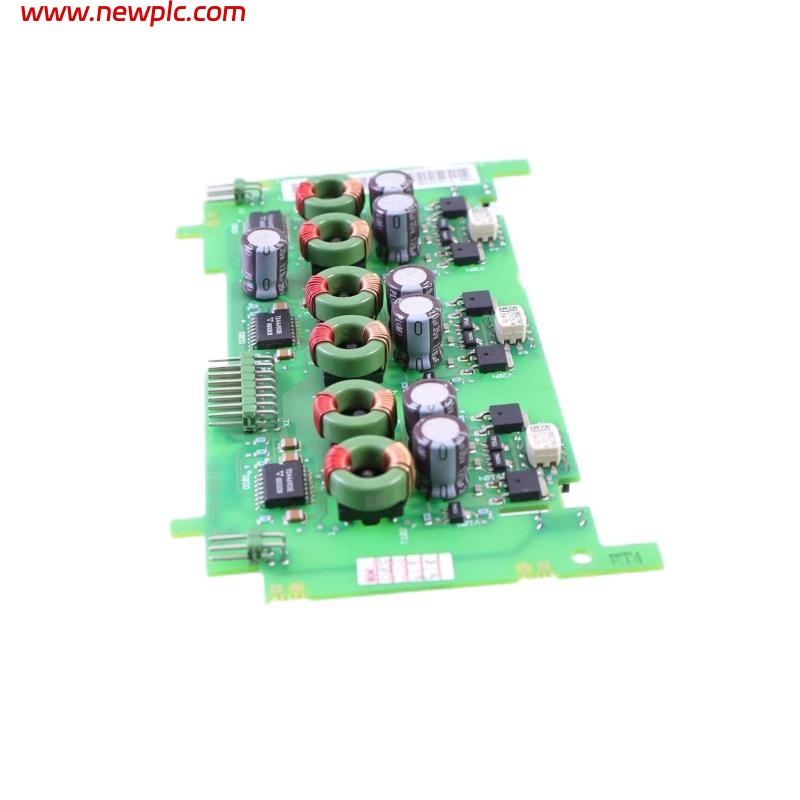

| Model Number | ABB NGDR-02C 61353356D |
| Type | Door Circuit Driver Card Kit |
| Input Voltage | 24V DC ±10% |
| Max Input Current | 2 A |
| Output Voltage | 24V DC |
| Output Current | 1 A |
| Drive Type | Gate Driver for Power Semiconductor Modules |
| Control Signal Input | TTL Compatible (High/Low Logic Level) |
| Signal Interface | Pin Header / Terminal Block |
| Response Time | < 1 μs |
| Isolation Method | Optocoupler Isolation |
| Isolation Voltage | ≥ 2.5 kVrms |
| Cooling Method | Natural Cooling |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| Dimensions | 203.2 x 152.4 x 30 mm |
| Weight | 0.76 kg |
| Certification | CE, UL |
FAQ
FAQ
-
What is the supported input voltage range?
-
The input voltage range is 24V DC ±10%.
-
-
What is the maximum input current rating?
-
The maximum input current is 2 A.
-
-
What is the maximum output current capability?
-
The maximum output current is 1 A.
-
-
What type of control signal interface is supported?
-
TTL compatible logic level input.
-
-
What is the response time of the driver card?
-
The response time is less than 1 μs.
-
-
Does the driver card provide isolation?
-
Yes, it uses optocoupler isolation.
-
-
What is the isolation withstand voltage?
-
The isolation voltage is ≥ 2.5 kVrms.
-
-
What is the cooling method for the product?
-
The product uses natural cooling.
-
