Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ABB NGDR-07C 68980127B |

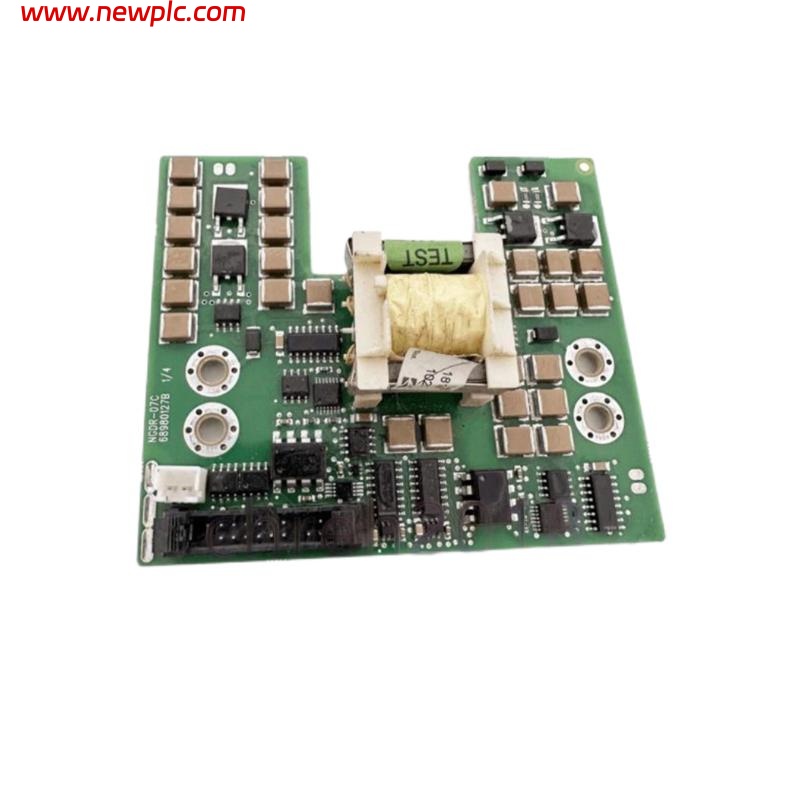

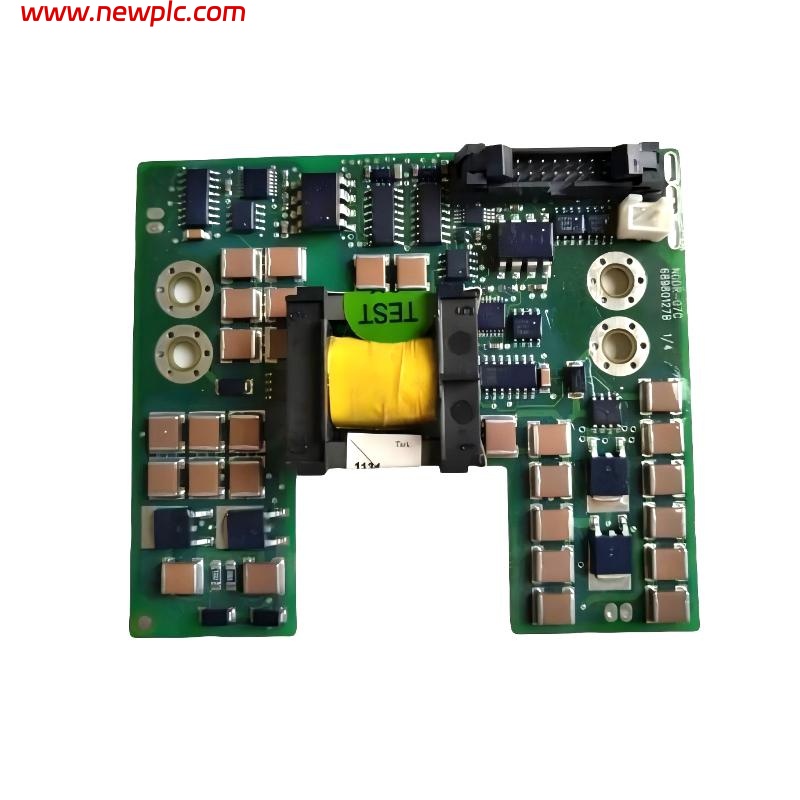

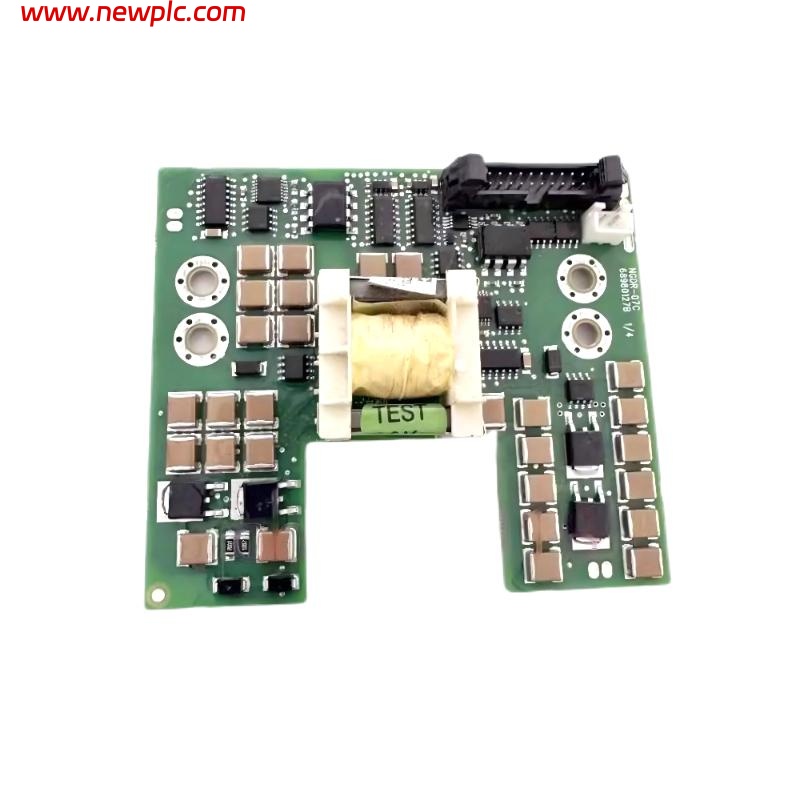

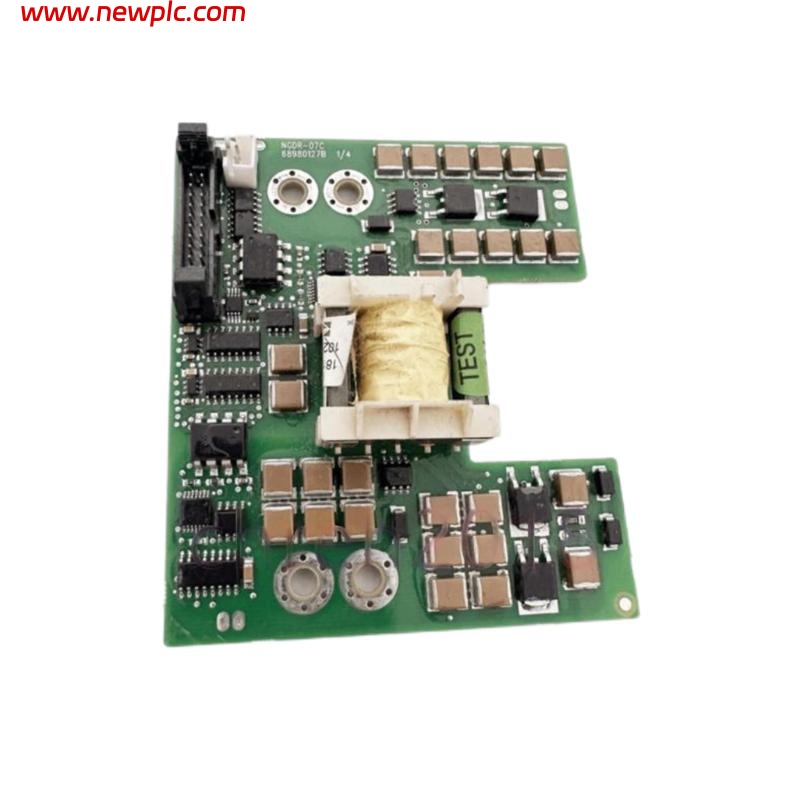

| Type | Inverter Trigger Board |
| Input Voltage | 24V DC |
| Max Input Current | 1 A |
| Output Voltage | 15V DC |
| Output Current | 0.5 A |
| Drive Type | Inverter Trigger for Power Semiconductor |
| Control Signal Input | TTL Compatible (High/Low Logic Level) |
| Signal Interface | Pin Header / Terminal Block |
| Response Time | < 1 μs |
| Isolation Method | Optocoupler Isolation |
| Isolation Voltage | ≥ 2.5 kVrms |
| Cooling Method | Natural Cooling |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| Dimensions | 159 x 149 x 20 mm |
| Weight | 0.11 kg |
| Certification | CE, UL |
FAQ
FAQ
-
What is the supported input voltage range?
-
The input voltage range is 24V DC.
-
-
What is the maximum input current rating?
-
The maximum input current is 1 A.
-
-
What is the output voltage of the board?
-
The output voltage is 15V DC.
-
-
What is the output current capability?
-
The output current is 0.5 A.
-
-
What type of control signal interface is supported?
-
TTL compatible logic level input.
-
-
Does the board provide isolation?
-
Yes, it uses optocoupler isolation.
-
-
What is the isolation withstand voltage?
-
The isolation voltage is ≥ 2.5 kVrms.
-
-
What is the cooling method for the product?
-
The product uses natural cooling.
-
