Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ABB NINT-52C 58907987J |

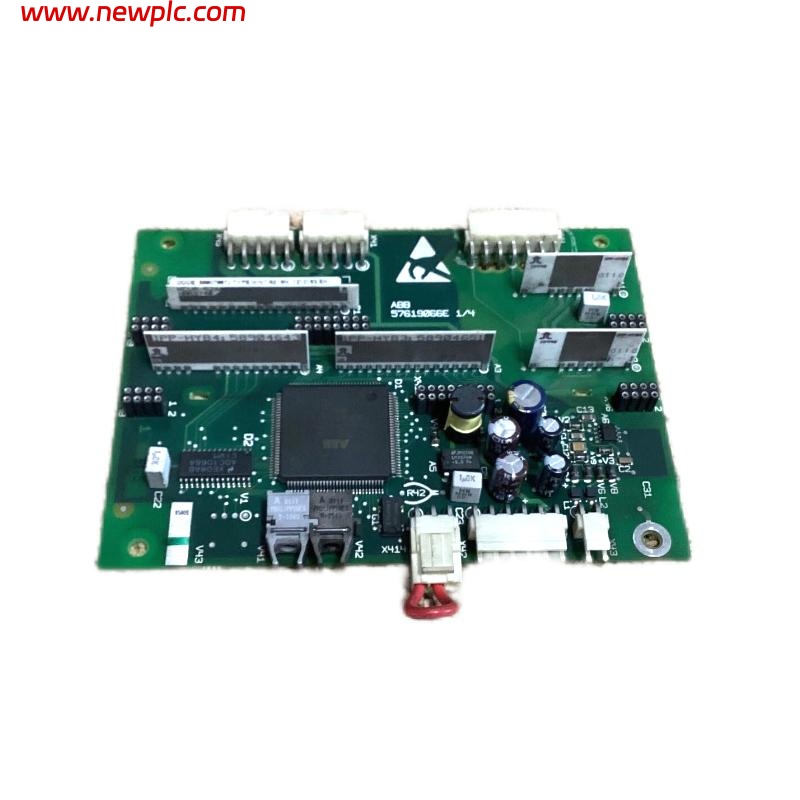

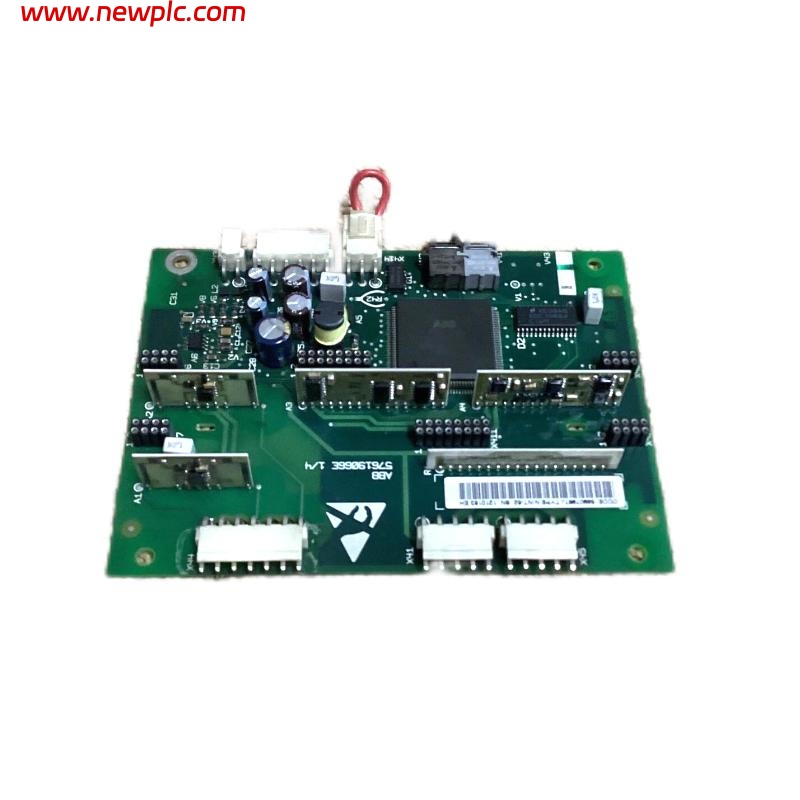

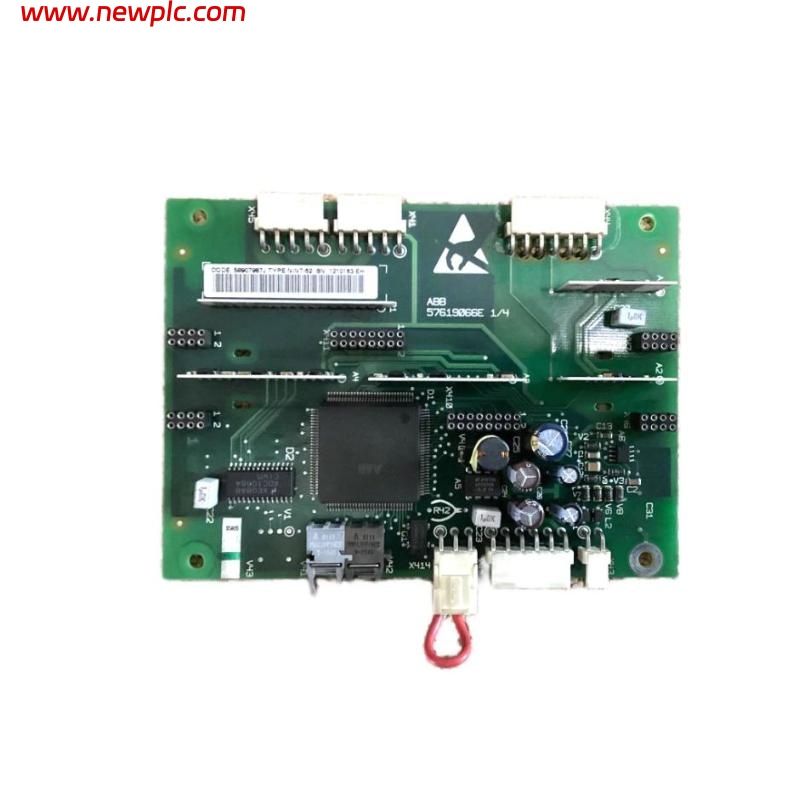

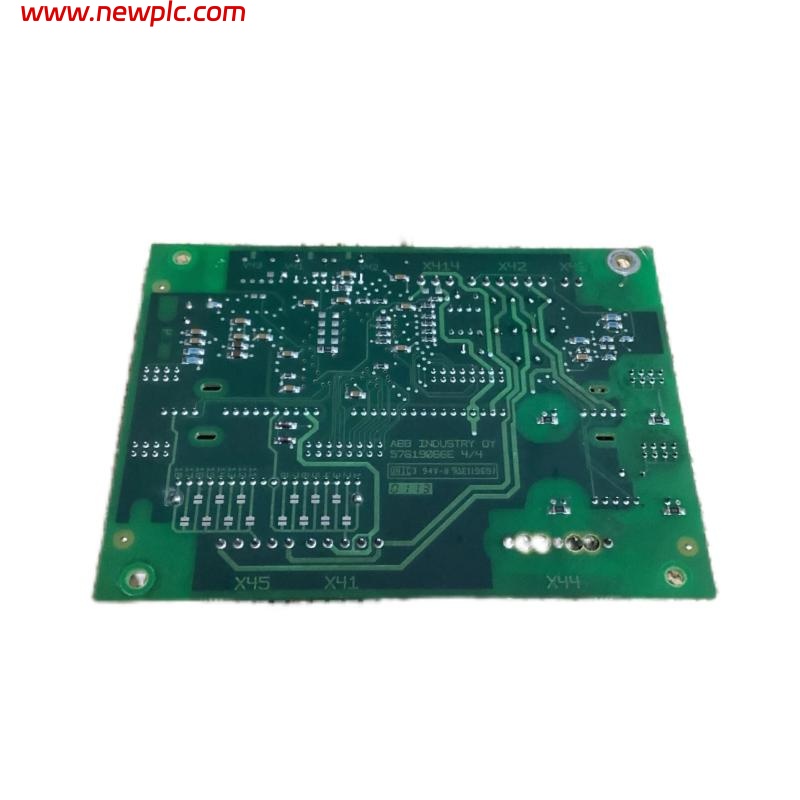

| Type | Main Interface Circuit Board |
| Input Voltage | 24V DC |
| Max Input Current | 1.5 A |
| Output Voltage | 24V DC |
| Output Current | 1 A |
| Drive Type | Main Interface for Inverter Control |
| Control Signal Input | TTL Compatible (High/Low Logic Level) |
| Signal Interface | Pin Header / Terminal Block |
| Response Time | < 1 μs |
| Isolation Method | Optocoupler Isolation |
| Isolation Voltage | ≥ 2.5 kVrms |
| Cooling Method | Natural Cooling |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| Dimensions | 180 × 150 × 40 mm |
| Weight | 0.12 kg |
| Certification | CE, UL |
FAQ
FAQ
-
What input voltage range can the board safely handle?
-
The board is designed for 24V DC input with a tolerance of ±10%.
-
-
What is the maximum current the input terminals can support?
-
The input terminals can handle up to 1.5 A.
-
-
What output voltage does the board provide for downstream circuits?
-
The board outputs a stable 24V DC for connected devices.
-
-
What is the maximum current the board can supply on its output?
-
The output current can reach up to 1 A.
-
-
Which control signal types are compatible with this board?
-
It accepts TTL logic level signals for control inputs.
-
-
Does the board provide electrical isolation for control and power circuits?
-
Yes, it uses optocoupler isolation to separate control from power sections.
-
-
What is the withstand voltage of the board’s isolation?
-
The isolation can handle voltages of at least 2.5 kVrms.
-
-
How is heat managed on this interface board?
-
The board uses natural convection cooling without external fans.
-
