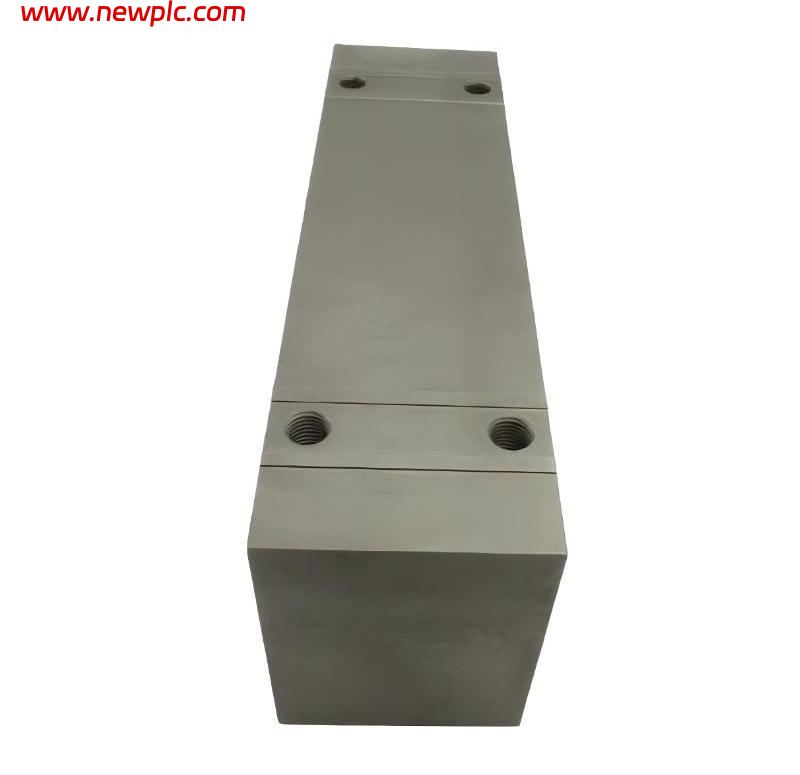

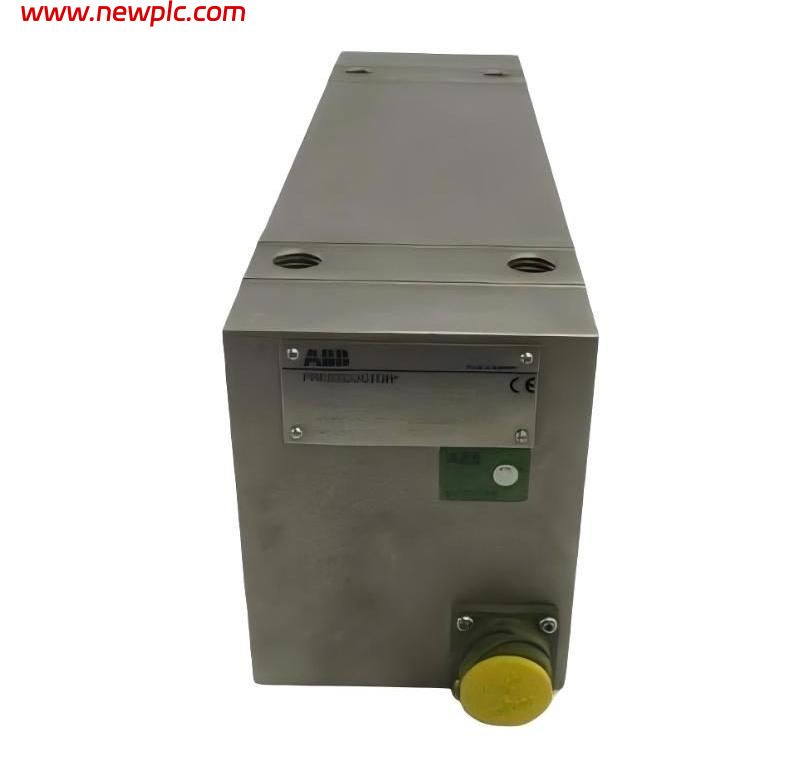

ABB PFCL 101B 3BSE004191R1 Load Cell

FAQ

Q1: What is ABB 3BSE004191R1?
A: It is an ABB PFTL 101B Pressductor load cell used for horizontal force and strip-tension measurement.

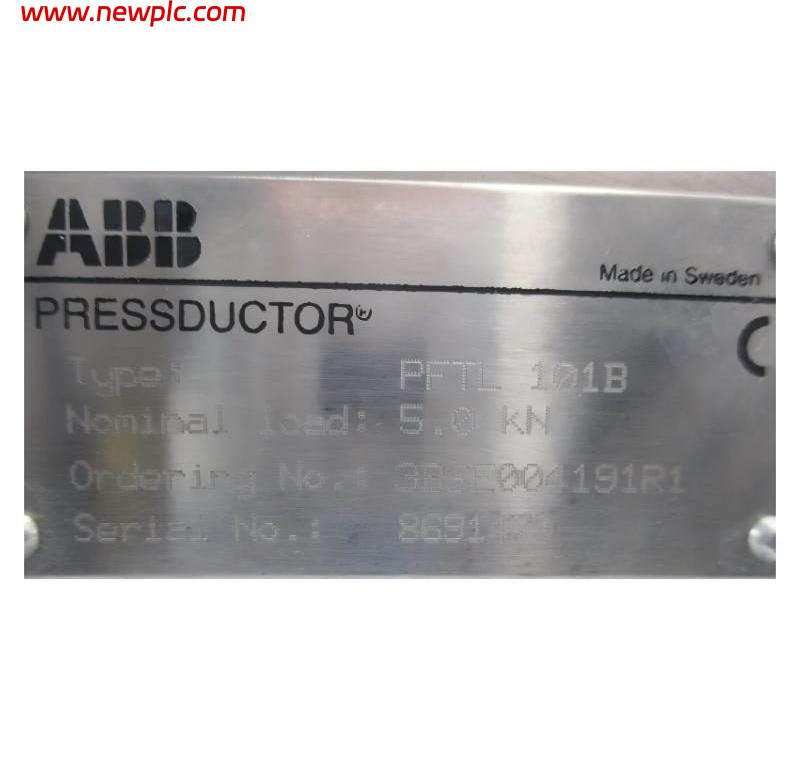

Q2: What is the rated load of 3BSE004191R1?
A: The nominal load is 5.0 kN. ABB’s official ordering table directly associates 3BSE004191R1 with the PFTL 101B 5.0 kN version.

Q3: What is the measurement direction?
A: The PFTL 101B is designed for horizontal force measurement, making it suitable for tension measurement where the main force component is horizontal.

Q4: What is the Pressductor principle?
A: Pressductor is ABB’s magnetoelastic measurement technology. Mechanical force changes the magnetic properties of the sensor element, allowing the resulting signal to be used for force or tension measurement.

Q5: Where is the PFTL 101B commonly used?
A: Typical applications include metal processing, rolling mills and continuous strip/web-processing lines, particularly where heavy rolls, low tension and high operating speeds are involved.

Q6: What are the dimensions of 3BSE004191R1?
A: The listed dimensions are approximately 450 × 110 × 124.6 mm.

Q7: How much does the PFTL 101B weigh?
A: The listed net/product weight is approximately 21 kg.

Q8: What cable is normally used with this load cell?
A: ABB documentation lists the 3BSE018741 cable family for PFTL 101/201 and PFCL 201 load cells. For example, a 30 m cable is 3BSE018741R30.

3BSE004191R1 ABB PFCL 101B
