ABB PFCL 201CE 3BSX802939-108 Load Cell

FAQ

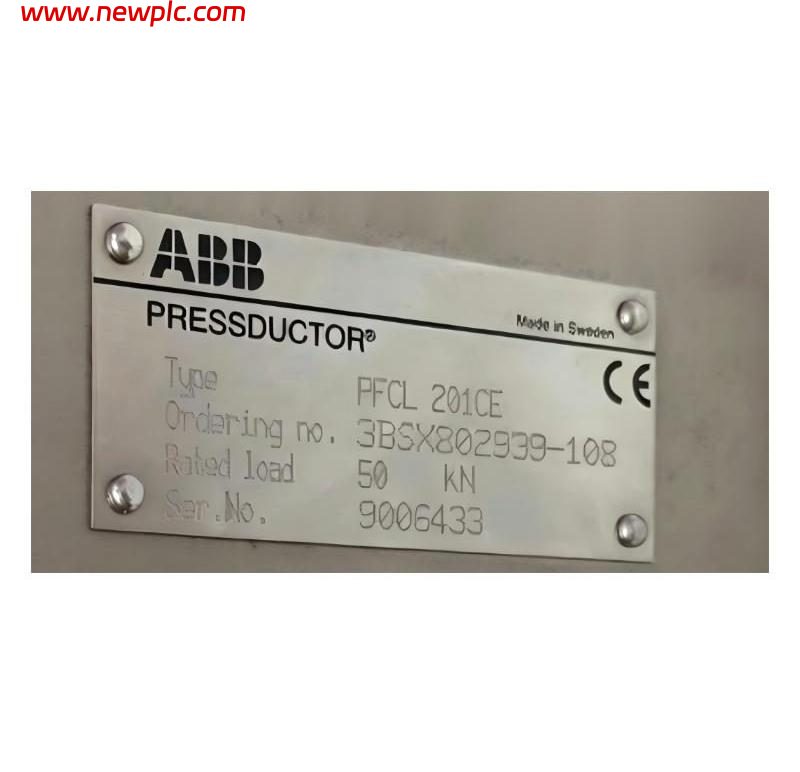

Q1: What is ABB 3BSX802939-108?
A: It is an ABB PFCL 201CE load cell designed for vertical force measurement and strip-tension applications.

Q2: What is the rated load of PFCL 201CE 3BSX802939-108?
A: The nominal rated load is 50 kN. The extended load for this version is listed as 75 kN.

Q3: What measurement direction does the PFCL 201CE use?
A: It measures vertical force. The load cell is normally installed beneath a roll bearing, where the vertical reaction force is measured.

Q4: What measurement principle does it use?
A: It uses ABB’s Pressductor® magnetoelastic measurement principle. Mechanical stress changes the magnetic properties of the sensing material, producing the measurement signal.

Q5: Where is the PFCL 201CE commonly used?
A: Typical applications include rolling mills and strip-processing lines, such as annealing, pickling and galvanizing lines, where vertical force is useful for determining strip tension.

Q6: What are the dimensions of 3BSX802939-108?
A: The listed dimensions are approximately 450 × 110 × 124.6 mm. The PFCL 201C/201CE/201CD variants share the same external dimensions according to product documentation.

Q7: What is the difference between PFCL 201C and PFCL 201CE?

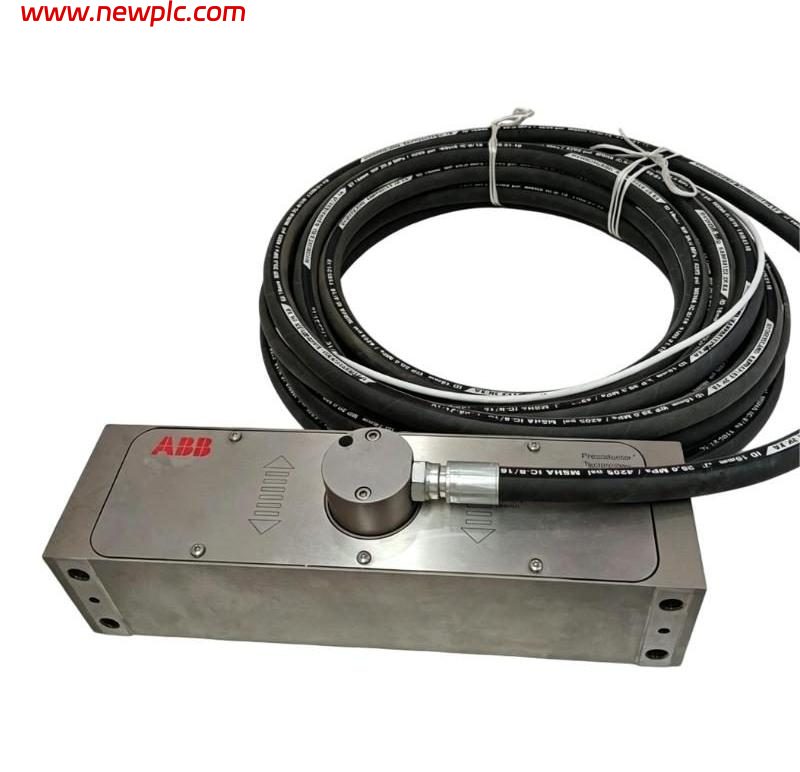

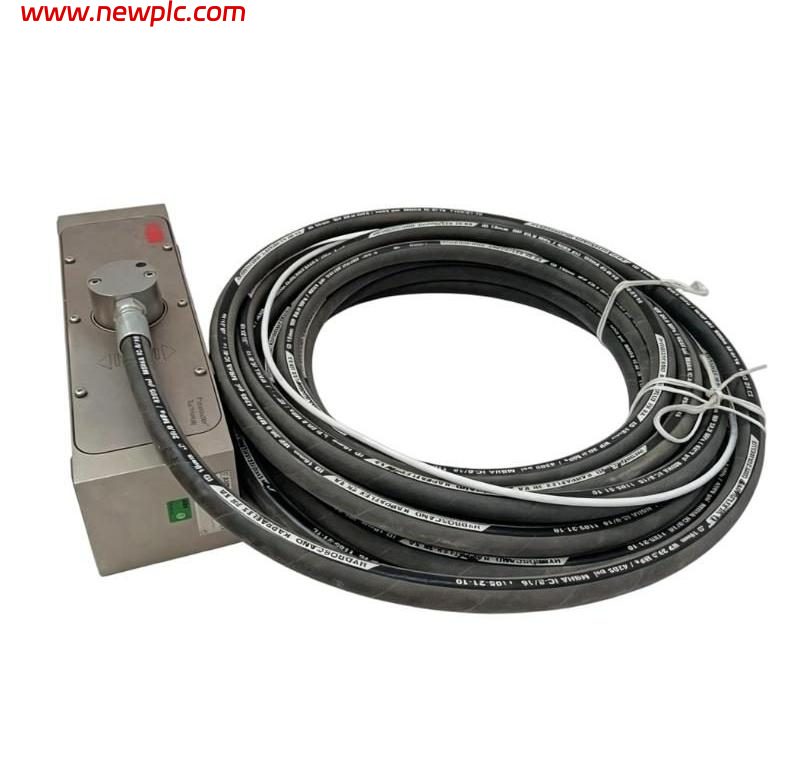

A: The main difference is the cable connection. PFCL 201C uses a connector for a pluggable cable, while PFCL 201CE has a fixed connection cable with a protective hose.

Q8: Is 3BSX802939-108 suitable for strip tension control?
A: Yes. A complete measurement system normally uses load cells together with a junction box, control unit and cabling. The load-cell signals provide the force feedback required for strip-tension monitoring and control.

3BSX802939-108 ABB PFCL 201CE
