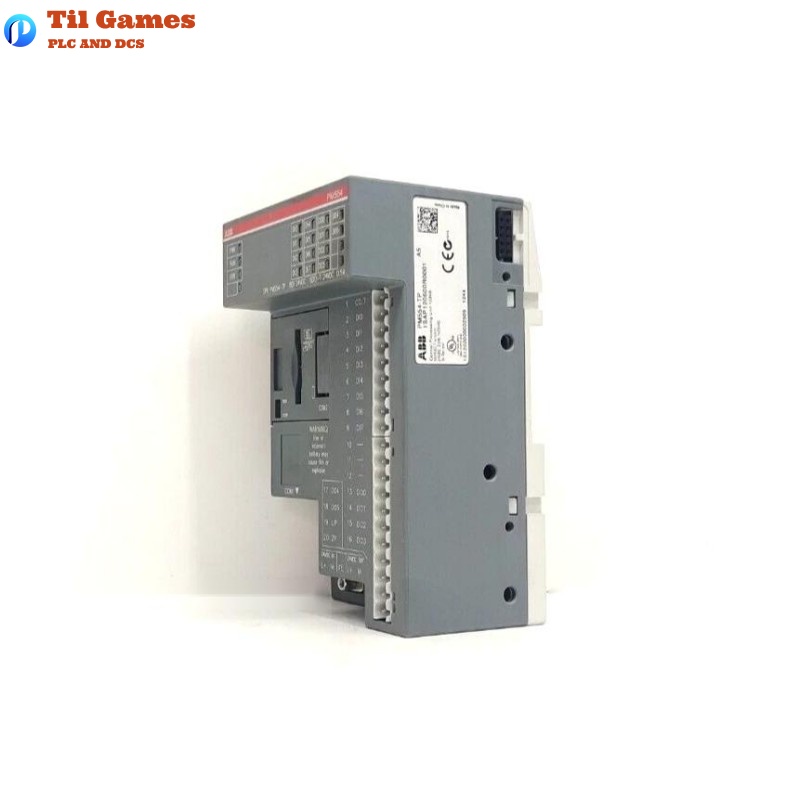

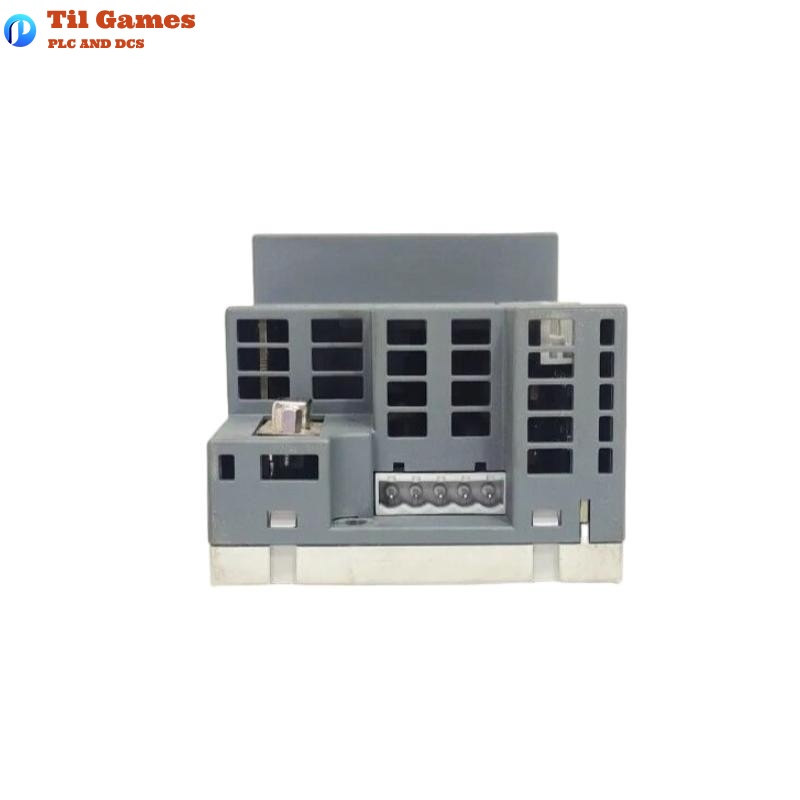

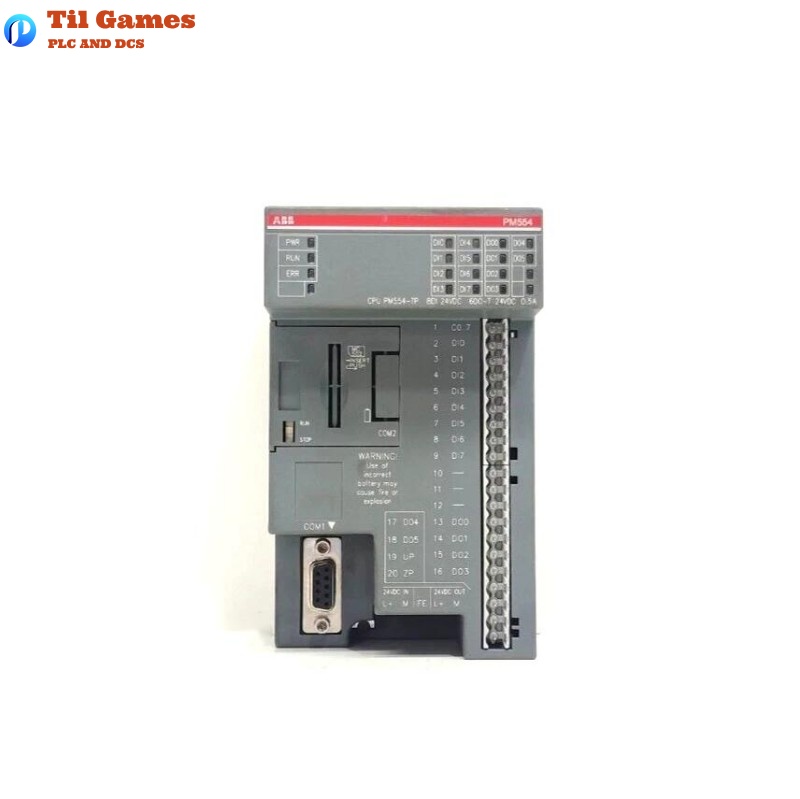

Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PM554-TP |
| Part Number | 1SAP120600R0001 |
| Program Memory | 128 kB Flash EPROM |
| Data Memory | 10 kB VAR, 1 kB VAR_RETAIN, 1 kB %RB, 2 kB %MB |
| Digital Inputs (DI) | 8 |
| Digital Outputs (DO) | 6 Transistor Outputs |
| Power Supply Voltage | 24 V DC |
| Max. Power Dissipation | 3.0 W |
| Typical Current Consumption | 60 mA at 24 V DC |
| Max. Current Consumption | 180 mA at 24 V DC |
| Inrush Current (Typ.) | 3.9 A²s |
| Fuse Requirement | 3 A fast (max. 10 A) |
| Processor | Freescale ARM 32-bit, 50 MHz |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Cycle Time (1000 Instructions) | 0.08 ms (Binary), 0.1 ms (Word), 1.2 ms (Float) |
| Interfaces | I/O Bus, COM1 (RS-485), Optional COM2 |
| COM1 Connector | 9-pin D-sub, no galvanic isolation |
| Mounting Position | Horizontal or Vertical |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +60°C (horizontal) / 0°C to +40°C (vertical) |
| Storage Temperature | -40°C to +70°C |
| Humidity | Max. 95%, non-condensing |
| Vibration Resistance | 2–8.4 Hz: 3.5 mm; 8.4–150 Hz: 1 g (IEC 60068-2-6) |
| Shock Resistance | 15 g, 11 ms (IEC 60068-2-27) |
| Dimensions (W × H × D) | 74 × 135 × 82 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What programming languages are supported by ABB PM554-TP?
A1: The supported languages are IL, FBD, LD, SFC, ST, and CFC.
Q2: What is the maximum power dissipation of the PM554-TP module?
A2: It has a maximum power dissipation of 3.0 W.
Q3: What input voltage does the PM554-TP support?
A3: It supports 24 V DC power supply.
Q4: What communication interfaces are available on the PM554-TP?
A4: It offers I/O bus, COM1 (RS-485 with D-sub), and an optional COM2.
Q5: How many digital inputs and outputs does it have?
A5: It provides 8 digital inputs and 6 transistor-type digital outputs.
Q6: What is the operating temperature range for the PM554-TP?
A6: 0°C to +60°C for horizontal mounting, and 0°C to +40°C for vertical mounting (with reduced load).
Q7: What accessories are available for this module?
A7: Accessories include MC503 memory card, TA561-RTC real-time clock, and TA562-RS or TA569-RS-ISO serial modules.
Q8: What are the dimensions and weight of the PM554-TP?
A8: The dimensions are 74 × 135 × 82 mm, and the weight is 0.3 kg.
