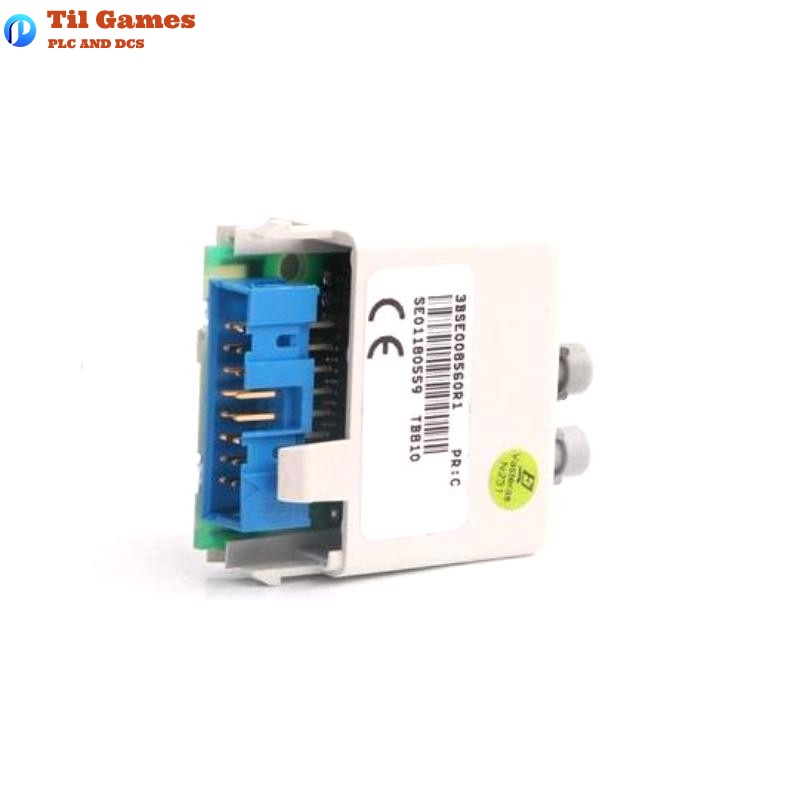

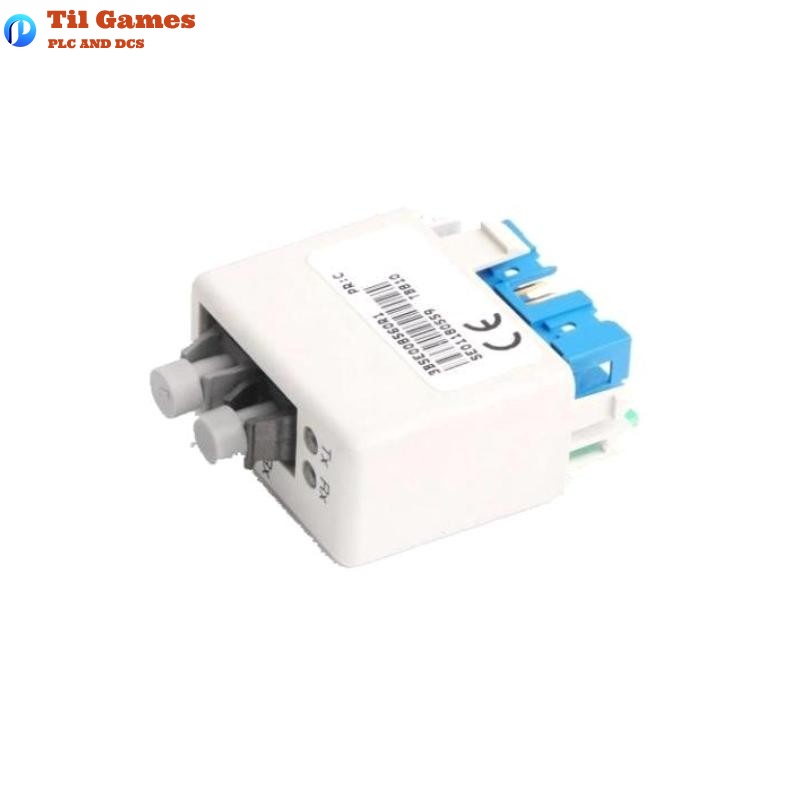

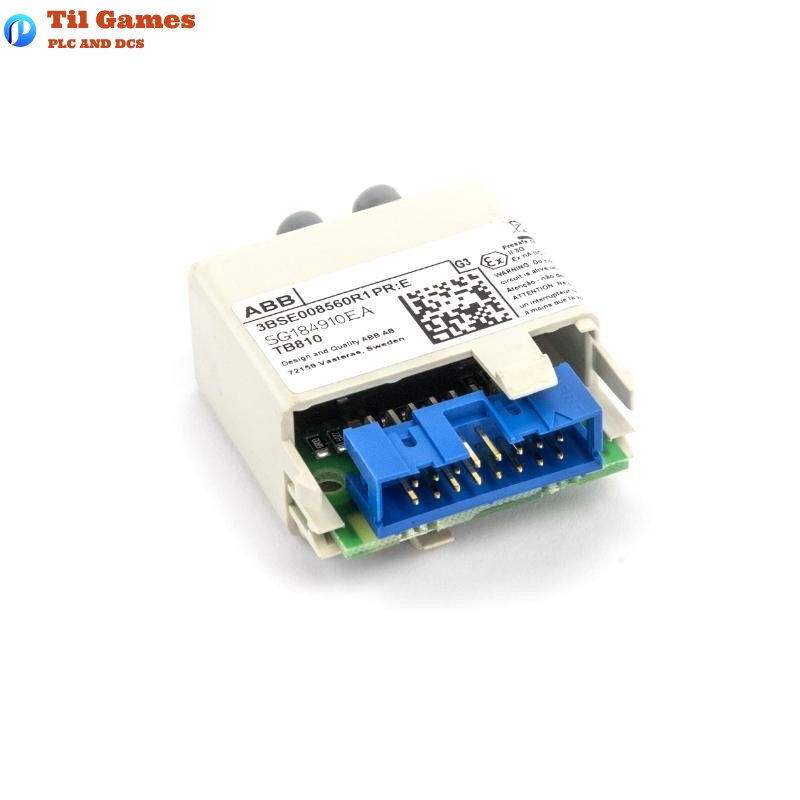

ABB TB810 3BSE008560R1 Modulebus Optical Port

FAQ

Frequently Asked Questions

Q1: What is the main application of TB810?
A1: TB810 is mainly used for optical communication between S800 I/O modules, especially in applications requiring long-distance or high-interference immunity.

Q2: What types of fiber does TB810 support?
A2: TB810 supports both POF (Plastic Optical Fiber) and HCS (Hard Clad Silica) fibers.

Q3: What is the maximum communication distance for TB810?
A3: Up to 200 meters directly, and up to 5,000 meters when used with the TB826 optical converter.

Q4: Does TB810 support hot swapping?
A4: Yes, TB810 supports hot swapping, allowing it to be replaced without powering down the system.

Q5: Is TB810 capable of redundant communication?
A5: TB810 itself does not provide redundancy, but can be used in systems with redundant interfaces like TB815 and CI820.

Q6: What are the environmental conditions for TB810?
A6: Operating temperature: +5 to +55°C; Storage temperature: -40 to +70°C; Relative humidity: 5–95%, non-condensing.

Q7: Does TB810 have a protection rating?
A7: Yes, it has an IP20 protection rating and is intended for use inside control cabinets.

Q8: Is TB810 certified for industrial safety standards?
A8: Yes, it complies with CE, UL508, ATEX Zone 2, RoHS, and other industrial safety standards.
