Technical Specifications
| Parameter | Specification |
|---|---|

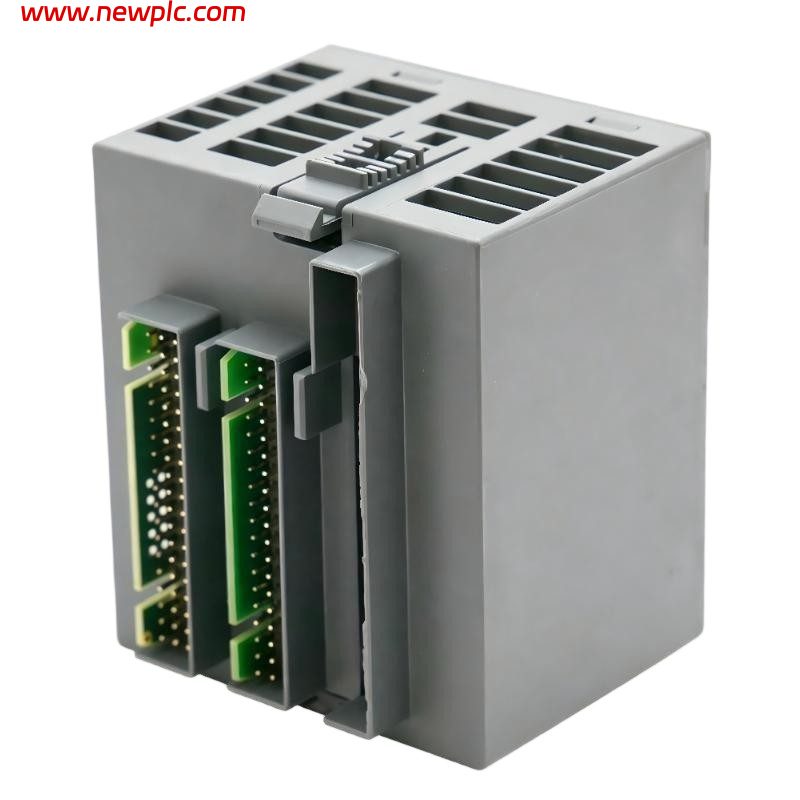

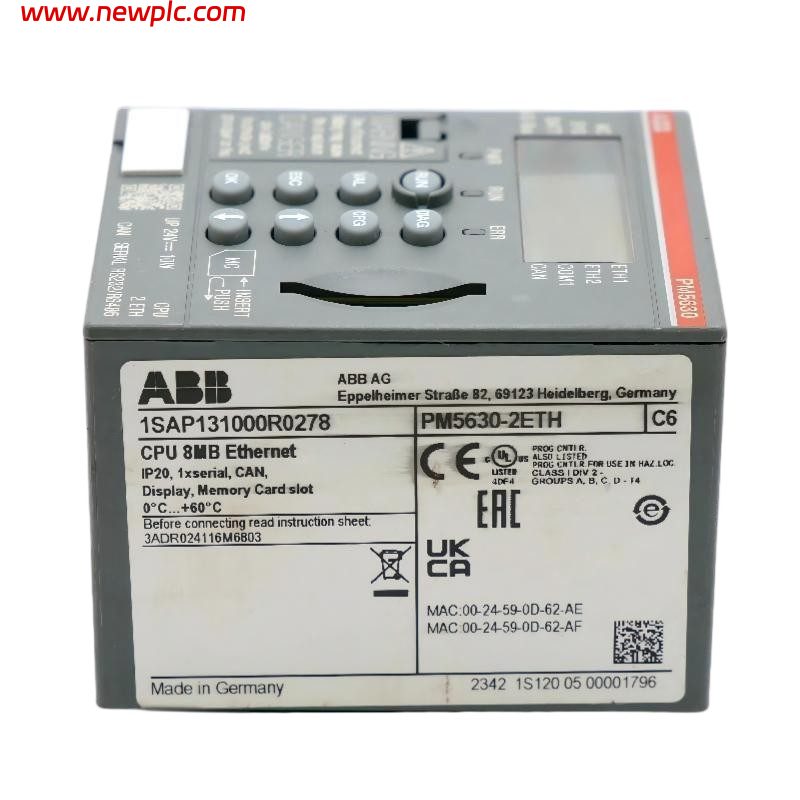

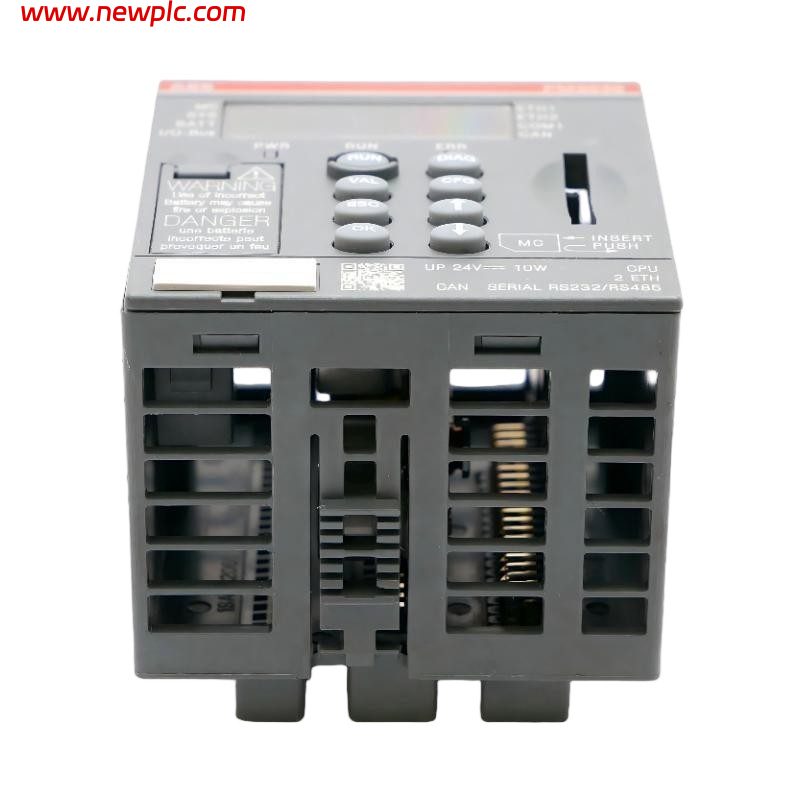

| Product Name | ABB PM5630-2ETH |
| Product ID | 1SAP131000R0278 |
| Manufacturer | ABB |
| Product Type | PLC Processor Module (AC500) |
| Series | ABB AC500 |
| Function | High-performance PLC CPU for industrial automation and machine control |
| Memory | 8 MB program memory |
| Data Memory | 256 kB retain memory (typical AC500 V3 architecture) |
| Digital Inputs | System-dependent via expansion modules |
| Digital Outputs | System-dependent via expansion modules |
| Communication Interfaces | 2 × Ethernet, RS232/RS485, CAN |
| Protocol Support | Modbus TCP/IP, Modbus RTU, CANopen, Ethernet-based communication |
| Display | Integrated LCD display with function keys for diagnostics |
| Expansion Capability | Supports up to multiple I/O and communication modules |
| Power Supply | 24 V DC |
| Programming Software | ABB Automation Builder |
| Protection Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% – 95% non-condensing |
| Cooling Method | Natural convection |
| Dimensions (H × W × D) | Approx. 62 × 67.5 × 76 mm |
| Weight | Approx. 0.134 kg |
| Application | Industrial automation, machine control, process control, networked control systems |
| Country of Origin | Germany / Finland (varies by production batch) |
FAQ
FAQ
Q1: What is the ABB PM5630-2ETH used for?
It is a PLC CPU module used in ABB AC500 systems for industrial automation, machine control, and process applications.
Q2: What communication interfaces does it provide?
It includes 2 Ethernet ports, RS232/RS485 serial communication, and a CAN interface.
Q3: Does it support industrial protocols?
Yes, it supports Modbus TCP/IP, Modbus RTU, CANopen, and other Ethernet-based industrial communication protocols.
Q4: What is the memory capacity of this PLC?
It has 8 MB program memory and retain memory for storing critical process data.
Q5: Does it include a display?
Yes, it has an integrated LCD display with function keys for diagnostics and status monitoring.
Q6: Can it be expanded with additional modules?
Yes, it supports multiple AC500 I/O and communication expansion modules.
Q7: What software is used for programming?
ABB Automation Builder is used for configuration, programming, and diagnostics.
Q8: What industries commonly use this module?
It is widely used in manufacturing automation, machine control systems, process industries, and networked industrial control applications.
