Technical Specifications
| Parameter | Specification |
|---|---|

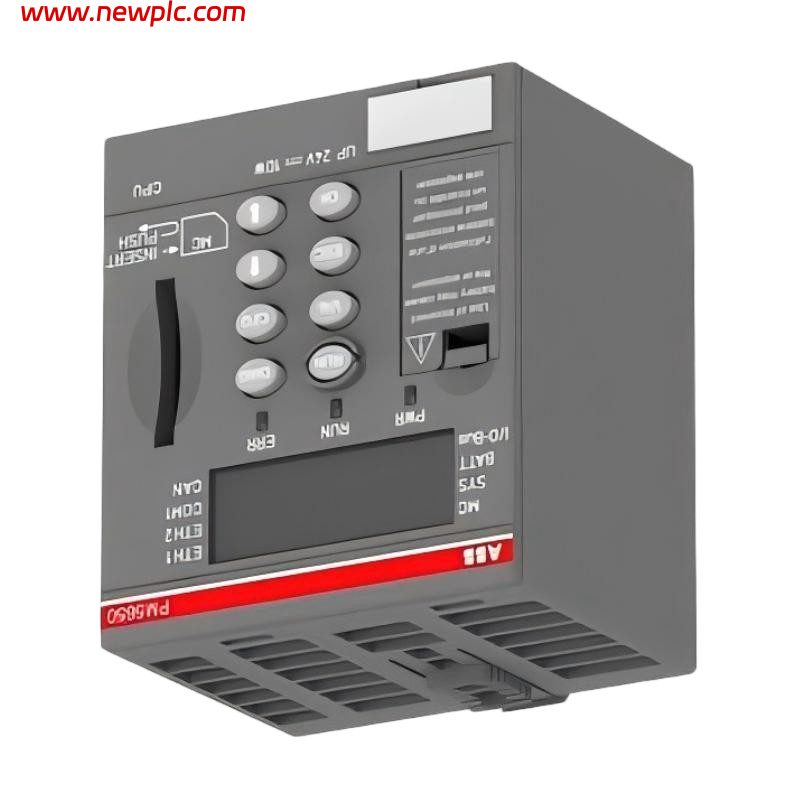

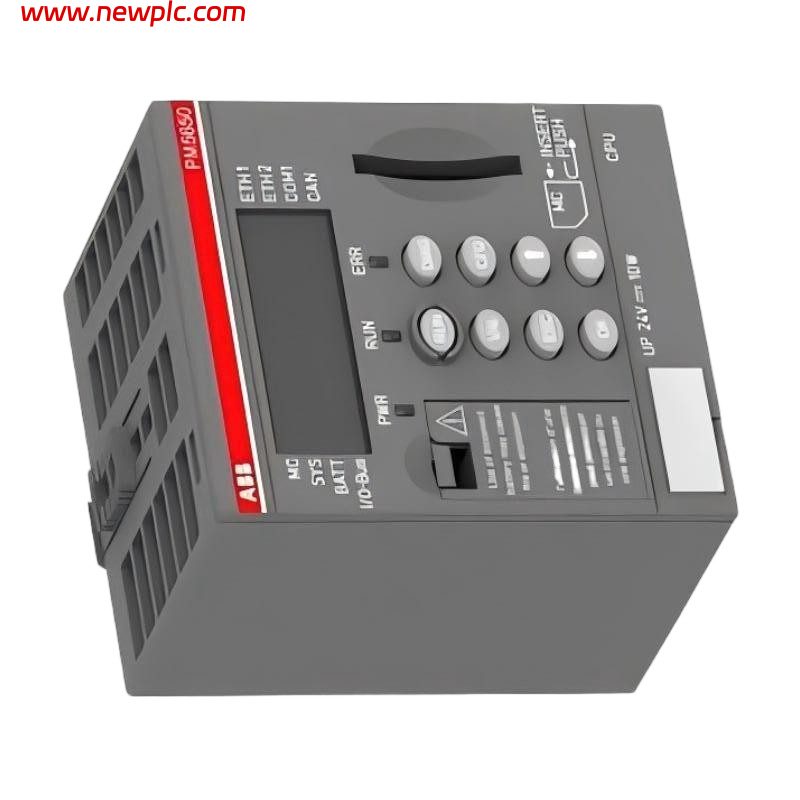

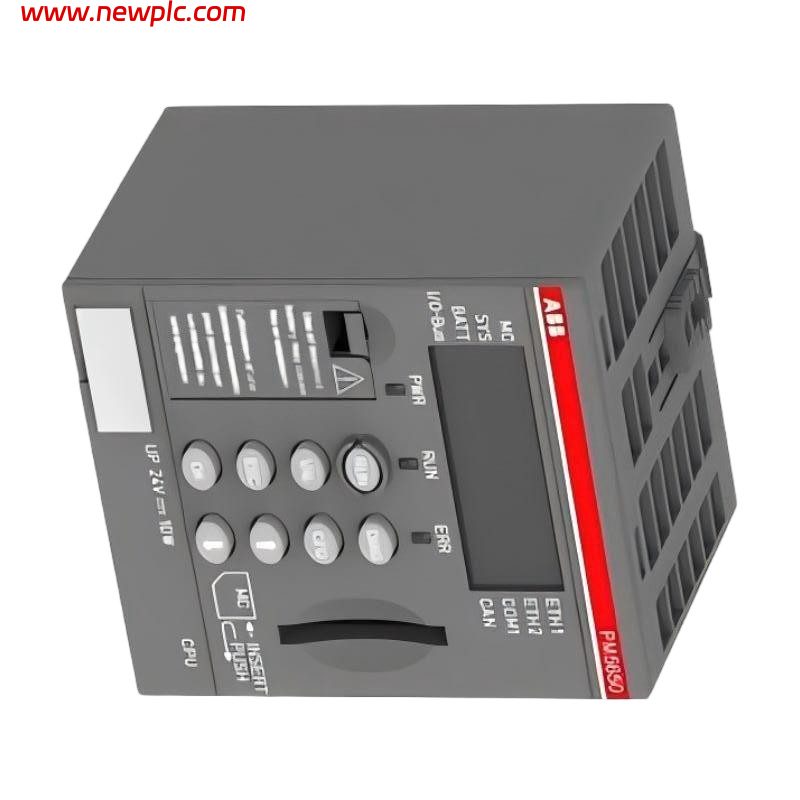

| Product Name | ABB PM5650-MC-KIT |
| Product ID | 1SAP141000R0379 |
| Manufacturer | ABB |
| Product Type | Motion Control PLC Kit (AC500 V3) |
| Series | ABB AC500 Motion Control System |
| Function | PLC + motion control system kit for industrial automation |
| Included Modules | PM5650-2ETH, CM579-ETHCAT, TB5610-ETH, PS5611-MC |
| CPU Type | PM5650-2ETH processor module |
| Motion Control | PLCopen-based motion control support |
| Communication Interfaces | 2 × Ethernet, EtherCAT, CAN, serial interfaces |
| Protocol Support | EtherCAT, Modbus TCP/IP, CANopen |
| Memory | Approx. 369 MB RAM (system-dependent configuration) |
| Power Supply | 24 V DC (20.4 – 28.8 V DC range) |
| Programming Software | ABB Automation Builder |
| Protection Rating | IP20 |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Cooling Method | Natural convection |
| Application | Motion control systems, robotics, packaging machines, industrial automation |
| Country of Origin | China / Germany (varies by production batch) |
| Dimensions (H × W × D) | Approx. 110 × 180 × 250 mm |
| Weight | Approx. 0.363 kg |
FAQ
FAQ
Q1: What is the ABB PM5650-MC-KIT used for?
It is a complete motion control PLC kit used for industrial automation systems requiring synchronized multi-axis control.
Q2: What components are included in the kit?
It typically includes PM5650-2ETH CPU, CM579-ETHCAT communication module, TB5610-ETH terminal base, and PS5611-MC power module/license.
Q3: Does it support EtherCAT communication?
Yes, it includes EtherCAT support for real-time motion control applications.
Q4: What software is used for programming?
ABB Automation Builder is used for configuration, PLC programming, and motion setup.
Q5: Is this suitable for robotics applications?
Yes, it is commonly used in robotics, packaging lines, conveyor systems, and machine automation.
Q6: Can it be expanded with additional modules?
Yes, it supports AC500 I/O and communication expansion modules.
Q7: What is the power supply requirement?
It operates on 24 V DC within a 20.4–28.8 V DC range.
Q8: What makes it different from standard PLC CPUs?
It integrates motion control capabilities and dedicated EtherCAT communication for synchronized multi-axis control tasks.
