Technical Specifications
| Parameter | Specification |
|---|---|

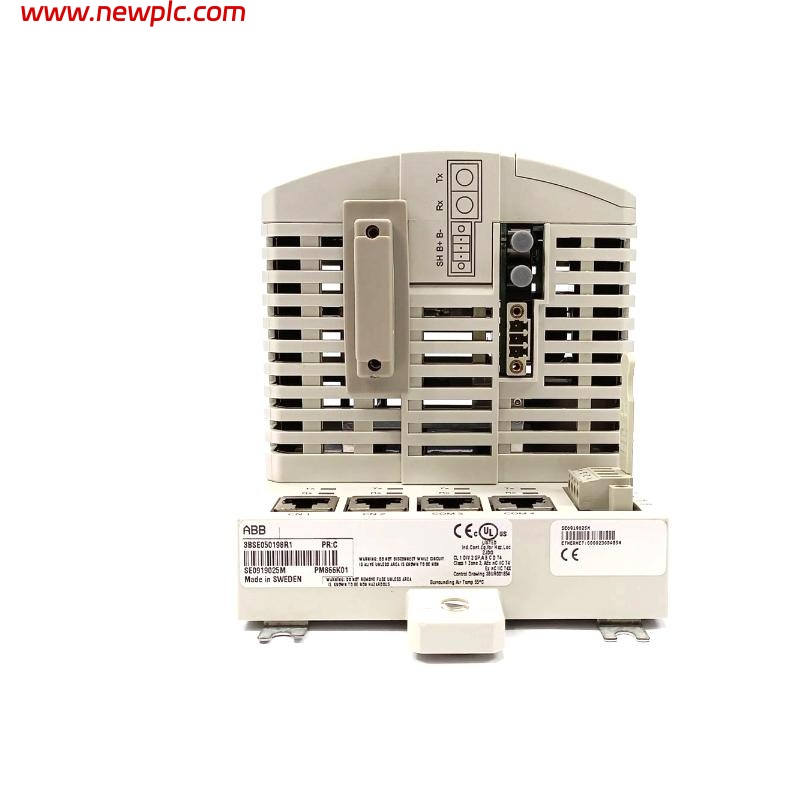

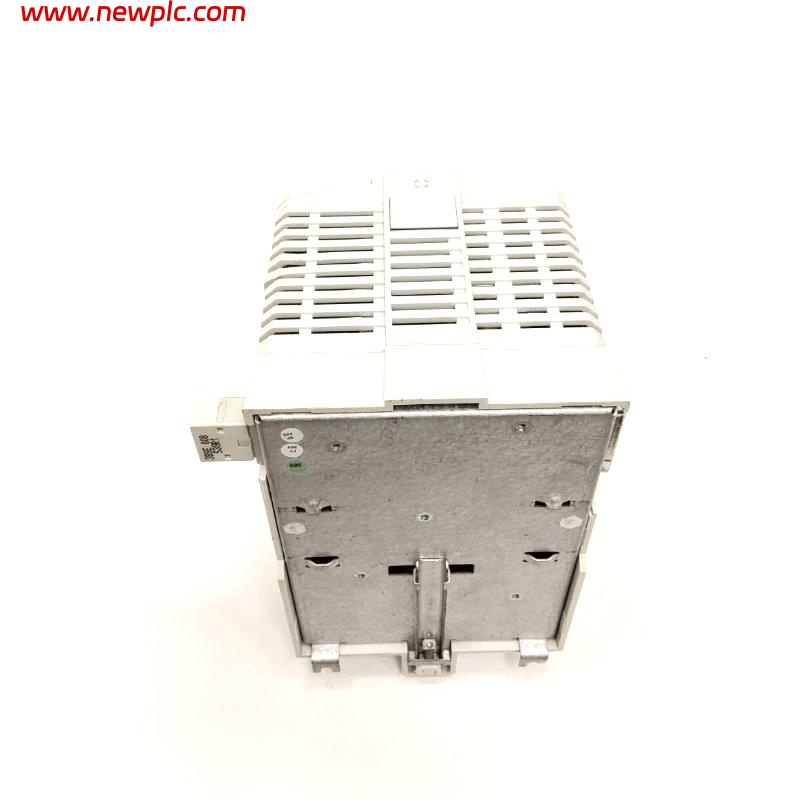

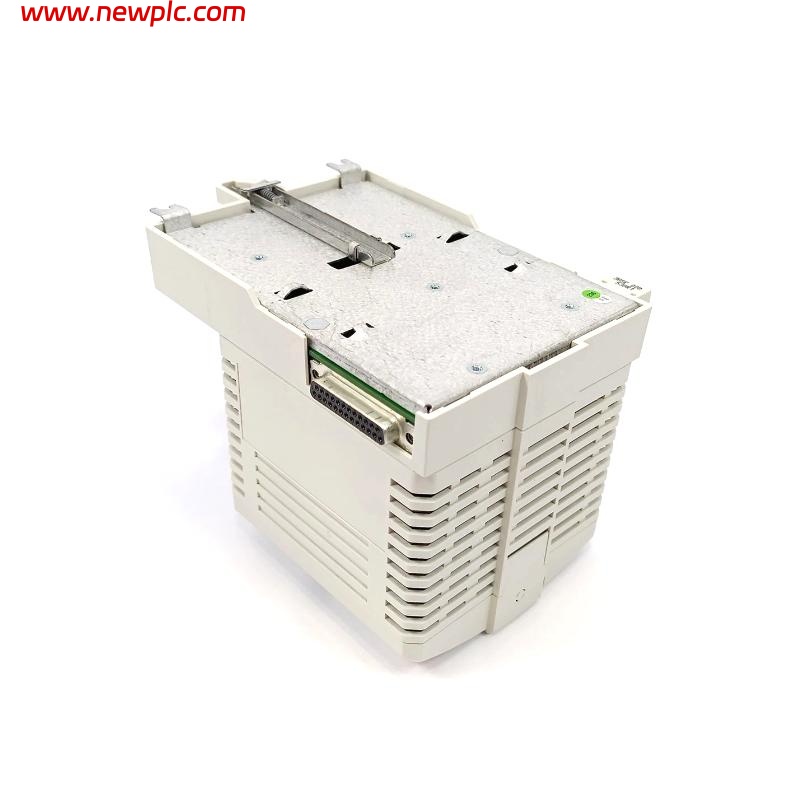

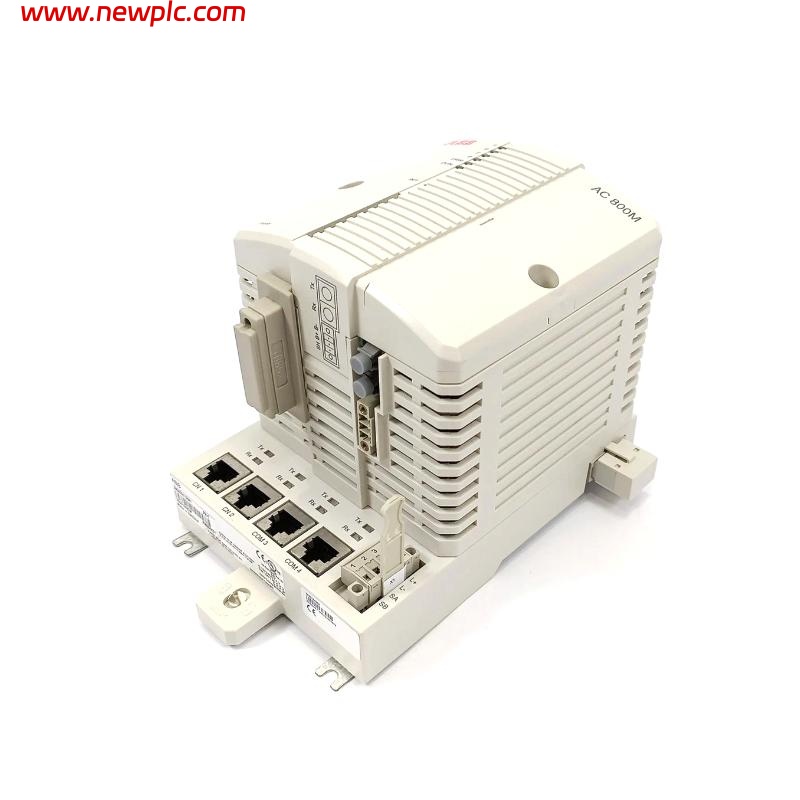

| Product Name | ABB PM866K02 3BSE050199R1 AC 800M Controller Redundant Processor Unit |
| CPU | Microprocessor with RAM memory |
| Real-Time Clock | Integrated |
| LED Indicators | Status LEDs for diagnostics |
| INIT Push Button | Included |
| CompactFlash Interface | Included |
| Ethernet Ports | 2 × RJ45 (CN1, CN2), built-in redundant communication |
| Serial Ports | COM3: RS-232C with modem signals; COM4: isolated for configuration tools |
| CPU Redundancy | Supported for CPU, CEX-Bus, communication interfaces, and S800 I/O |
| Mounting | DIN rail, slide & lock mechanism |
| Ethernet Hardware Identity | Unique per baseplate |
| Package Components | 2 × PM866A CPU, 2 × TP830 Baseplate, 2 × TB807 ModuleBus terminator, 1 × TK850 CEX-bus cable, 1 × TK851 RCU-Link cable, 2 × Memory Backup Battery (4943013-6) |
| Dimensions | 135 × 186 × 119 mm |
| Weight | 2.8 kg |
| Protection Class | IP20 |
| Configuration Tool | 800xA Control Builder |
| EMC Certification | Full EMC certified |
| Communication Standards | Ethernet, PROFIBUS DP, sectioned CEX-Bus with BC810/BC820 |
FAQ
FAQ
-
Q1: What is the maximum number of CPUs supported in redundancy for PM866K02?
A1: The PM866K02 supports dual CPU redundancy, including CPU, CEX-Bus, communication interfaces, and S800 I/O modules. -
Q2: How is the PM866K02 mounted and removed from the DIN rail?
A2: The unit uses a unique slide & lock mechanism, allowing easy DIN rail attachment and detachment without tools. -
Q3: Which serial port should be used for configuration tools?
A3: COM4 is the isolated port intended for connection with configuration tools, while COM3 is used for RS-232C communication with modem control signals. -
Q4: How can the unique Ethernet address of each CPU be identified?
A4: The Ethernet address is printed on a label attached to the TP830 baseplate, providing hardware identity. -
Q5: Does the PM866K02 require an enclosure for IP20 protection?
A5: No additional enclosure is required; the unit is IP20 rated for safe operation in standard industrial environments. -
Q6: What are the dimensions and weight of a single PM866K02 unit?
A6: Dimensions: 135 × 186 × 119 mm; Weight: 2.8 kg. -
Q7: Can the PM866K02 communicate over PROFIBUS DP and Ethernet simultaneously?
A7: Yes, it supports hardware standards for optimum communication connectivity, including Ethernet and PROFIBUS DP. -
Q8: How is memory backup handled for the CPU?
A8: Each CPU is provided with a memory backup battery (4943013-6) to maintain RAM data during power loss.
