Technical Specifications
| Parameter | Specification |
|---|---|

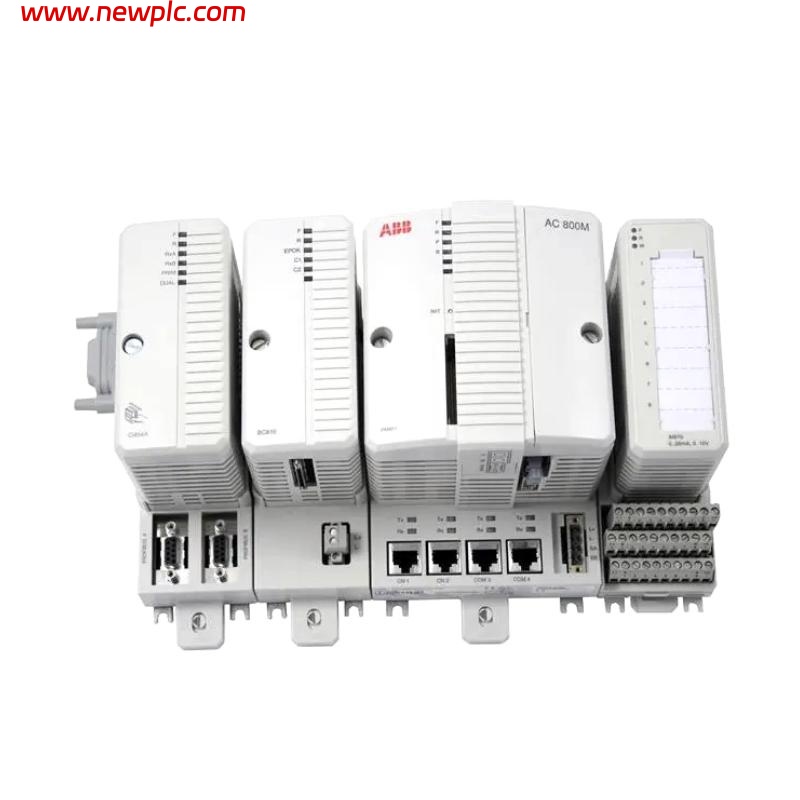

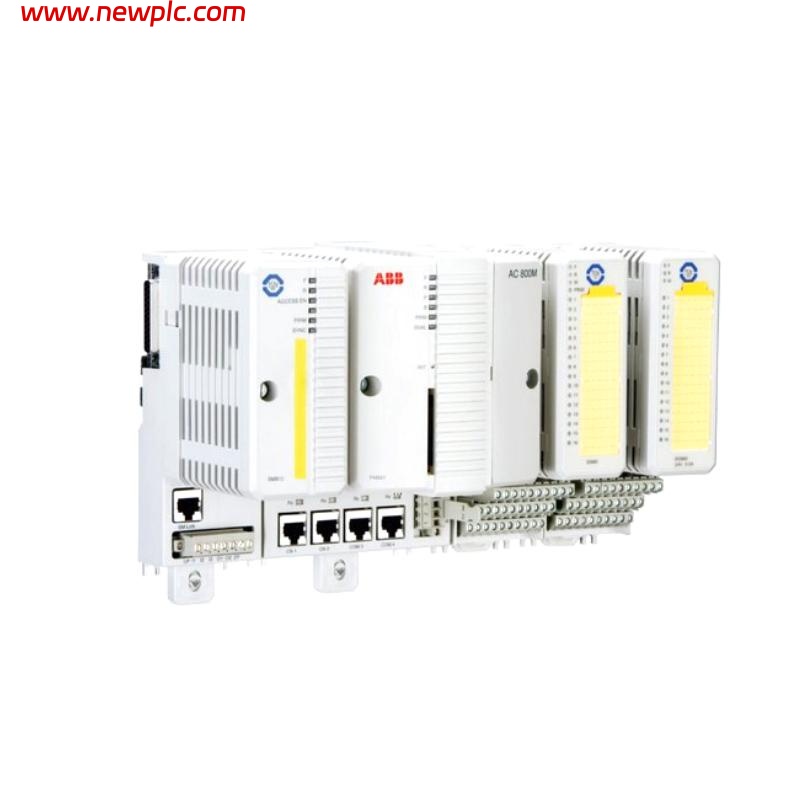

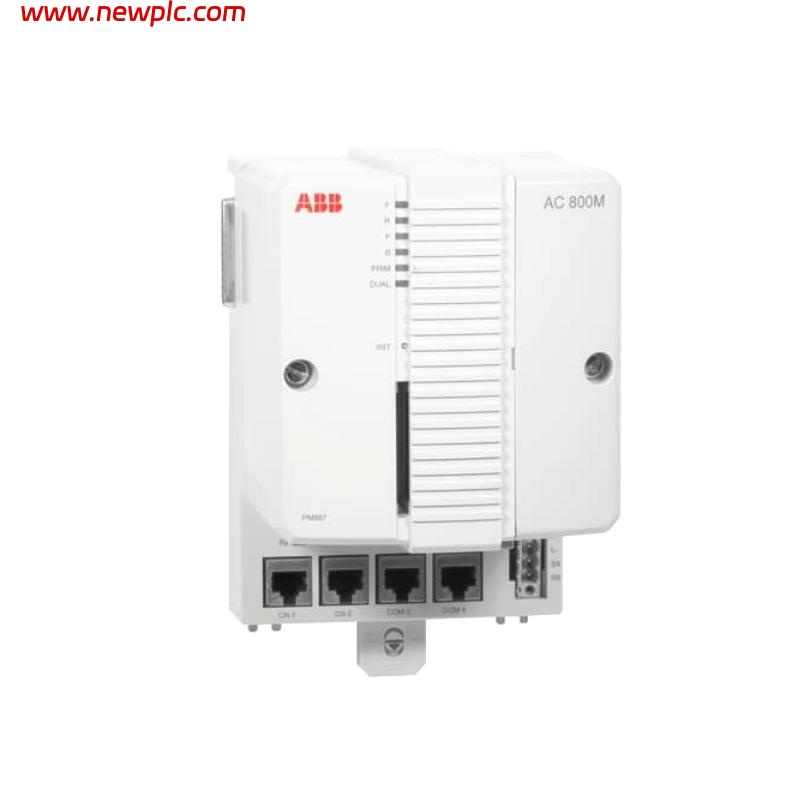

| Model | ABB PM867K01 3BSE076355R1 |
| Controller Type | AC 800M Processor Unit |
| Microprocessor | Integrated high-performance microprocessor |
| Memory | RAM memory included |
| Real-Time Clock | Yes |
| LED Indicators | Yes |
| Push Button | INIT |
| Storage Interface | CompactFlash interface |
| Ethernet Ports | 2 × RJ45 (CN1, CN2) for Control Network |
| Serial Ports | COM3 (RS-232C with modem control), COM4 (isolated for configuration tool) |
| CPU Redundancy | Supported (CPU, CEX-Bus, communication interfaces, S800 I/O) |
| High Integrity | Enabled with SM812 module and SIL-certified software |
| Safety Certification | IEC 61508, TÜV certified, SIL 2 / SIL 3 |
| Compatibility | 800xA 6.0.2 and onwards |
| EMC Certification | Full EMC certification |
| Dimensions (W × H × D) | 135 × 186 × 119 mm |
| Weight | 1.2 kg |
FAQ
FAQ
-
Q1: What type of redundancy does the PM867K01 support?
A1: The PM867K01 supports CPU redundancy including the CPU, CEX-Bus, communication interfaces, and S800 I/O modules to ensure higher system availability. -
Q2: Which ports are used for configuration and communication?
A2: COM3 is an RS-232C serial port with modem control, while COM4 is an isolated serial port used exclusively for configuration tools. Ethernet ports CN1 and CN2 provide redundant communication with the Control Network. -
Q3: What safety certifications does the PM867K01 hold?
A3: The unit is IEC 61508 compliant, TÜV certified, and can achieve SIL 2 and SIL 3 when combined with SM812 module. -
Q4: Can the PM867K01 be used with older versions of 800xA?
A4: No, it is only compatible with 800xA version 6.0.2 and later. -
Q5: What high-integrity functionality is available?
A5: High-integrity functionality is achieved with the addition of an SM812 module and SIL-certified software, supporting safety and business-critical process control in one unit. -
Q6: What is the storage interface of the processor unit?
A6: The processor uses a CompactFlash interface for storage and configuration. -
Q7: How is EMC compliance ensured?
A7: The PM867K01 comes with full EMC certification to comply with industrial electromagnetic compatibility requirements. -
Q8: How can the controller be configured?
A8: The controller can be configured using the 800xA Control Builder software.
