Technical Specifications
| Parameter | Specification |
|---|---|

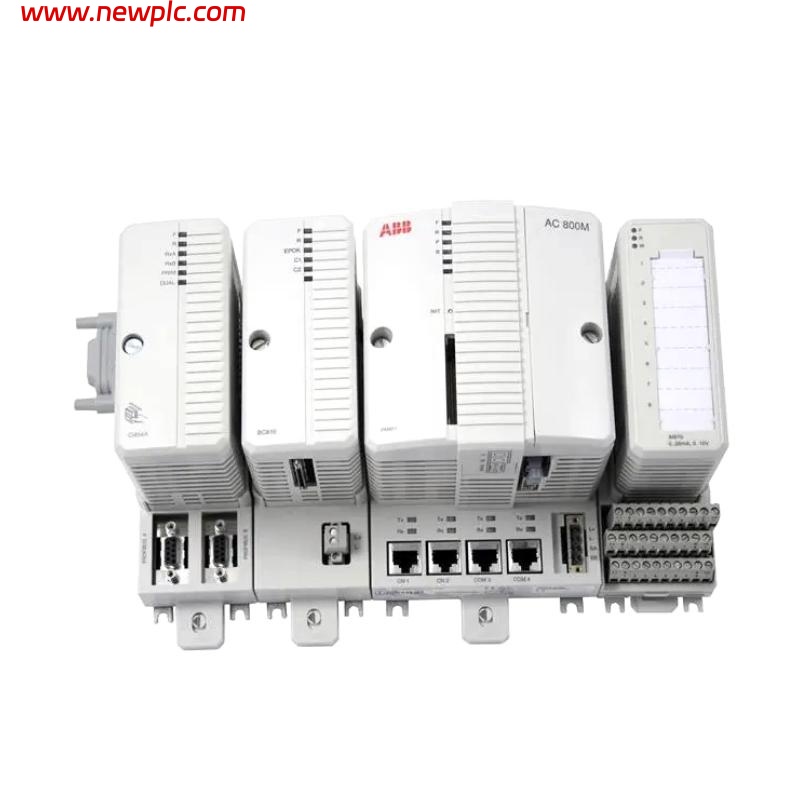

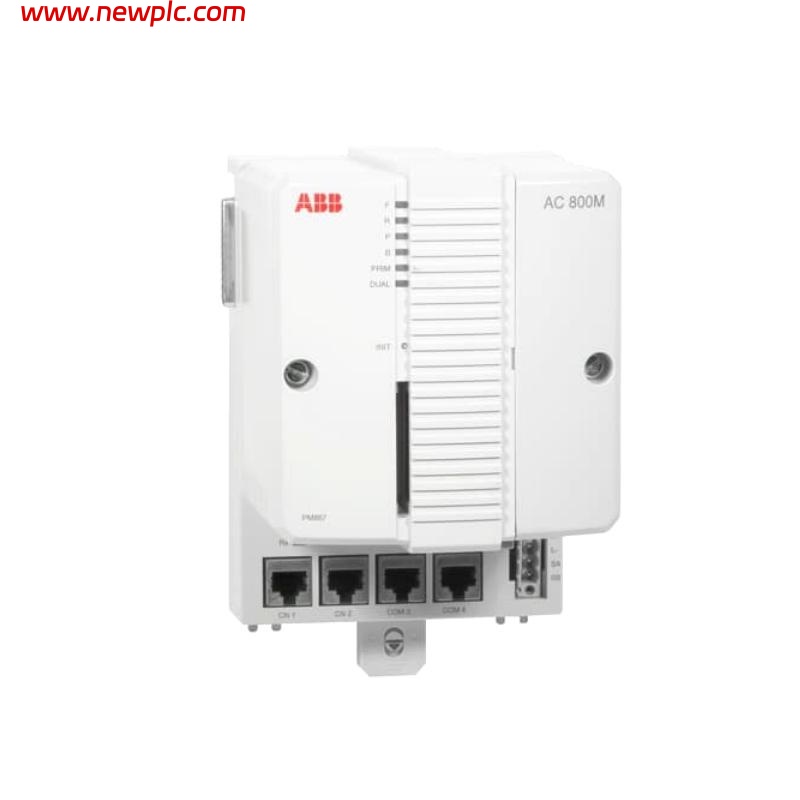

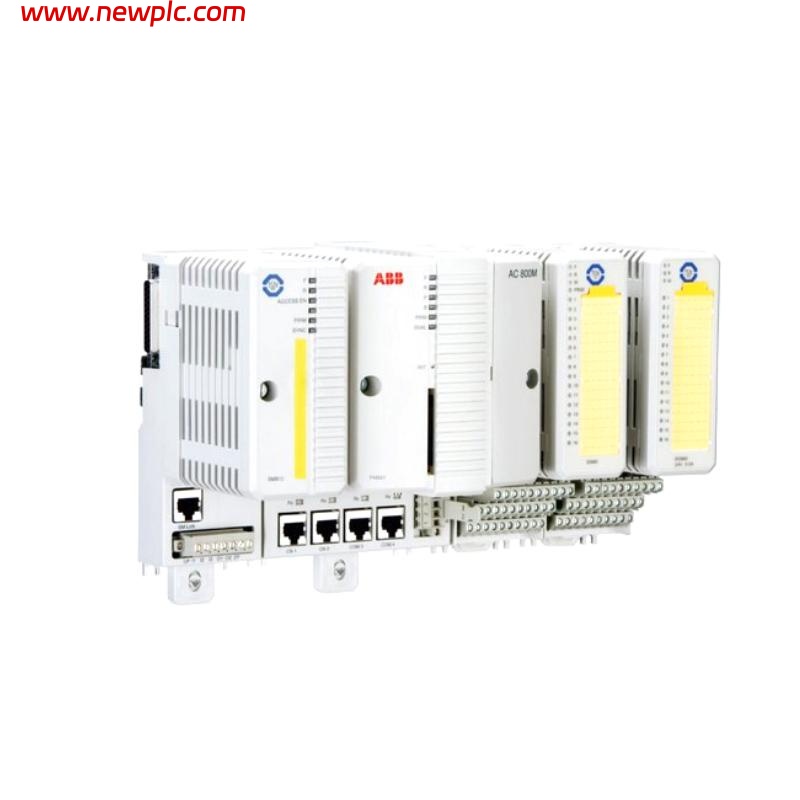

| Model | ABB PM867K02 3BSE081638R1 |
| Controller Type | AC 800M Redundant Processor Unit |
| CPU | Microprocessor with RAM memory |
| Real-Time Clock | Yes |
| Indicators | LED indicators |
| Push Button | INIT push button |
| Interface | CompactFlash interface |
| Ethernet Ports | 2 × RJ45 (CN1, CN2), redundant |
| Serial Ports | 2 × RJ45 (COM3 RS-232C with modem signals, COM4 isolated for configuration) |
| CPU Redundancy | Supported (CPU, CEX-Bus, communication interfaces, S800 I/O) |
| High-Integrity Functionality | Enabled via SM812 module and SIL-certified software |
| Safety Certification | IEC 61508, TÜV SIL 2/SIL 3 |
| Compatibility | 800xA 6.0.2 and onwards |

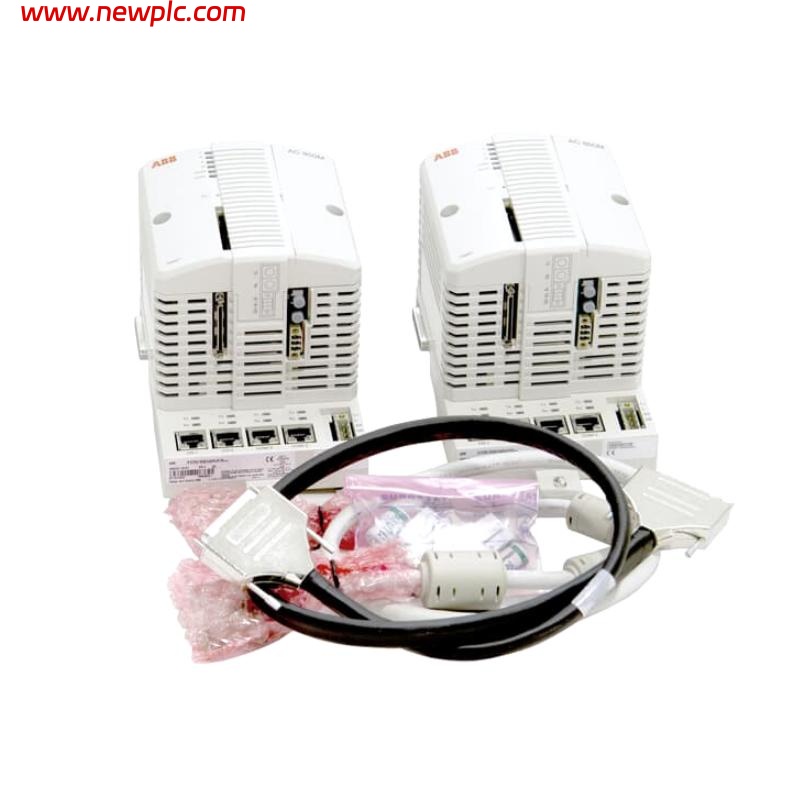

| Package Contents | 2 × PM867 CPU, 2 × TP830 Baseplate (115 mm width), 2 × TB807 ModuleBus terminator, 1 × TK850 CEX-bus expansion cable, 1 × TK851 RCU-Link cable, 2 × Memory backup batteries (4943013-6) |
| EMC Certification | Full EMC certified |
| Dimensions | 135 × 186 × 119 mm |
| Weight | 2.3 kg |
FAQ
FAQ
-
Q1: What type of redundancy is supported by the PM867K02?
A1: The PM867K02 supports CPU redundancy including the CPU, CEX-Bus, communication interfaces, and S800 I/O modules for high availability. -
Q2: Which serial port is suitable for configuration tools?
A2: COM4 is an isolated RJ45 port designed specifically for connection of configuration tools. -
Q3: Can the PM867K02 achieve SIL 3 certification?
A3: Yes, with the addition of the SM812 module and SIL-certified software, the controller achieves SIL 3 certification. -
Q4: What safety standards are supported?
A4: The controller supports IEC 61508 and TÜV-certified SIL 2/SIL 3 standards. -
Q5: Are the Ethernet ports redundant?
A5: Yes, the PM867K02 has two built-in redundant Ethernet communication ports (CN1 and CN2). -
Q6: Is the controller compatible with 800xA versions prior to 6.0.2?
A6: No, it is only compatible with 800xA version 6.0.2 and later. -
Q7: What is included in the standard package?
A7: The package includes 2 CPUs (PM867), 2 Baseplates (TP830), 2 ModuleBus terminators (TB807), CEX-bus expansion cable (TK850), RCU-Link cable (TK851), and 2 memory backup batteries (4943013-6). -
Q8: Does the PM867K02 have EMC certification?
A8: Yes, the controller has full EMC certification ensuring electromagnetic compatibility.
