Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

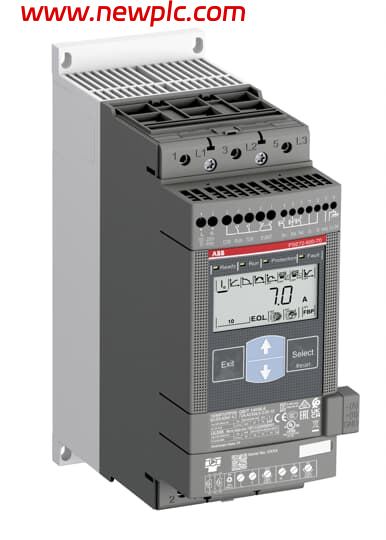

| Model | PSE370-600-70 |
| Part Number | 1SFA897115R7000 |
| Product Type | Softstarter |
| Series | PSE |
| Rated Operational Current | 370 A |
| Rated Operational Voltage | 208–600 VAC |
| Control Supply Voltage | 100–250 VAC, 50/60 Hz |
| Control Circuit Voltage | 24 VDC |
| Rated Power at 230 V | 110 kW |
| Rated Power at 400 V | 200 kW |
| Rated Power at 500 V | 250 kW |
| Starting Class | Class 10, Normal Duty |
| Starting Capacity | 4 × Ie for 10 s |
| Ramp Time | Start: 1–30 s; Stop: 0–30 s |
| Initial Start Voltage | 30–70% |
| Current Limit | 1.5–7 × Ie |
| Overload Protection | Built-in electronic overload protection |
| Bypass | Integrated |
| Run Relay | Yes |
| Bypass Relay | Yes |
| Fault Relay | Yes |
| Overload Relay | Yes |
| Analog Output | 4–20 mA |
| Main Terminal Protection | IP00 |
| Mounting | Panel / cabinet mounting |
| Approx. Dimensions | 190 × 550 × 236.5 mm |
| Approx. Net Weight | 13.9 kg |
| Approx. Shipping Weight | 15–16 kg |
FAQ
FAQ
Q1: What is ABB PSE370-600-70?
A: It is a 370 A three-phase softstarter from ABB’s PSE series, designed for reducing motor starting current and mechanical stress.
Q2: What is the ABB part number?
A: The part number is 1SFA897115R7000, corresponding to PSE370-600-70.
Q3: What is the rated current?
A: The rated operational current is 370 A for in-line connection.
Q4: What is the input voltage?
A: The rated operational voltage is 208–600 VAC, three-phase.
Q5: What motor power is supported?
A: ABB rates the unit at 110 kW at 230 V, 200 kW at 400 V, and 250 kW at 500 V for in-line connection.
Q6: Does it have an integrated bypass?
A: Yes. The PSE370 has an integrated bypass, reducing power losses once the motor reaches normal operating speed.
Q7: What are the dimensions and weight?
A: Approximately 190 × 550 × 236.5 mm, with a net weight of 13.9 kg.
Q8: What is the difference between PSE370-600-70 and PSTX720-600-70?
A: The PSE370 is a simpler 370 A softstarter with basic starting/stopping and protection functions, while the PSTX720 is a higher-current 720 A advanced softstarter with substantially more control and monitoring functions.
