Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |

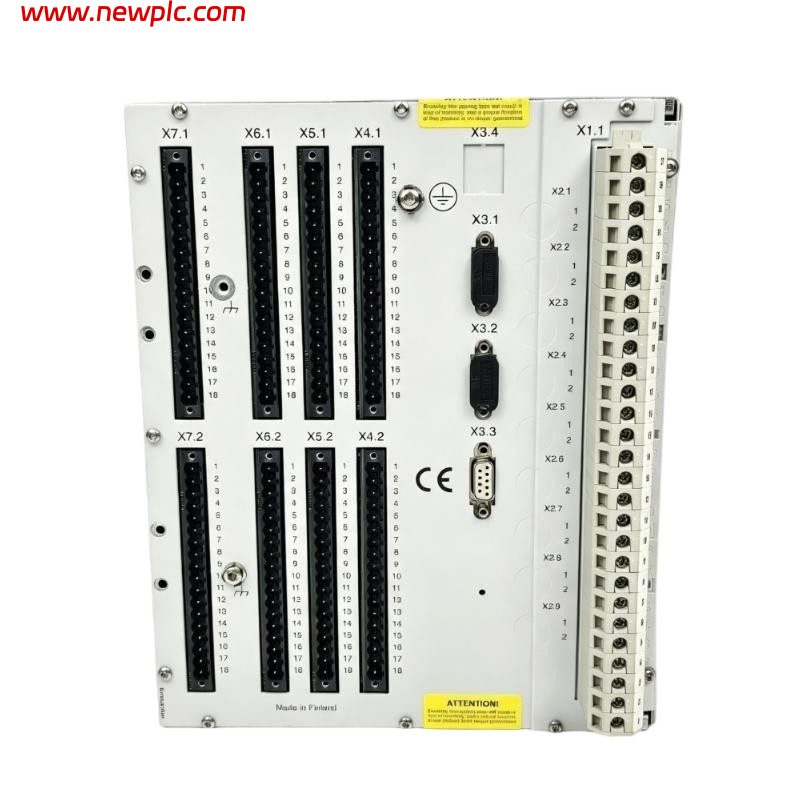

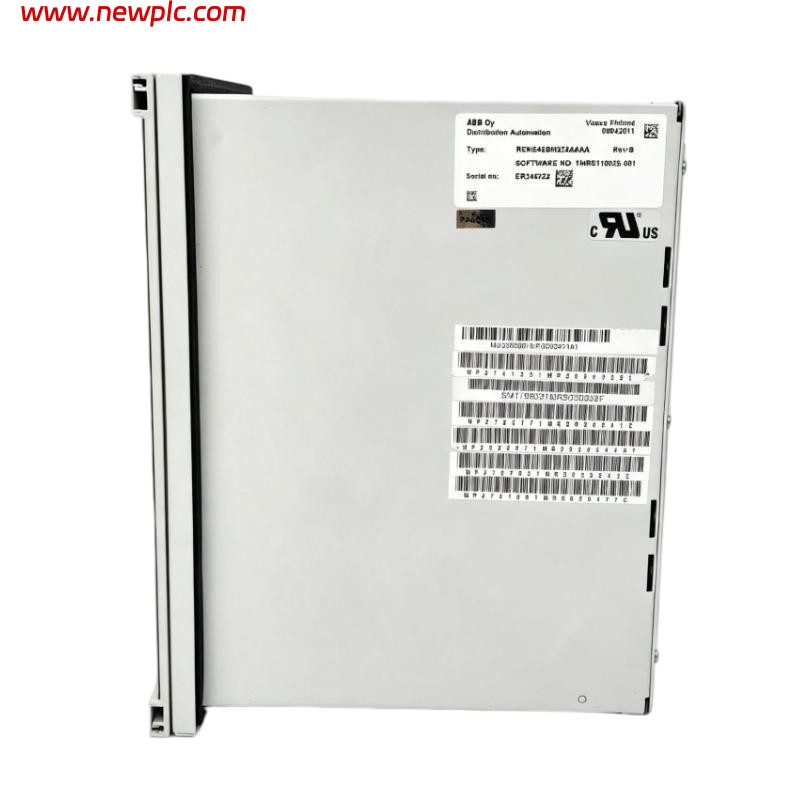

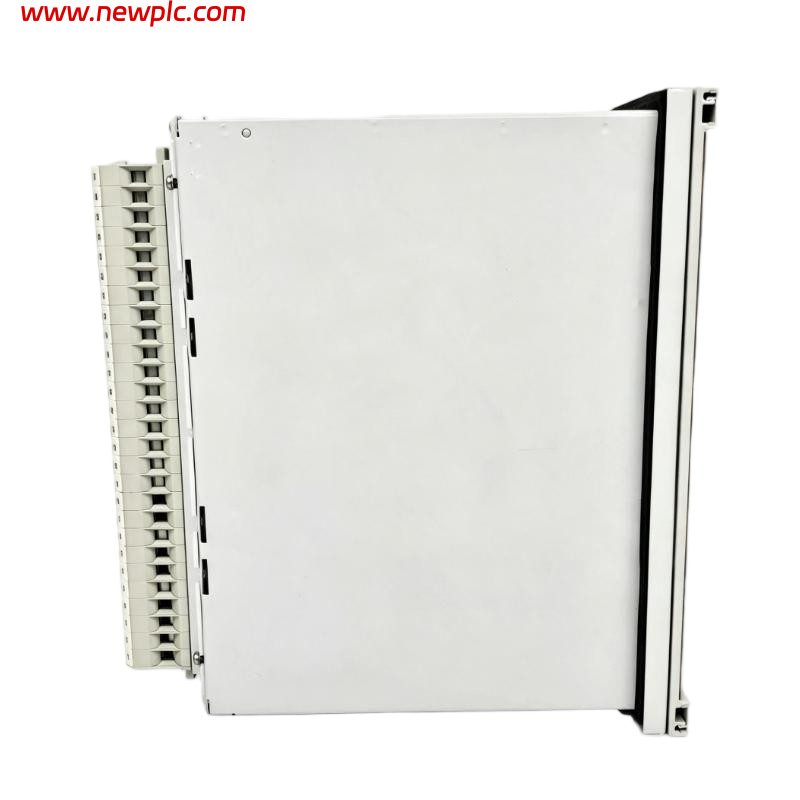

| Model | REM 545 |
| Product Type | Machine Protection Terminal / Protection Relay |
| Series | REM 54 |
| Application | Generator and motor protection |
| Main Applications | Diesel, hydroelectric and steam generators; MV synchronous/asynchronous motors |
| Current Inputs | 0.2 A / 1 A / 5 A |
| Voltage Inputs | 100 / 110 / 115 / 120 V, selectable by parameterization |
| Frequency | 50 / 60 Hz |
| Digital Inputs | Up to 25 |
| Output Relays | Up to 18 |
| RTD / Analog Input | Optional |
| Communication | SPA / LON / IEC 61850 via adapter, depending on configuration |
| Protection Functions | Overcurrent, earth-fault, differential, thermal, under/overvoltage, under/overfrequency, excitation, impedance, reverse power, motor start-up/stall, etc. |
| Programmable Logic | Yes |
| Event Recording | Last 100 events |
| HMI | Integrated display and keypad |
| Optical Communication | Supported |
| Mounting | 19-inch rack / panel mounting |
| Width | 223.7 mm |
| Height | 265.9 mm frame / 249.8 mm box |
| Depth | 235 mm |
| Approx. Net Weight | 8 kg |
FAQ
FAQ
Q1: What is ABB REM 545?
A: It is an ABB machine protection and control terminal designed mainly for generators and large motors.
Q2: What is the main application of REM 545?
A: It is used as the main protection system for small and medium-power generator units and for protection of large MV synchronous/asynchronous motors.
Q3: What current inputs does it support?
A: The current inputs are available for 0.2 A, 1 A or 5 A rated current, depending on the hardware configuration.
Q4: What voltage inputs does REM 545 support?
A: The voltage inputs can be parameterized for 100, 110, 115 or 120 V rated voltage.
Q5: How many digital inputs and outputs does it have?
A: The REM 545 configuration can provide up to 25 digital inputs and 18 output relays. The exact number depends on the selected hardware version.
Q6: Does REM 545 support communication?
A: Yes. It supports communication options including SPA and LON, and IEC 61850 can be supported through the appropriate adapter/configuration.
Q7: What are the dimensions and weight?
A: The unit is approximately 223.7 × 265.9 × 235 mm (W × H × D), with a net weight of approximately 8 kg.
Q8: Is REM 545 still an active ABB product?
A: No. ABB currently classifies the REM 545 as a legacy product, and states that it has been not active since 2022.
