Technical Specifications
| Parameter | Description |
|---|---|

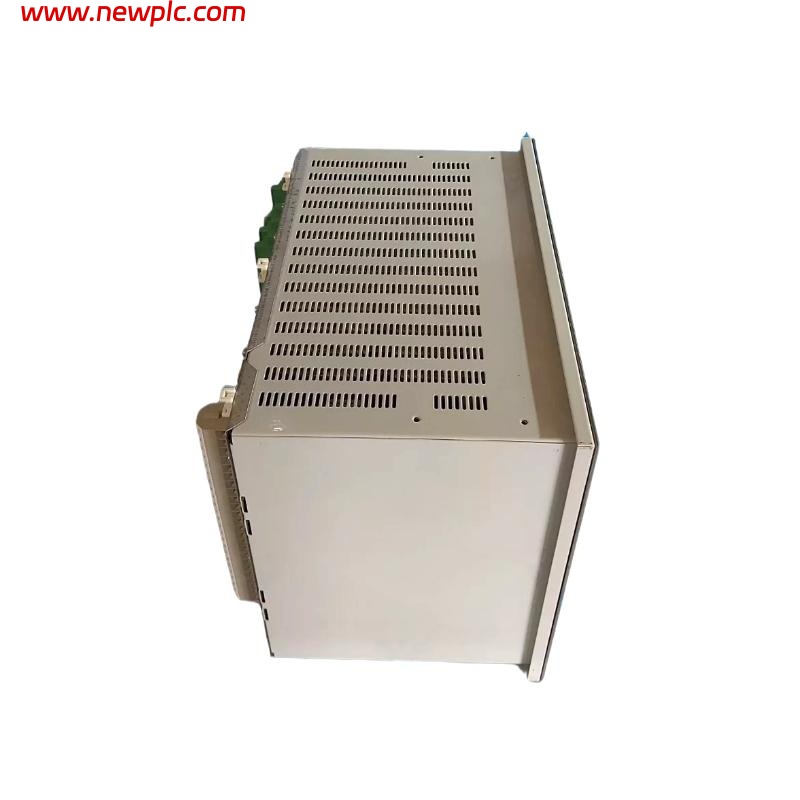

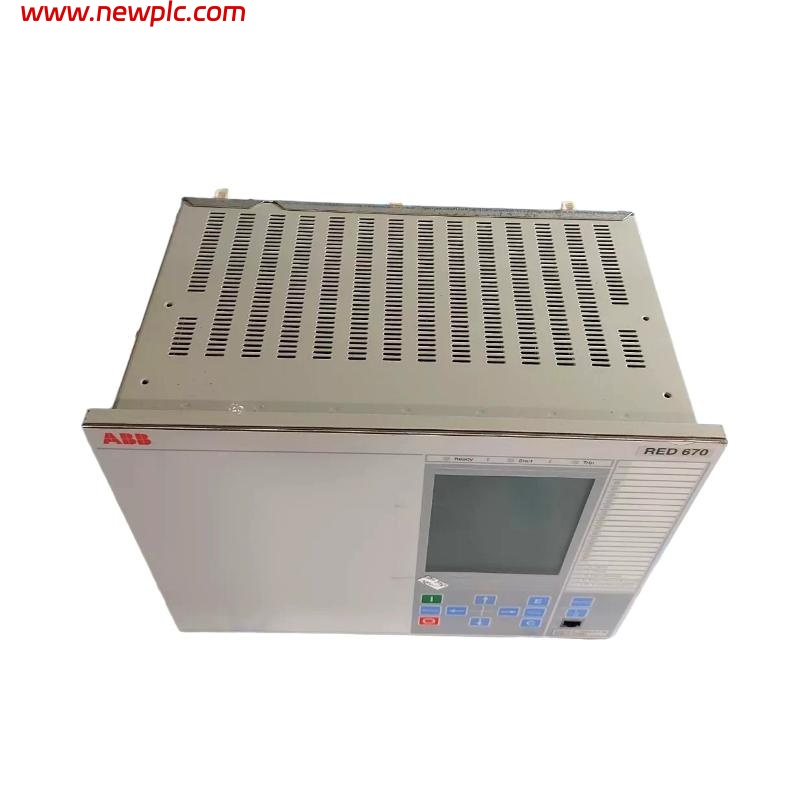

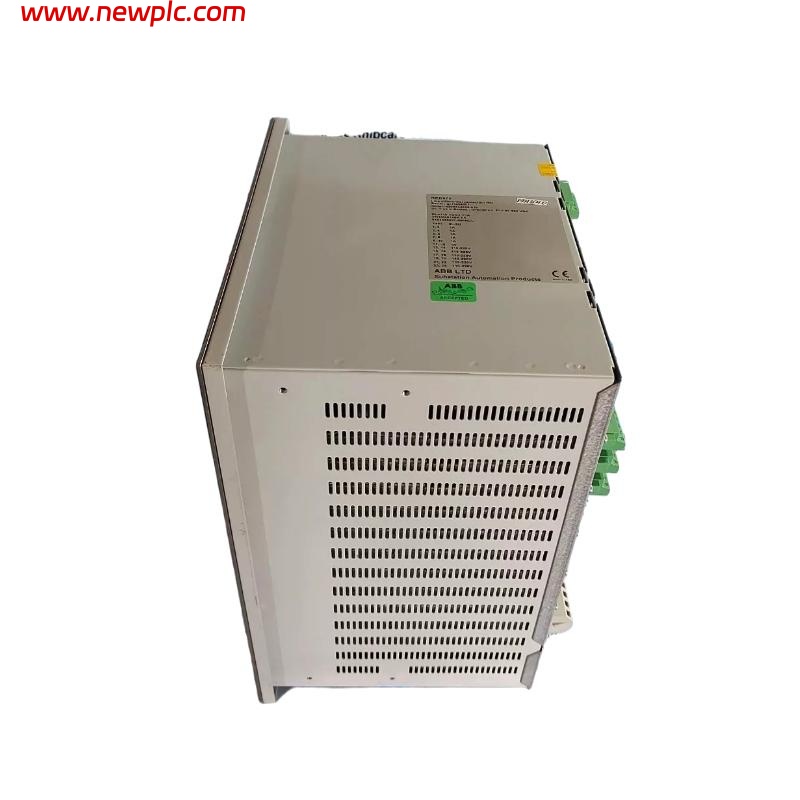

| Model | RED670 1MRK002810-AC |
| Type | Line Differential Protection Relay |
| Dimensions | 177 x 177 x 190 mm |
| Weight | 3.1 kg |
| Power Supply | 110-250 V AC/DC |
| Communication Interfaces | IEC 61850, Modbus, DNP3 |
| Protection Functions | Line differential protection, overcurrent protection, ground fault protection |
| Response Time | < 5 ms (differential action time) |
| Rated Current Input | 1 A / 5 A (optional) |
| Operating Temperature | -25°C to +70°C |
| Mounting | Panel or cabinet mounting |
| Digital Inputs/Outputs | 12 DI / 12 DO (expandable) |
| Event Log Capacity | 1000 events |
FAQ
FAQ
-
Q1: What communication protocols does the RED670 support?
A1: Supports IEC 61850, Modbus, and DNP3, enabling remote monitoring and integration of protection functions. -
Q2: What is the differential protection response time?
A2: Less than 5 milliseconds, ensuring rapid disconnection of faulty lines. -
Q3: What current ratings can RED670 handle?
A3: Rated current input is selectable as 1 A or 5 A, adjustable according to substation requirements. -
Q4: How can RED670 be installed?
A4: Can be installed on panels or inside cabinets, compatible with standard DIN panel sizes. -
Q5: Is the digital input/output expandable?
A5: Yes, the default configuration is 12 DI / 12 DO, expandable with additional modules. -
Q6: What is the operating temperature range?
A6: -25°C to +70°C, suitable for various industrial environments. -
Q7: How many events can the RED670 record?
A7: Internal event log capacity is 1000 events, storing operational and fault records. -
Q8: Does this relay provide overcurrent and ground fault protection?
A8: Yes, in addition to line differential protection, it provides overcurrent and ground fault protection.
