Technical Specifications
| Parameter | Specification |
|---|---|

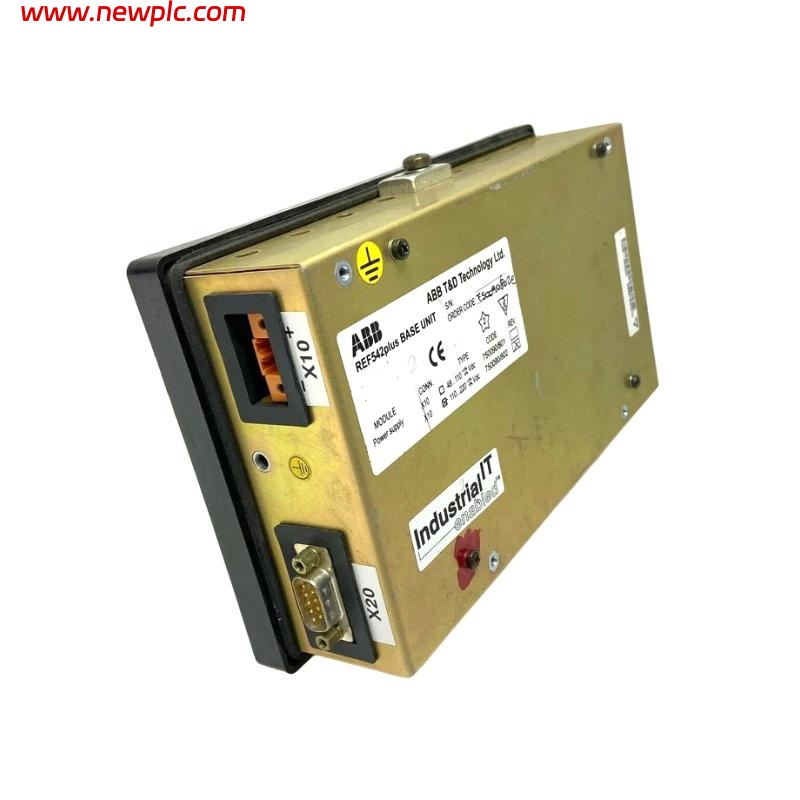

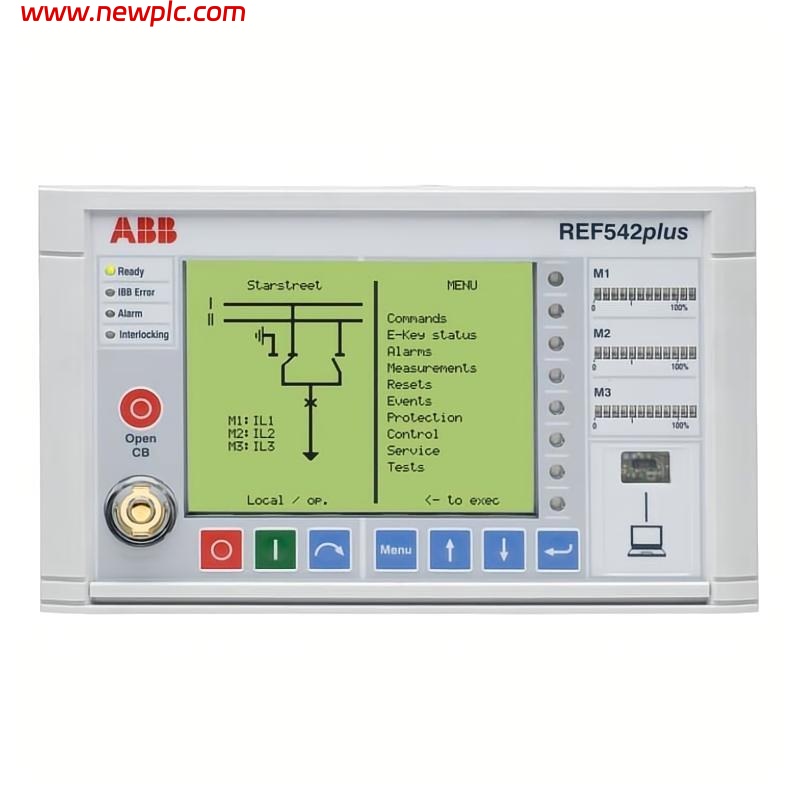

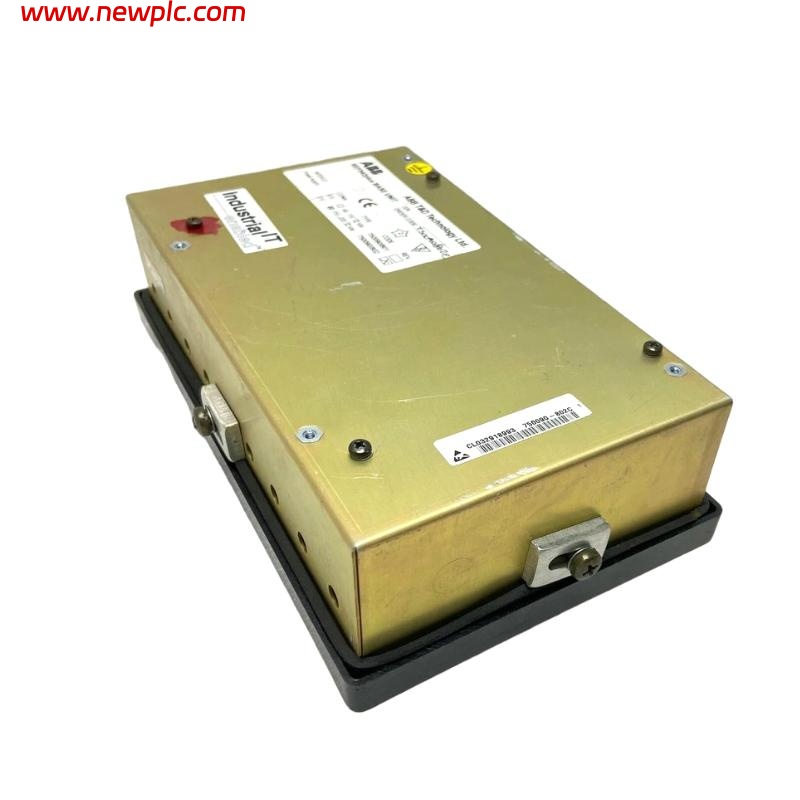

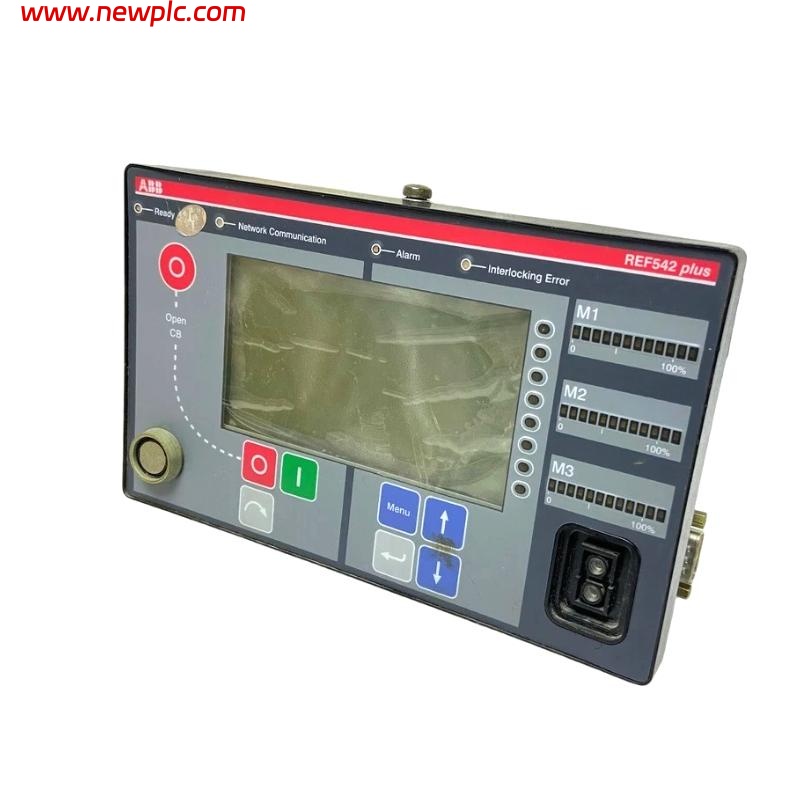

| Product Name | ABB REF542PLUS Feeder Terminal |
| Model Number | 1VCF750090R0802 |
| Function | Protection and Control for Feeders |
| Rated Voltage | 100–240 V AC/DC |
| Communication Interfaces | IEC 61850, Modbus RTU, DNP3 |
| I/O Points | 16 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs |
| Measurement Functions | Overcurrent, Earth fault, Voltage, Power, Energy |
| Control Functions | Breaker control, Auto-reclose, Interlocking |
| Dimensions | 215 x 130 x 64 mm |
| Weight | 5.2 kg |
| Operating Temperature | -25°C to +55°C |
| Mounting | Panel-mounted |
FAQ
FAQ
-
Q1: What types of feeders can REF542PLUS protect?
A1: REF542PLUS can protect medium- and low-voltage feeders, including radial and ring feeders, offering overcurrent and earth fault protection. -
Q2: Can it integrate with existing SCADA systems?
A2: Yes, the relay supports IEC 61850 and Modbus RTU protocols, allowing seamless integration with most SCADA and automation systems. -
Q3: Does REF542PLUS support breaker failure protection?
A3: Yes, it provides breaker failure protection and can initiate backup tripping if the primary breaker fails. -
Q4: How many I/O points are configurable?
A4: It includes 16 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs, all configurable according to feeder requirements. -
Q5: Can it perform auto-reclosing?
A5: Yes, REF542PLUS supports programmable auto-reclosing sequences for temporary faults. -
Q6: What measurement functions does it provide?
A6: The terminal measures voltage, current, active/reactive power, energy, and provides overcurrent and earth fault monitoring. -
Q7: How is the device mounted?
A7: It is designed for panel mounting with standard mounting kits included. -
Q8: What is the operating temperature range?
A8: The device operates reliably between -25°C and +55°C.
