Technical Specifications
| Parameter | Specification |
|---|---|

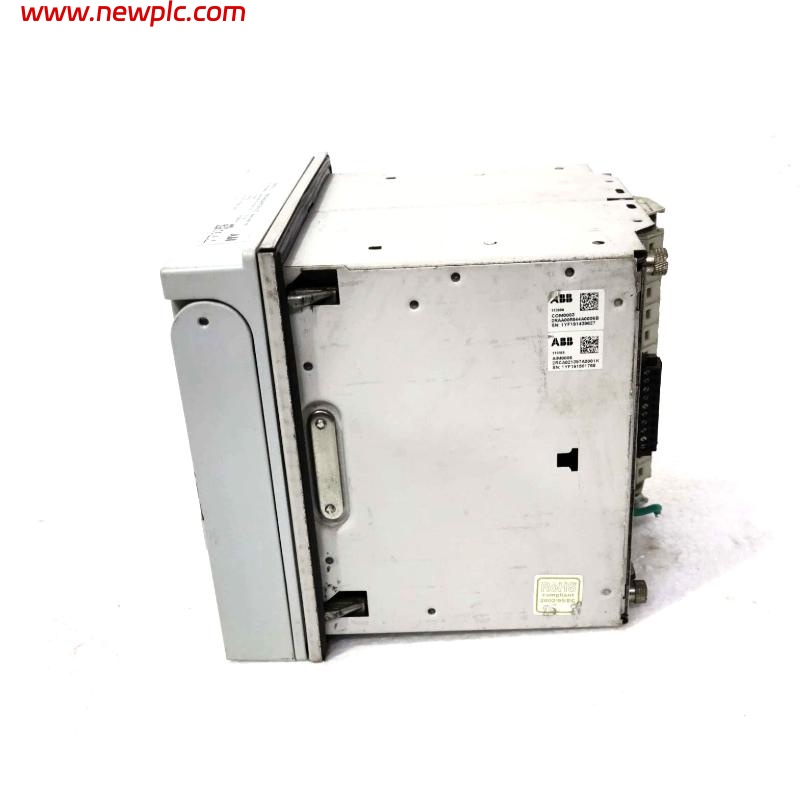

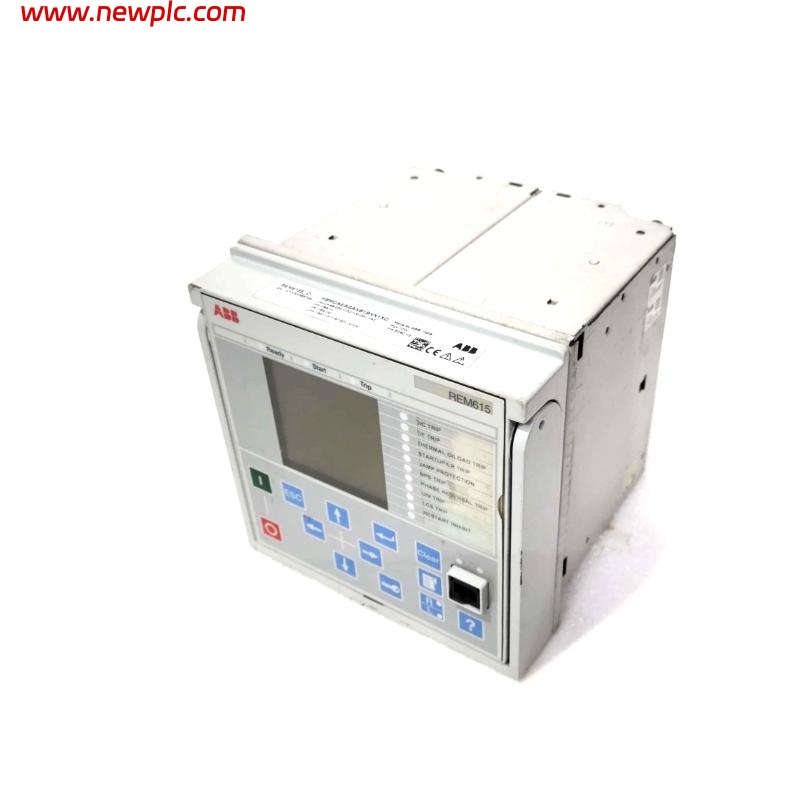

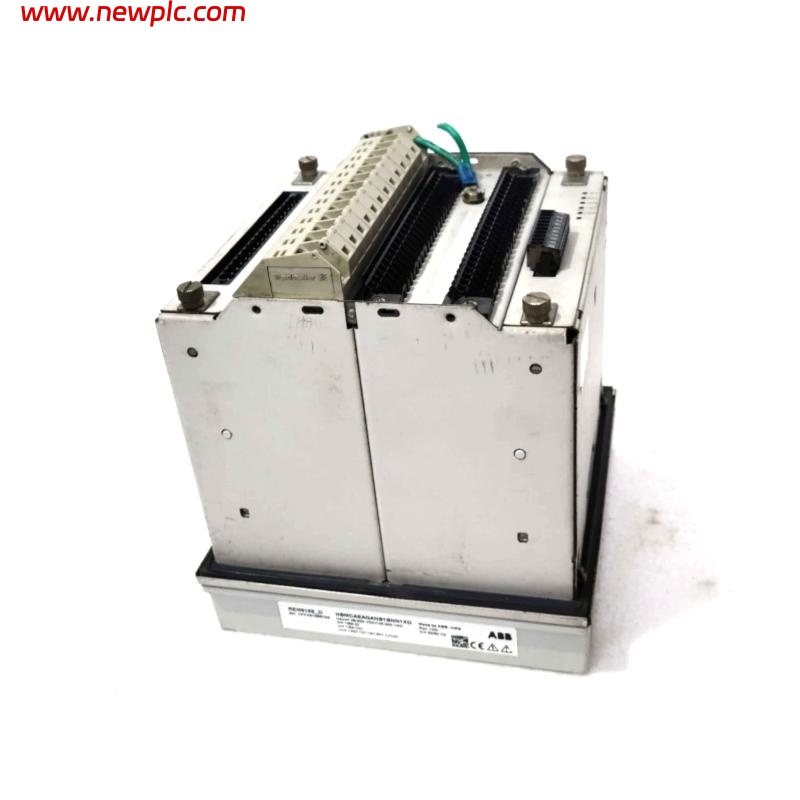

| Product Name | ABB REM615 Motor Protection and Control Relay |
| Dimensions | 177 × 177 × 201 mm |
| Weight | 4.1 kg |
| Mounting | Flush-mounted, withdrawable unit |
| Power Supply Voltage | 24–250 V DC / 100–240 V AC |
| Power Consumption | DC: <12 W (nominal), <18 W (max); AC: <16 W, <21 W |
| Rated Frequency | 50/60 Hz |
| Current Input Rating | 0.2/1 A or 1/5 A |
| Continuous Current Withstand | 4 A (0.2/1 A), 20 A (1/5 A) |
| Voltage Input Range | 60–210 V AC |
| Binary Inputs | Up to 16 (depending on configuration) |
| Binary Outputs | Up to 13 (depending on configuration) |
| RTD Inputs (optional) | 6 channels (Platinum, Nickel, Copper sensors) |
| mA Inputs (optional) | 2 channels |
| Communication Protocols | IEC 61850, Modbus, DNP3, IEC 60870-5-103 |
| Ethernet Ports | RJ-45 and LC fibre-optic (depending on option) |
| Protection Functions | O/C, E/F, U/V, thermal, frequency, motor jam, etc. |
| Arc Protection (optional) | 3 channels with fibre sensor interface |
| Event Recording Capacity | 512 time-stamped events |
| Fault Record Capacity | 32 fault records |
| Operating Temperature Range | –25 to +55°C (–40 to +85°C short-term) |
| Humidity | <93%, non-condensing |
| Degree of Protection | Front: IP54; Rear: IP20 |
| Compliance | RoHS, IEC 60255, EN 55011, IEC 61000 |
FAQ
FAQ
Q1: What types of motor applications is the REM615 suitable for?
A1: REM615 is suitable for asynchronous motor protection in HV/LV motor applications such as pumps, fans, crushers, mixers, and agitators.
Q2: Does REM615 support the IEC 61850 communication protocol?
A2: Yes, REM615 supports IEC 61850 and GOOSE messaging for fast peer-to-peer communication.
Q3: Is thermal overload protection included in the REM615?
A3: Yes, REM615 features integrated thermal overload protection based on an internal motor thermal model.
Q4: What are the physical dimensions and weight of the REM615?
A4: The unit measures 177 x 177 x 201 mm and weighs 4.1 kg.
Q5: Does the REM615 provide frequency protection capabilities?
A5: Yes, the REM615 includes frequency-based protections such as underfrequency and overfrequency.
Q6: Can RTD or mA inputs be used for temperature monitoring?
A6: Yes, optional RTD/mA modules (in A and B configurations) allow monitoring of bearing and winding temperatures.
Q7: Are event logs lost after power failure?
A7: No, the REM615 uses non-volatile memory, preserving event logs even during power outages.
Q8: Is local access to measurement data possible via the front panel?
A8: Yes, the REM615 has a local HMI interface for direct measurement and event access from the front panel.
