Technical Specifications
| Parameter | Specification |
|---|---|

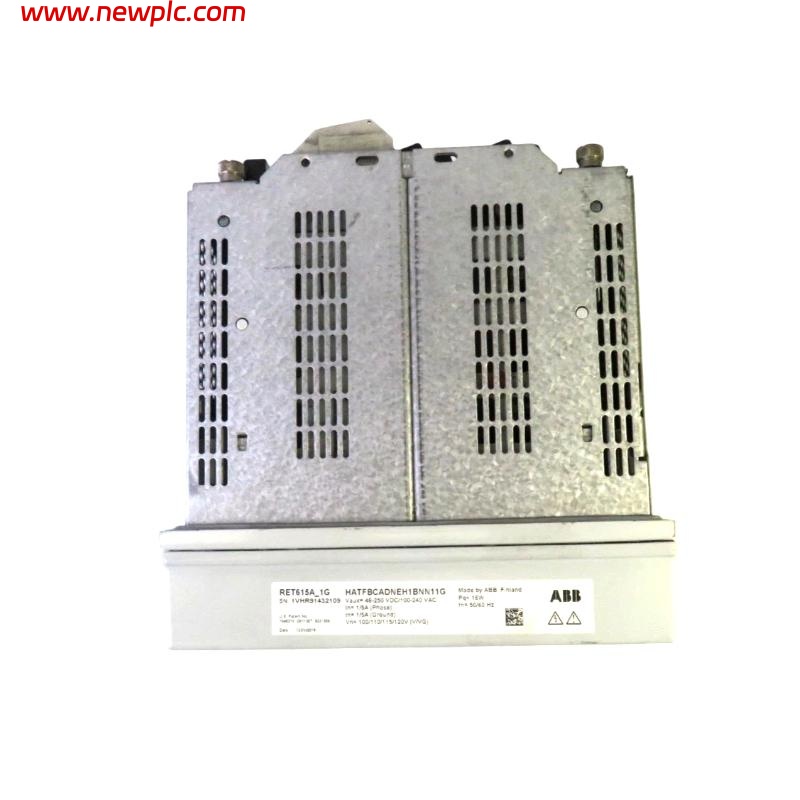

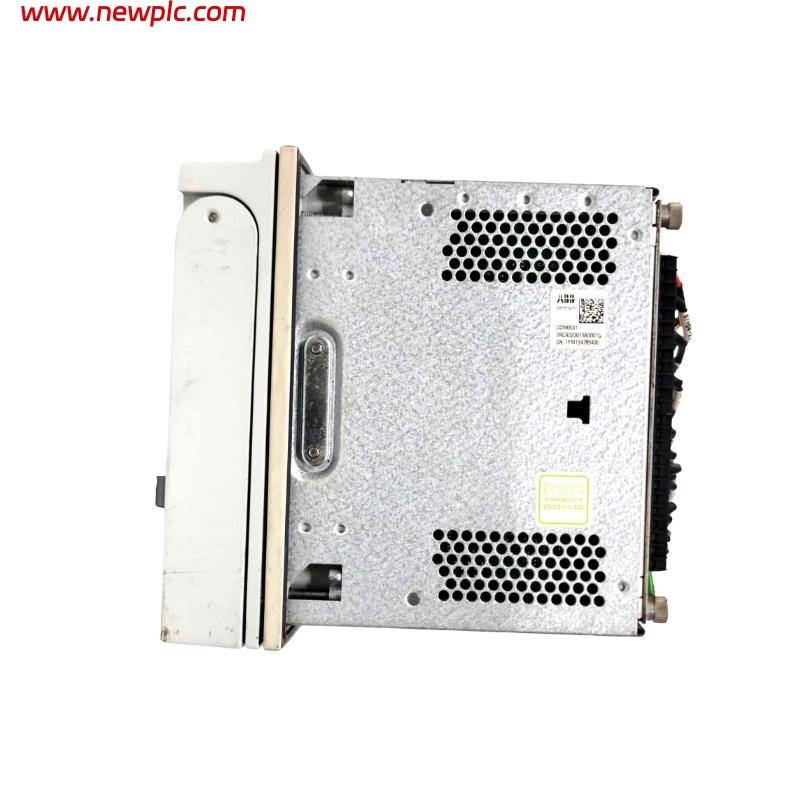

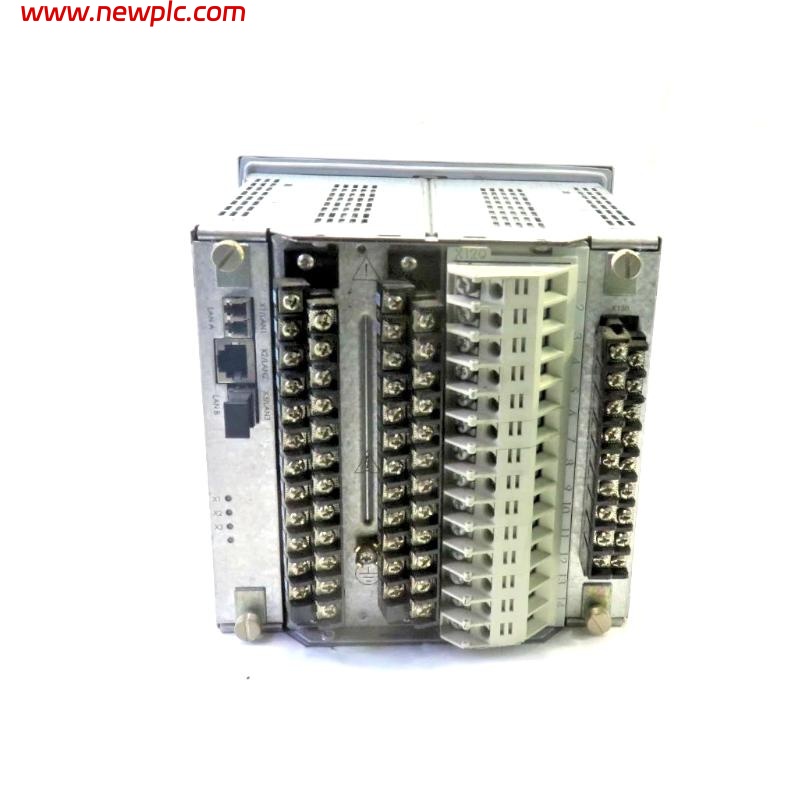

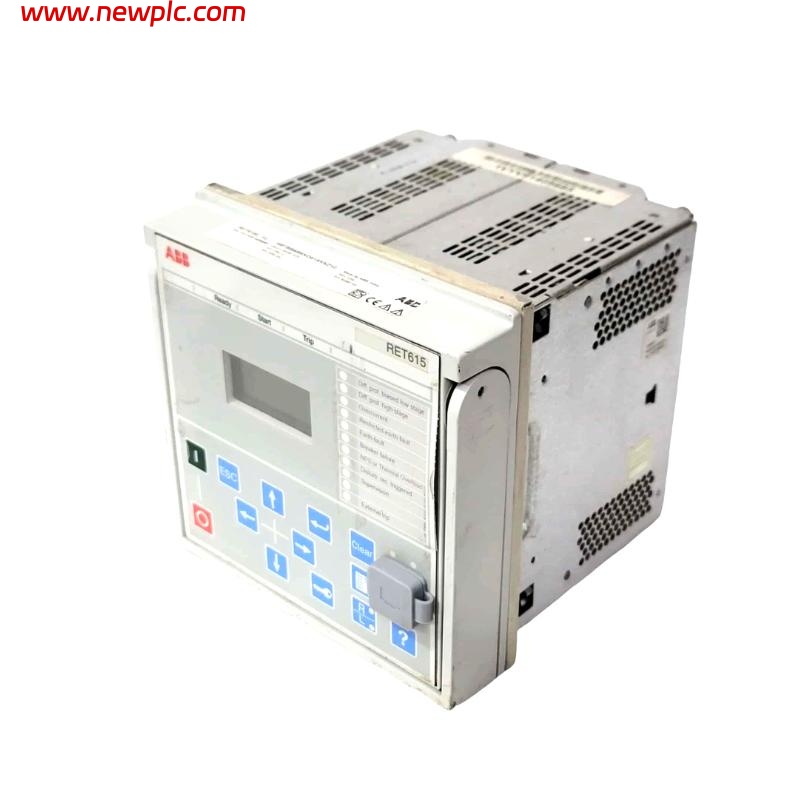

| Device Type | RET615 Transformer Protection and Control Relay |
| Rated Frequency | 50/60 Hz ±5% |
| Dimensions (W x H x D) | 177 x 177 x 194 mm |
| Weight | 3.5 kg |
| Power Supply Range (DC) | 24–60 V, 48–60 V, 110–250 V |
| Power Supply Range (AC) | 100–240 V, 50/60 Hz |
| Auxiliary Power Burden (Max) | 11.9 W (DC), 13.6 W (AC) |
| Current Input | 1 A / 5 A selectable |
| Binary Inputs | 8 or 14 (with optional module) |
| Binary Outputs | 10 or 13 (with optional module) |
| Communication Protocols | IEC 61850, Modbus, DNP3, IEC 60870-5-103 |
| Communication Interfaces | Ethernet (RJ-45/LC), Serial (RS-232/RS-485), Fibre |
| Degree of Protection (Front) | IP54 |
| Operating Temperature Range | -25°C to +55°C (up to +70°C for LC interface) |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | <93%, non-condensing |
| Altitude | Up to 2000 m |
| Display Options | Small (5 rows x 20 char), Large (10 rows x 20 char) |
| Mounting Methods | Flush, semi-flush, wall, rack (19″), inclined (25°) |
FAQ
FAQ
Q1: What communication protocols does the RET615 support?
A1: RET615 supports IEC 61850, Modbus (RTU/ASCII/TCP), DNP3 (serial and TCP/IP), and IEC 60870-5-103 protocols.
Q2: What types of transformers can RET615 be applied to?
A2: RET615 is designed for two-winding power transformers and generator-transformer blocks in utility and industrial networks.
Q3: What are the key protection functions of RET615?
A3: RET615 offers transformer differential protection, high/low impedance REF protection, overcurrent protection, negative sequence protection, thermal overload, and arc fault protection.
Q4: Does RET615 support IEC 61850 GOOSE communication?
A4: Yes, RET615 supports IEC 61850-8-1 GOOSE messaging for fast and reliable peer-to-peer communication.
Q5: What are the dimensions and weight of the RET615?
A5: The device measures 177 x 177 x 194 mm and weighs 3.5 kg.
Q6: What mounting options are available for RET615?
A6: RET615 supports flush, semi-flush, 25° tilted, wall-mounted, and 19” rack mounting installations.
Q7: How many inputs and outputs does RET615 have?
A7: RET615 offers 7 analog inputs (including neutral current), 8 or 14 binary inputs, and 10 or 13 binary outputs depending on the configuration.
Q8: What is the supported auxiliary power supply range?
A8: RET615 supports auxiliary supply ranges of 24–250 V DC and 100–240 V AC at 50/60 Hz.
