Technical Specifications
| Parameter | Specification |
|---|---|

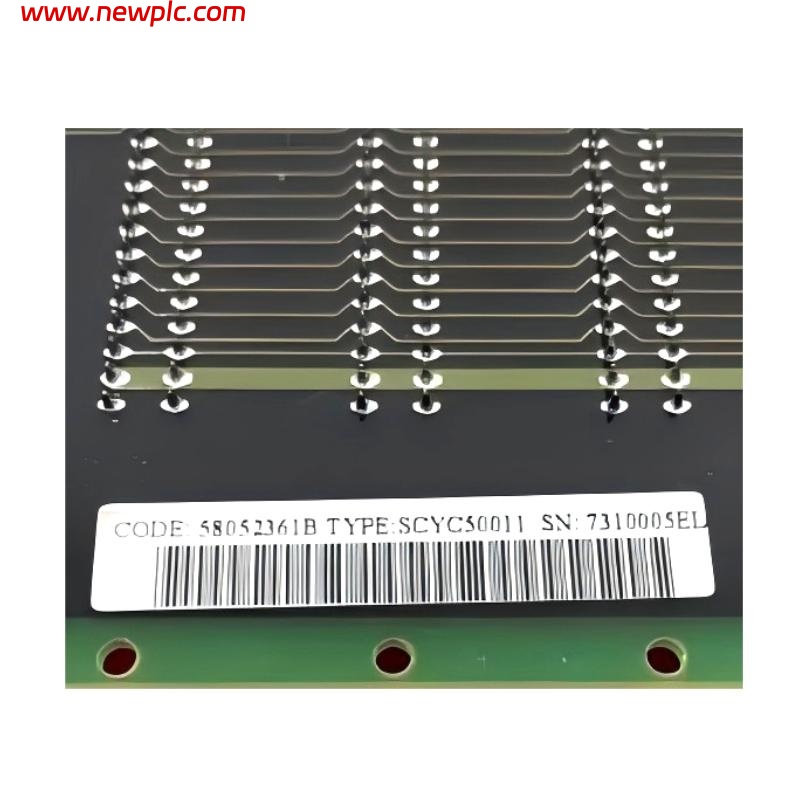

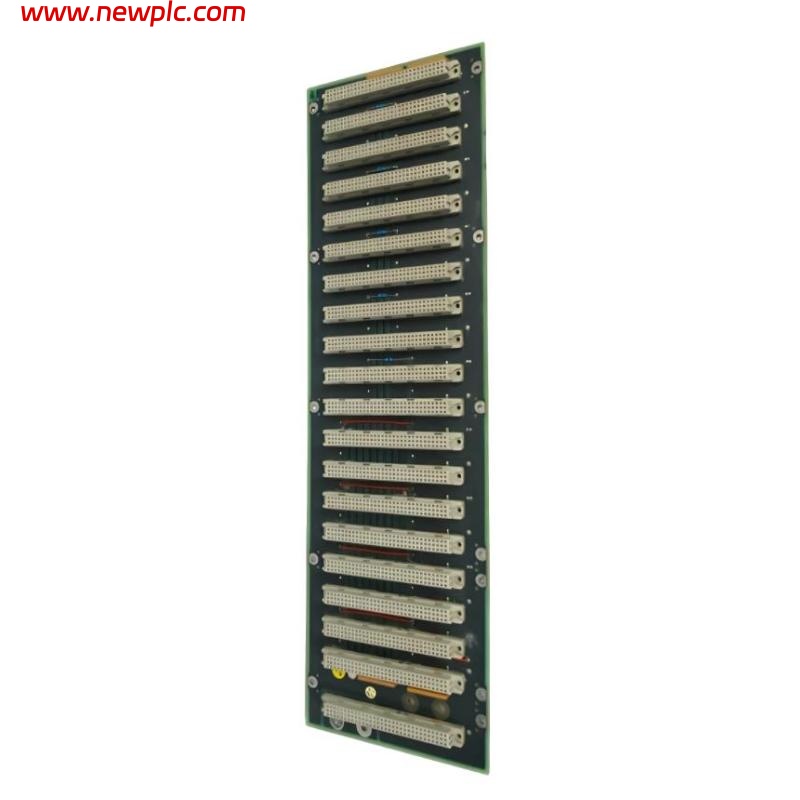

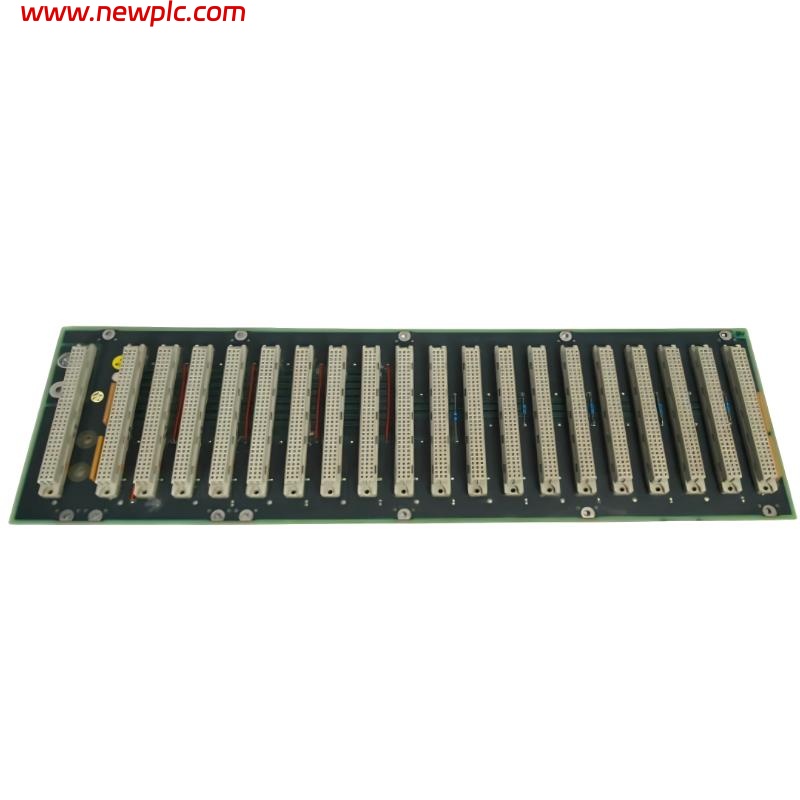

| Model Number | ABB SCYC50011 58052361B |
| Type | Driver Board |
| Function | Drives actuators, relays, or other control devices in ABB automation systems |
| Compatible Systems | ABB control and automation platforms |
| Input Voltage | 24 VDC nominal |
| Output Type | Digital or analog drive signals |
| Number of Channels | Multiple channels depending on system configuration |
| Protection Features | Overcurrent, short-circuit, and transient protection |
| Signal Isolation | Electrical isolation between input and output |
| Communication Interface | Backplane or system bus interface |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Method | Panel or rack mount |
| Dimensions (HxWxD) | 200 x 90 x 30 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the main function of the ABB SCYC50011 driver board?
A1: It provides drive outputs to control actuators, relays, or other connected devices in ABB automation systems.
Q2: What types of signals can this board output?
A2: The board can output digital or analog signals, depending on the system configuration.
Q3: How is the board powered?
A3: It operates on a nominal 24 VDC supply provided through the system backplane.
Q4: Does the board provide protection for connected devices?
A4: Yes, it includes overcurrent, short-circuit, and transient protection to safeguard connected devices.
Q5: Are the input and output signals isolated?
A5: Yes, electrical isolation is provided between input and output to enhance safety and reduce noise interference.
Q6: How is the board mounted in a control system?
A6: It can be mounted on a panel or installed in a rack, depending on system configuration.
Q7: Is any software configuration required before use?
A7: No, the board operates as a hardware module; configuration is managed through the automation system software.
Q8: Can this board be used in continuous operation environments?
A8: Yes, it is designed for continuous industrial use within its specified temperature and humidity ranges.
