Technical Specifications
| Parameter | Specification |
|---|---|

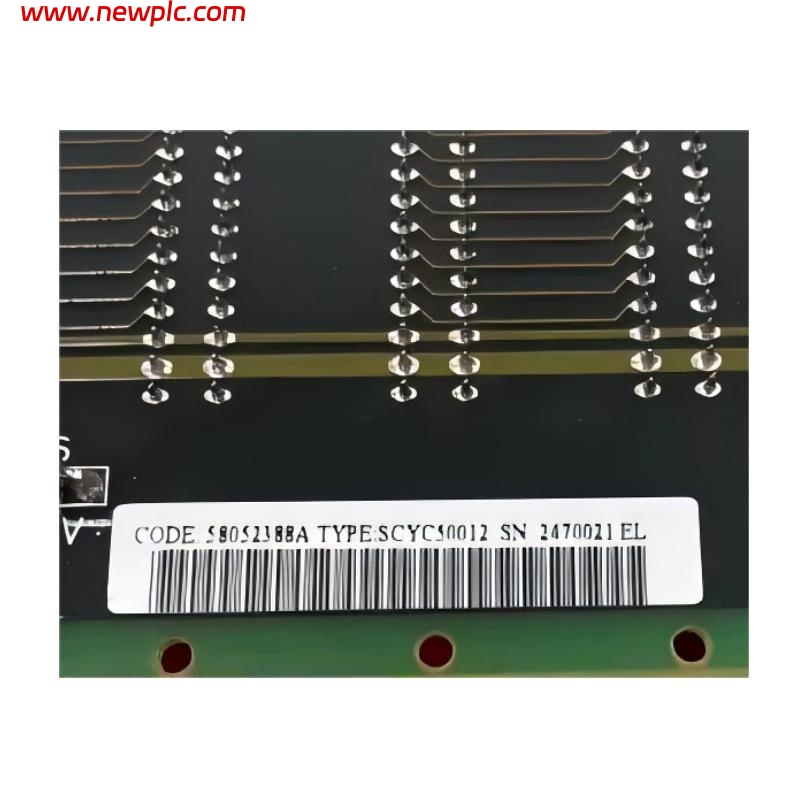

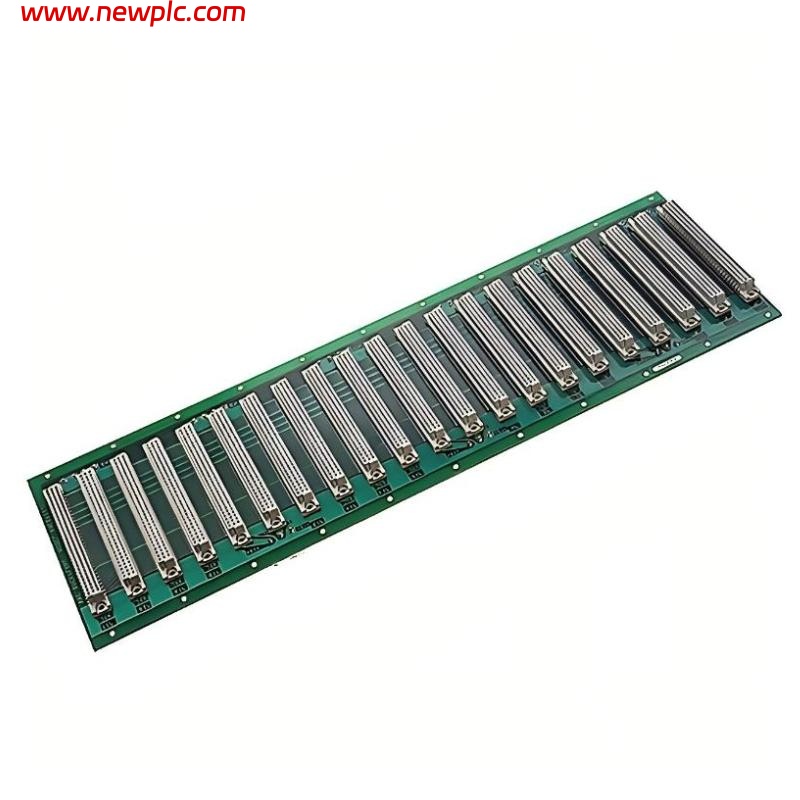

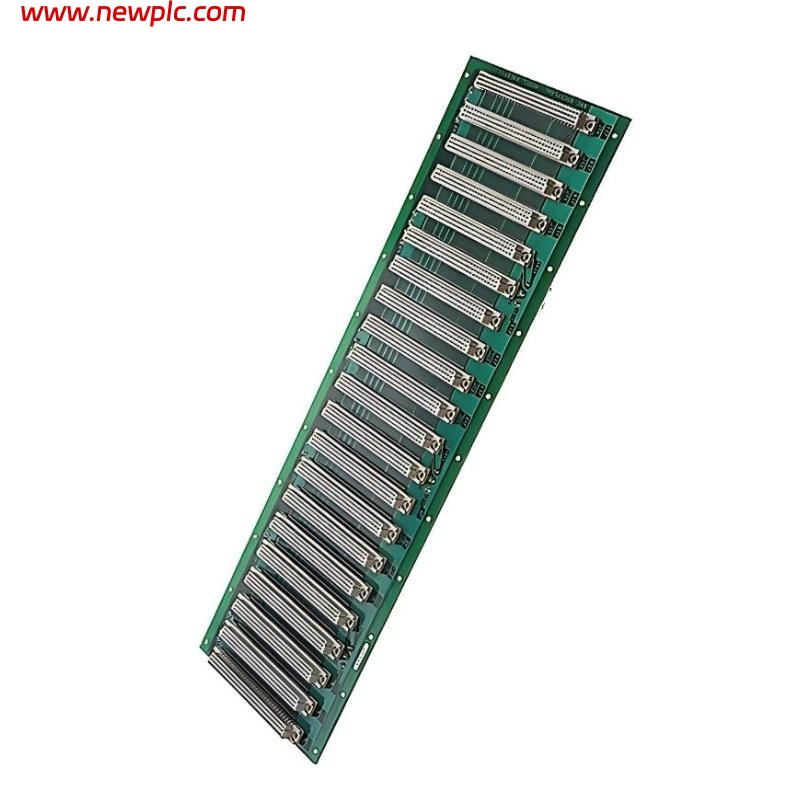

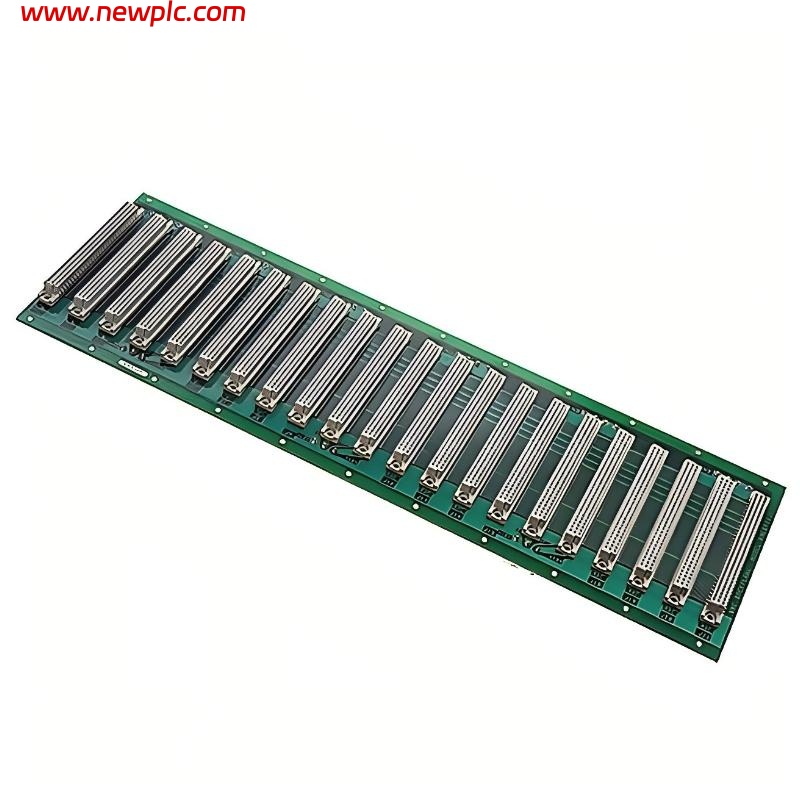

| Model Number | ABB SCYC50012 58052388A |
| Type | Driver Board |
| Function | Provides drive outputs for actuators, relays, and other control devices in ABB automation systems |
| Compatible Systems | ABB control and automation platforms |
| Input Voltage | 24 VDC nominal |
| Output Type | Digital or analog drive signals |
| Number of Channels | Multiple channels depending on system configuration |
| Protection Features | Overcurrent, short-circuit, and transient protection |
| Signal Isolation | Electrical isolation between input and output |
| Communication Interface | Backplane or system bus interface |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Method | Panel or rack mount |
| Dimensions (HxWxD) | 200 x 90 x 30 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the main purpose of the ABB SCYC50012 driver board?
A1: It delivers drive outputs to control actuators, relays, or other connected devices in ABB automation systems.
Q2: What types of outputs does the board provide?
A2: It supports digital or analog drive signals depending on system requirements.
Q3: How is the board powered?
A3: The board receives power via the 24 VDC supply from the system backplane.
Q4: Does the board protect connected devices?
A4: Yes, it includes overcurrent, short-circuit, and transient protection for all outputs.
Q5: Is there electrical isolation between inputs and outputs?
A5: Yes, the board provides isolation to improve safety and reduce electrical noise.
Q6: How is the board mounted in a control system?
A6: It can be mounted on a panel or installed in a rack according to system configuration.
Q7: Is configuration required before operation?
A7: No local configuration is needed; the board functions as a hardware module, with system settings controlled via the ABB automation software.
Q8: Can the board operate continuously in industrial environments?
A8: Yes, it is designed for continuous use within the specified temperature and humidity ranges.
