Technical Specifications
| Parameter | Specification |
|---|---|

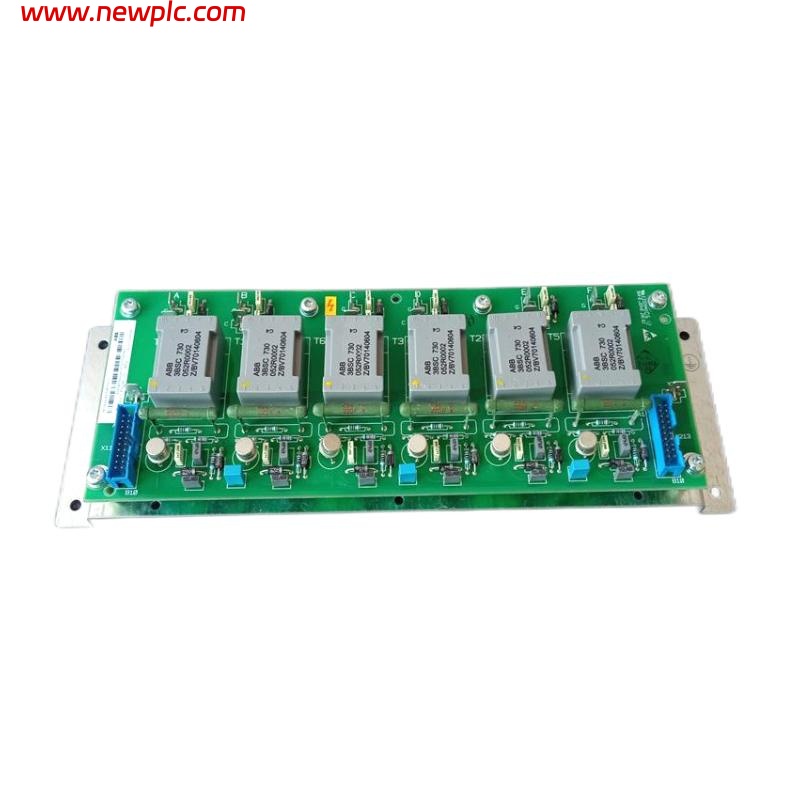

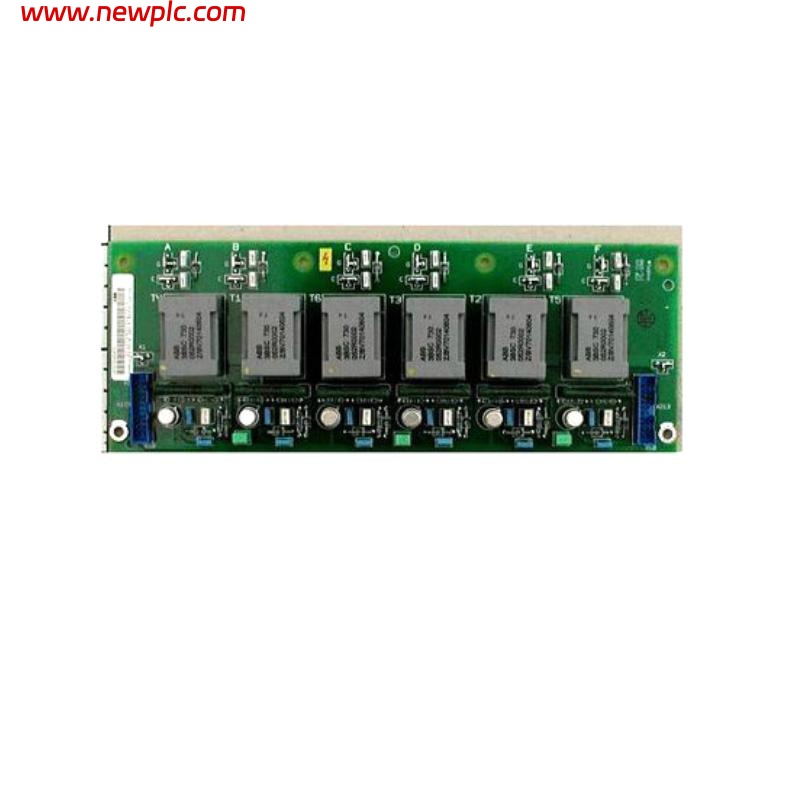

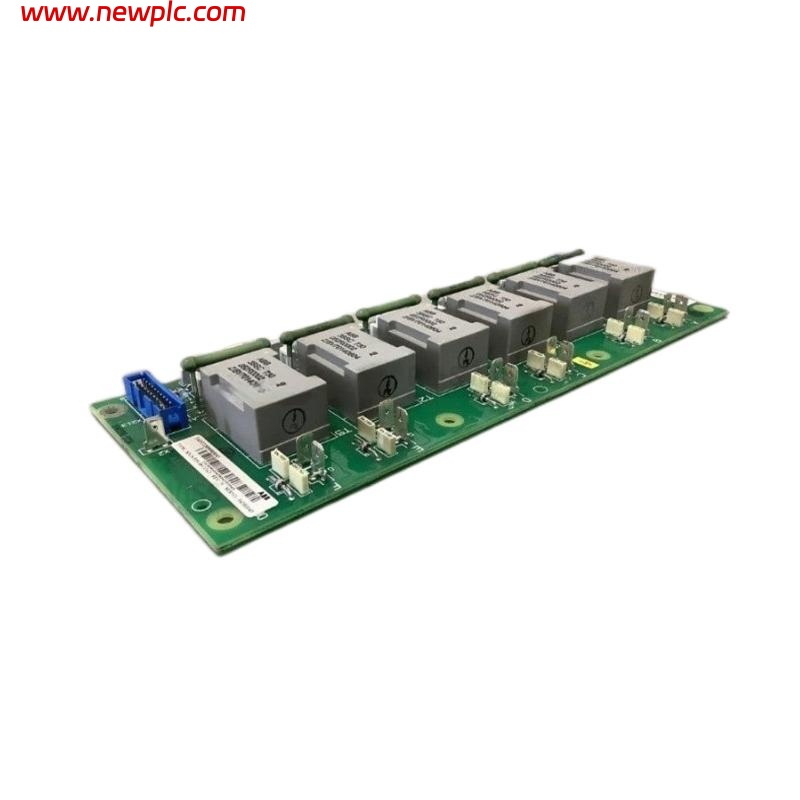

| Product Name | ABB SDCS-PIN48-SD Pulse Transformer Board |
| Model | 3ADT220090R0043 |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Max Input Current | 2 A |
| Max Output Current | 2 A |
| Dimensions | 265 x 110 x 40 mm |
| Weight | 0.328 kg |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Power Type | DC Input |
| Protection Rating | IP20 |
| Input Wiring Type | Screw Terminal Block |
| Output Wiring Type | Screw Terminal Block |
FAQ
FAQ
Q1: What is the input voltage of this pulse transformer board?
A1: The input voltage is 24 V DC.
Q2: What is the output voltage?
A2: The output voltage is 24 V DC.
Q3: What is the maximum input current?
A3: The maximum input current is 2 A.
Q4: What is the operating temperature range for this pulse transformer board?
A4: The operating temperature range is -20°C to +60°C.
Q5: What is the protection rating of the pulse transformer board?
A5: The protection rating is IP20, suitable for low-dust environments.
Q6: What is the wiring type for both the input and output?
A6: Both input and output use screw terminal blocks.
Q7: Does this pulse transformer board include overload protection?
A7: Yes, it includes overload protection to ensure safe operation.
Q8: What voltage range does the pulse transformer board support?
A8: The board supports only 24 V DC input.
