Technical Specifications
| Parameter | Specification |
|---|---|

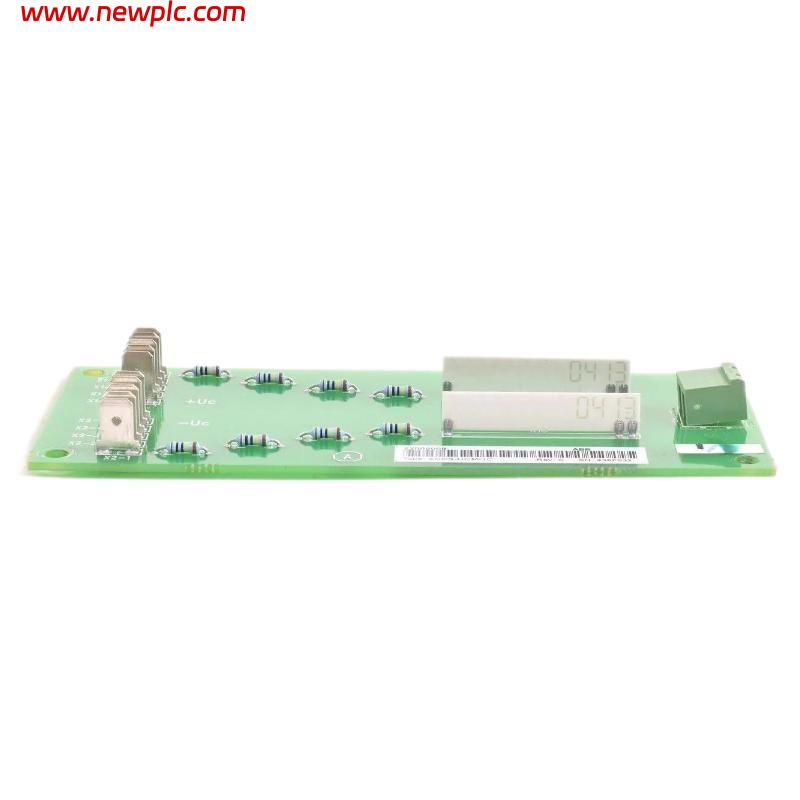

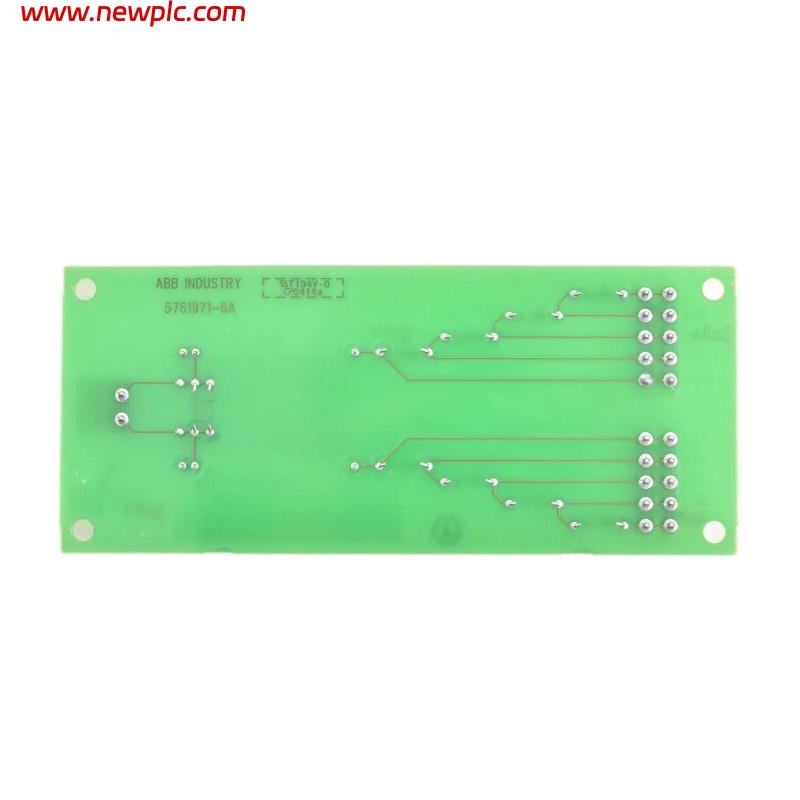

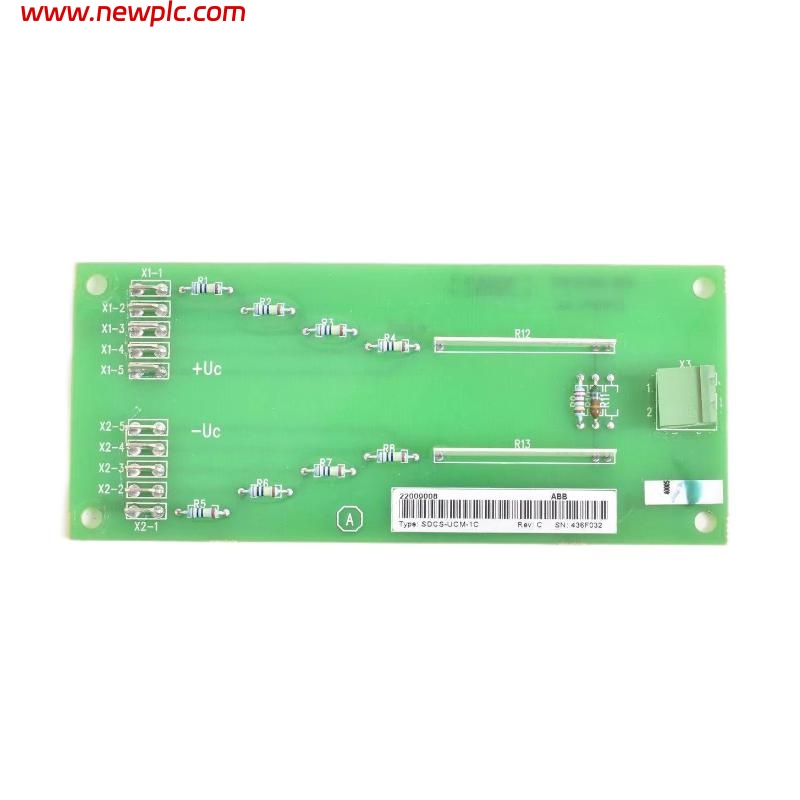

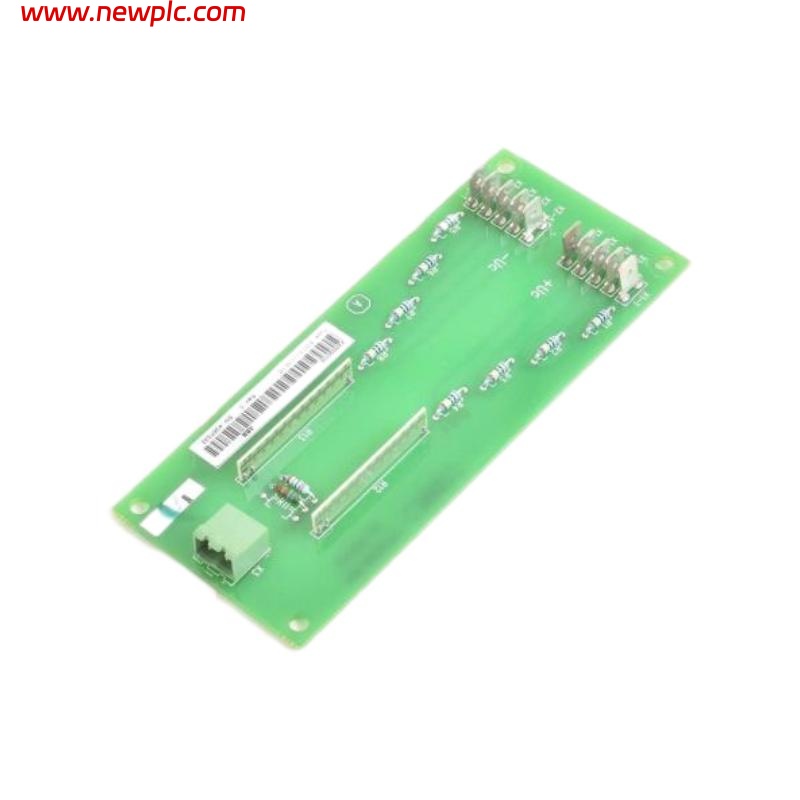

| Product Name | ABB SDCS-UCM-1C Measurement Board |
| Model | 3ADT220090R0008 |
| Input Voltage | 24 V DC |
| Output Voltage | 5 V DC |
| Max Input Current | 1 A |
| Max Output Current | 1 A |
| Dimensions | 220 x 110 x 30 mm |
| Weight | 0.3 kg |
| Operating Temp. | -20°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Power Type | DC Input |
| Interface Type | Pluggable Connector |
| Protection Rating | IP20 |
| Input Wiring Type | Screw Terminal Block |
| Output Wiring Type | Screw Terminal Block |
FAQ
FAQ
Q1: What is the input voltage of this measurement board?
A1: The input voltage is 24 V DC.
Q2: What is the output voltage?
A2: The output voltage is 5 V DC.
Q3: What is the maximum input current?
A3: The maximum input current is 1 A.
Q4: What is the operating temperature range for this measurement board?
A4: The operating temperature range is -20°C to +60°C.
Q5: What is the protection rating of the measurement board?
A5: The protection rating is IP20, suitable for low-dust environments.
Q6: What is the wiring type for the input and output?
A6: Both input and output use screw terminal blocks.
Q7: Does this measurement board include overload protection?
A7: Yes, it includes overload protection to ensure safe operation.
Q8: Does this device have current isolation functionality?
A8: Yes, this device supports current isolation to ensure accurate signal transmission.
