Technical Specifications
| Parameter | Specification |
|---|---|

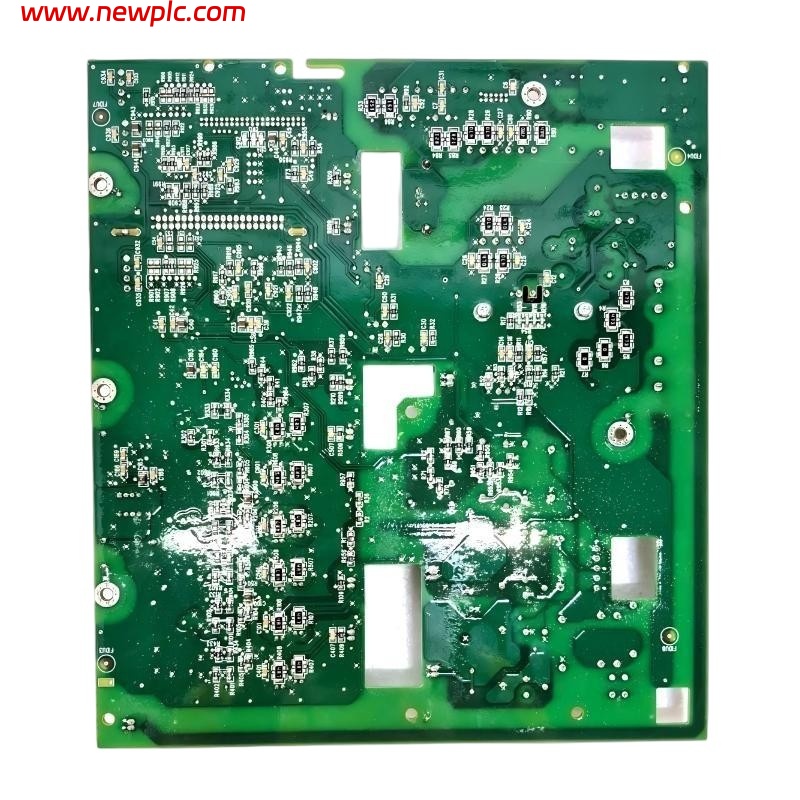

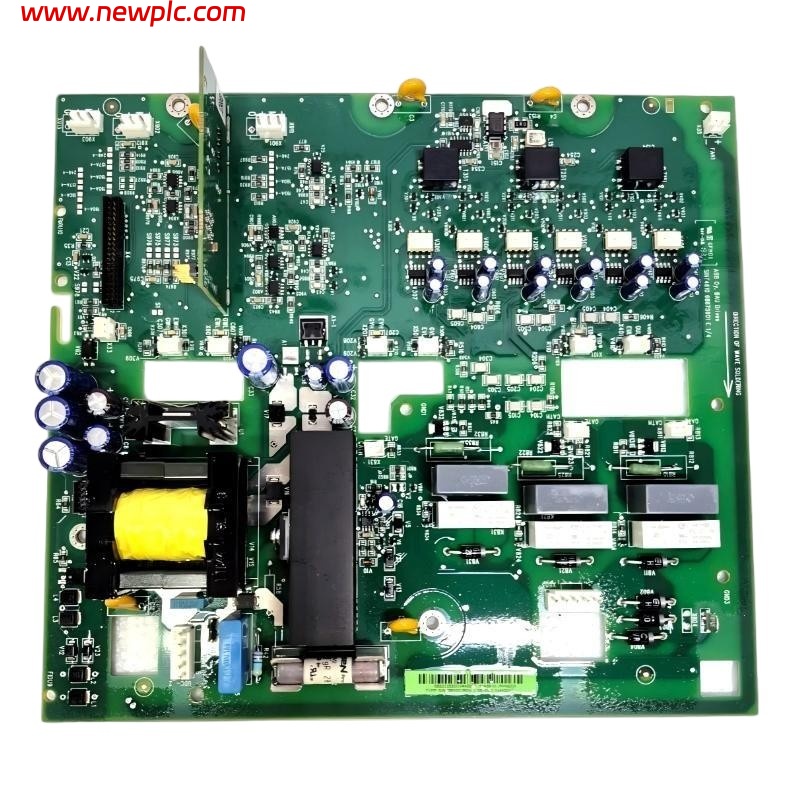

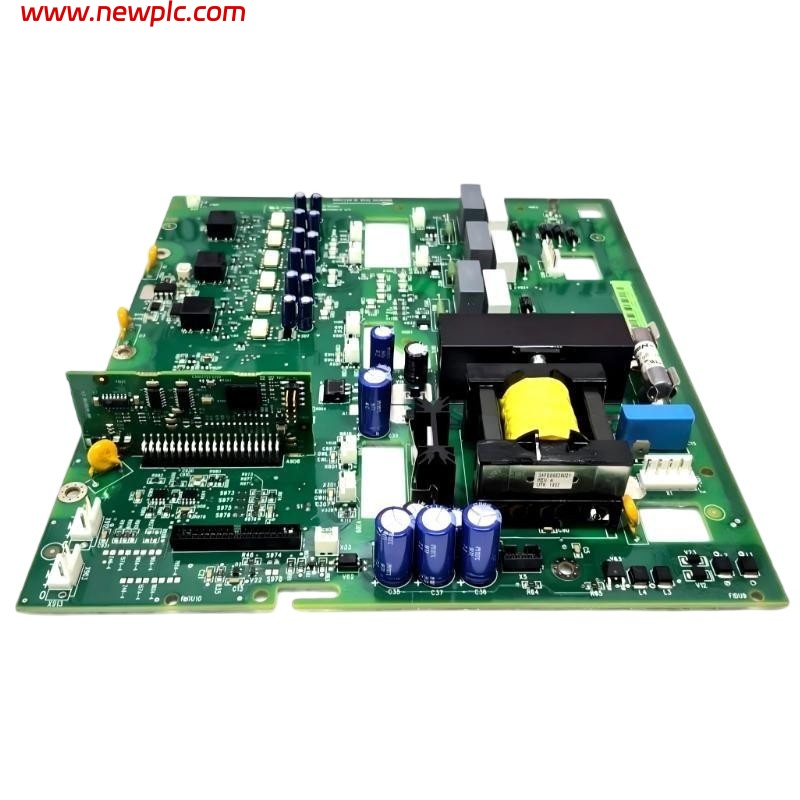

| Product Model | ABB SINT4610C |
| Product ID | 68646618 |
| Product Type | Interface / Signal Module |
| Application | Medium-voltage contactor and switchgear systems |
| Function | Provides signal processing and interface for control and feedback circuits |
| Compatible Equipment | ABB VSC/VCS medium-voltage contactors and switchgear |
| Control Voltage | 24 V DC (typical) |
| Signal Type | Digital control and feedback signals |
| Installation Type | Plug-in control module |
| Mounting Location | Installed inside the switchgear or contactor control compartment |
| Cooling Method | Passive cooling via enclosure airflow |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | Approximately 160 × 95 × 35 mm |
| Weight | Approximately 0.34 kg |
| Protection Class | Dependent on enclosure, typically IP20 |
| Compliance Standards | IEC switchgear standards, CE, RoHS |
FAQ
FAQ
Q1. What is the main function of the SINT4610C module?
It serves as a signal interface and processing module, managing digital control and feedback signals in medium-voltage contactor systems.
Q2. Which ABB equipment is this module compatible with?
The module is compatible with ABB VSC and VCS series medium-voltage contactors and switchgear.
Q3. What control voltage does it operate on?
The module typically operates at 24 V DC for control circuits.
Q4. Can this module be replaced independently?
Yes. It is modular and can be replaced without replacing the entire switchgear unit.
Q5. Where is the module installed?
It is installed inside the control compartment of the contactor or switchgear enclosure.
Q6. Does the SINT4610C require active cooling?
No. It relies on passive cooling via airflow inside the switchgear enclosure.
Q7. What operating and storage conditions are recommended?
The module operates between -25°C and +70°C and can be stored at temperatures from -40°C to +85°C.
Q8. What precautions should be taken during installation?
Power must be fully disconnected, and electrostatic discharge (ESD) protection should be used to prevent damage to the module.
