Technical Specifications
| Parameter | Specification |
|---|---|

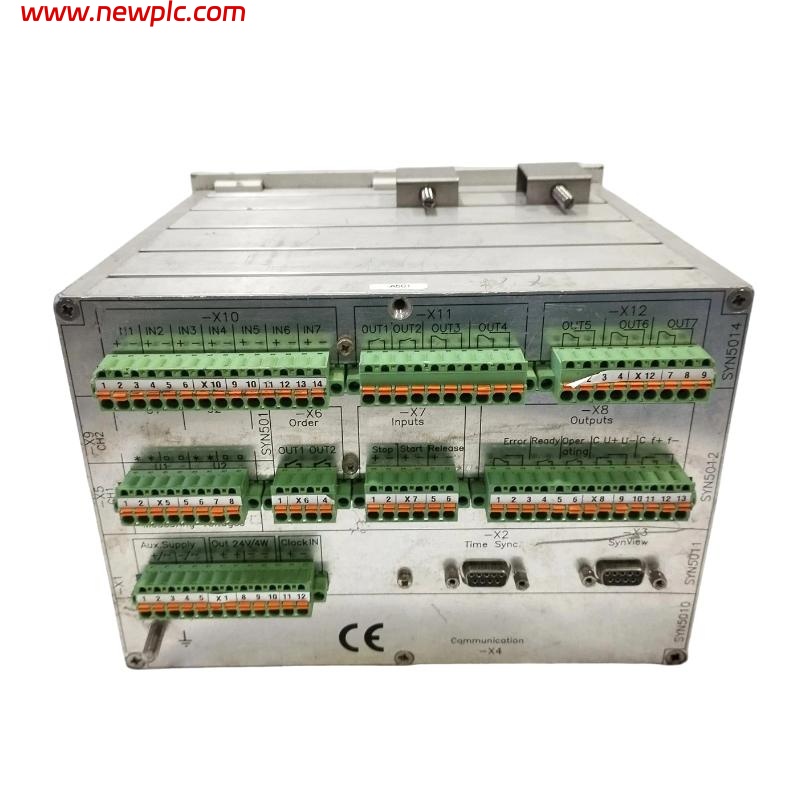

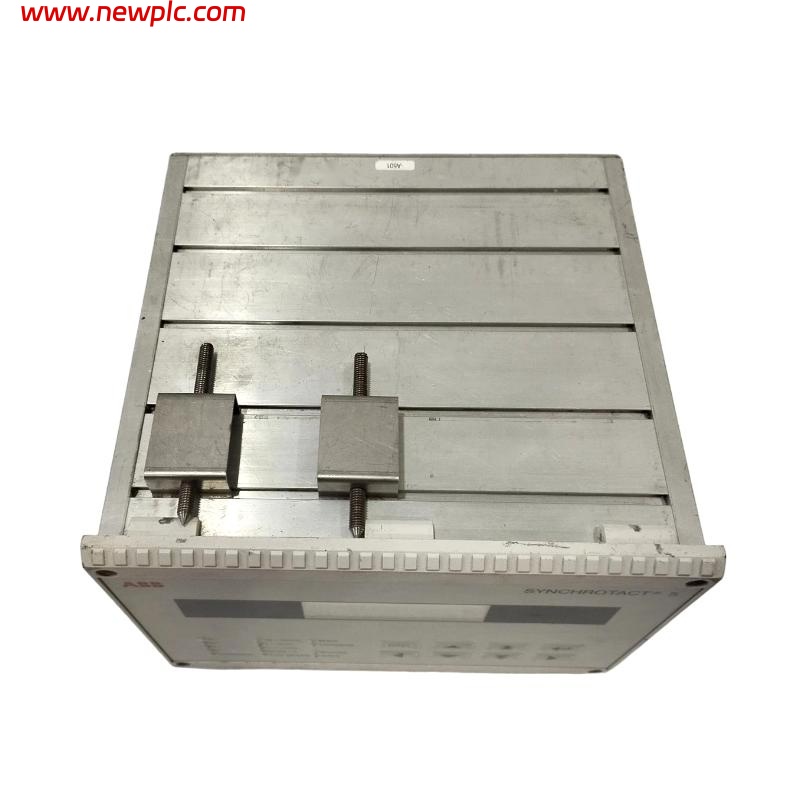

| Model | ABB SYN 5201a-Z,V217 3BHB006714R0217 |
| Type | Synchronization Device |
| Function | Provides precise synchronization between generators and grid systems |
| Application | Used in power generation, turbine control, and industrial automation |
| Supply Voltage | 24 V DC nominal |
| Power Consumption | Approx. 10 W |
| Synchronization Inputs | Generator voltage, grid voltage, and phase reference signals |
| Output Signals | Relay contacts for breaker control and synchronization command |
| Synchronizing Range | Frequency difference ≤ ±2 Hz; Voltage difference ≤ ±10% |
| Phase Angle Range | 0°–360° |
| Accuracy | ±0.5° phase matching accuracy |
| Communication Interface | RS-485 / Modbus RTU |
| Isolation Protection | Galvanic isolation between input, output, and communication circuits |
| Indication | LED indicators for status, operation, and fault diagnostics |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Mounting Type | Panel or DIN rail mounting |
| Protection Class | IP20 |
| Compliance | IEC 60255, CE, and UL standards |
| Dimensions | 226 × 171 × 220 mm |
| Weight | 4 kg |
FAQ
FAQ
Q1: What is the main application of the ABB SYN 5201a-Z,V217 device?
A1: The SYN 5201a-Z,V217 is used for synchronizing generators with the electrical grid to ensure voltage, frequency, and phase alignment before connection.
Q2: How does this model differ from the SYN 5201a-Z,V211 version?
A2: The V217 model includes enhanced synchronization algorithms and improved communication reliability for modern grid integration.
Q3: What input signals are required for synchronization?
A3: It requires generator voltage, grid voltage, and a phase reference signal for precise synchronization control.
Q4: What communication interface does the SYN 5201a-Z,V217 support?
A4: It supports RS-485 communication using the Modbus RTU protocol for system monitoring and remote configuration.
Q5: How accurate is the synchronization control of this device?
A5: The synchronization process achieves ±0.5° phase accuracy with a frequency tolerance of ±2 Hz.
Q6: Does the device include self-diagnostic capabilities?
A6: Yes, it includes continuous self-diagnostic features with LED indication for fault detection and operational monitoring.
Q7: Can it be used in multi-generator synchronization systems?
A7: Yes, the device supports multi-generator configurations, making it ideal for complex power station setups.
Q8: What type of electrical isolation is implemented in this model?
A8: It provides full galvanic isolation between input, output, and communication sections to ensure system safety and noise immunity.
