Technical Specifications
| Parameter | Specification |
|---|---|

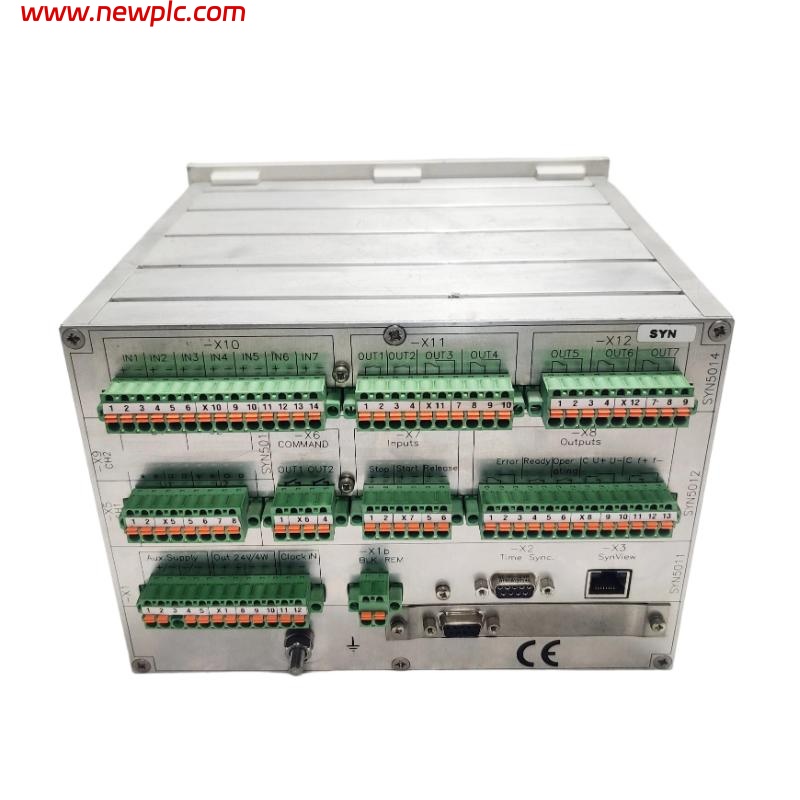

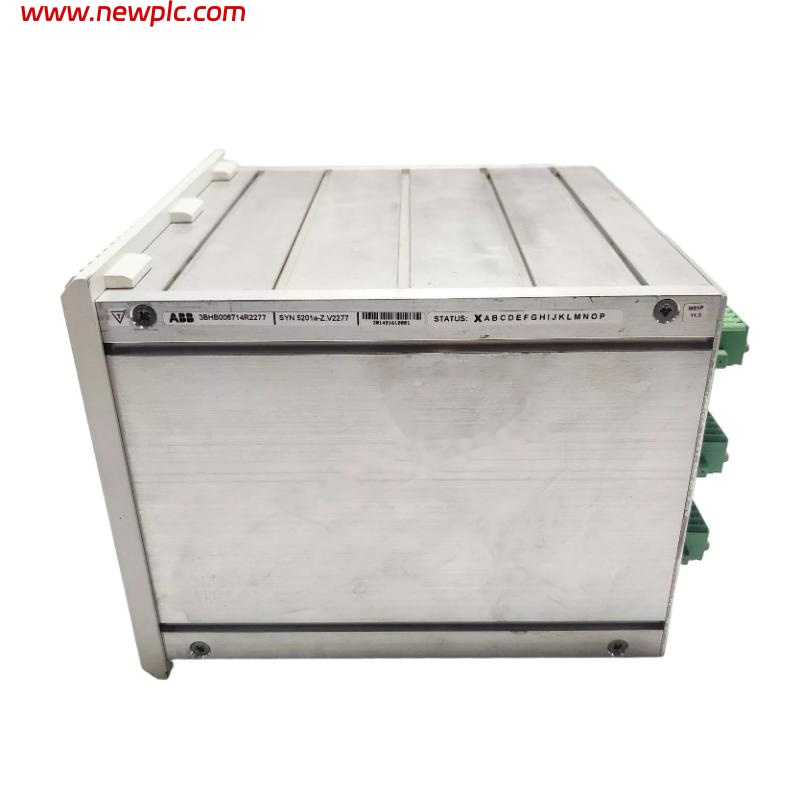

| Model | ABB SYN 5201a-Z,V2277 3BHB006714R2277 |
| Type | Synchronization Device |
| Function | Synchronizes generator and grid systems for phase, frequency, and voltage matching |
| Application | Power generation systems, turbine synchronization, and grid connection control |
| Supply Voltage | 24 V DC nominal |
| Power Consumption | Approx. 10 W |
| Synchronization Inputs | Generator voltage, grid voltage, and frequency reference |
| Output Signals | Relay outputs for breaker control and synchronization command |
| Synchronizing Range | Frequency difference ≤ ±2 Hz; Voltage difference ≤ ±10% |
| Phase Angle Range | 0°–360° |
| Synchronization Accuracy | ±0.5° phase deviation |
| Communication Interface | RS-485 / Modbus RTU |
| Isolation Protection | Galvanic isolation between input, output, and communication circuits |
| Indicators | LEDs for power, sync status, operation, and fault diagnostics |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Mounting Type | Panel or DIN rail mounting |
| Protection Class | IP20 |
| Standards Compliance | IEC 60255, CE, and UL approved |
| Dimensions | 226 × 171 × 220 mm |
| Weight | 4 kg |
FAQ
FAQ
Q1: What is the purpose of the ABB SYN 5201a-Z,V2277 device?
A1: It ensures precise synchronization between a generator and the power grid by aligning voltage, frequency, and phase before connection.
Q2: What improvements does the V2277 version offer compared to earlier models?
A2: The V2277 model provides enhanced synchronization speed, higher processing stability, and extended communication diagnostics.
Q3: What types of inputs does this synchronization device require?
A3: It requires generator voltage, grid voltage, and frequency reference inputs for accurate phase alignment.
Q4: What communication protocol is supported by the SYN 5201a-Z,V2277?
A4: It supports RS-485 communication with the Modbus RTU protocol for real-time system control and monitoring.
Q5: What is the synchronization accuracy of this device?
A5: The synchronization precision is within ±0.5° phase deviation and ±2 Hz frequency difference.
Q6: Does the device include fault or status indication?
A6: Yes, the device includes LED indicators for synchronization status, operational condition, and fault detection.
Q7: Can the SYN 5201a-Z,V2277 be used in multiple generator systems?
A7: Yes, it is suitable for multi-generator synchronization applications, commonly found in complex power plant systems.
Q8: How does the isolation protection enhance reliability?
A8: The galvanic isolation between input, output, and communication channels protects against electrical noise and ground loops, improving system stability.
