Technical Specifications
| Parameter | Specification |
|---|---|

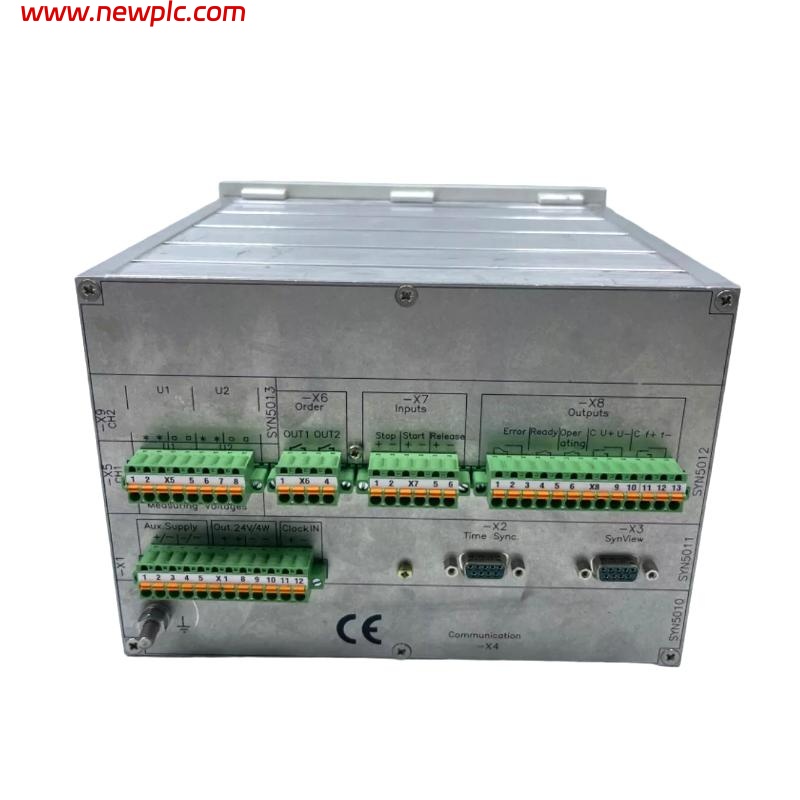

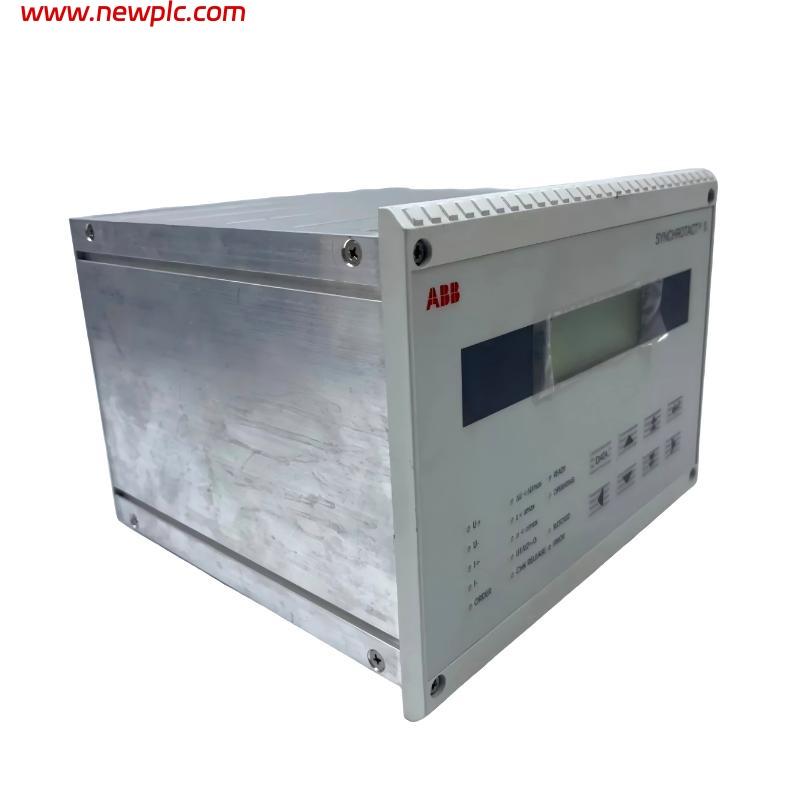

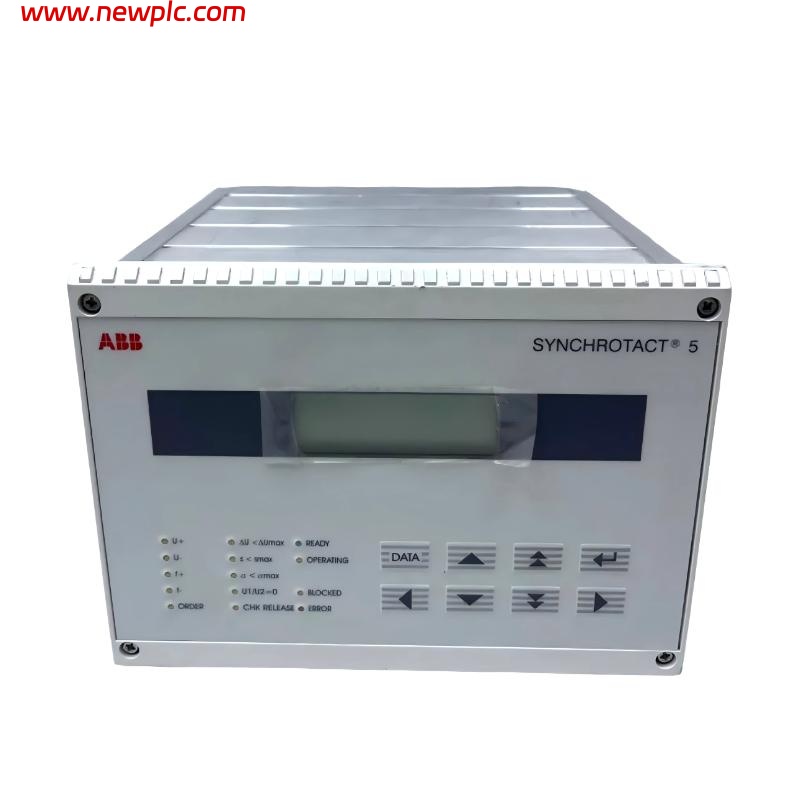

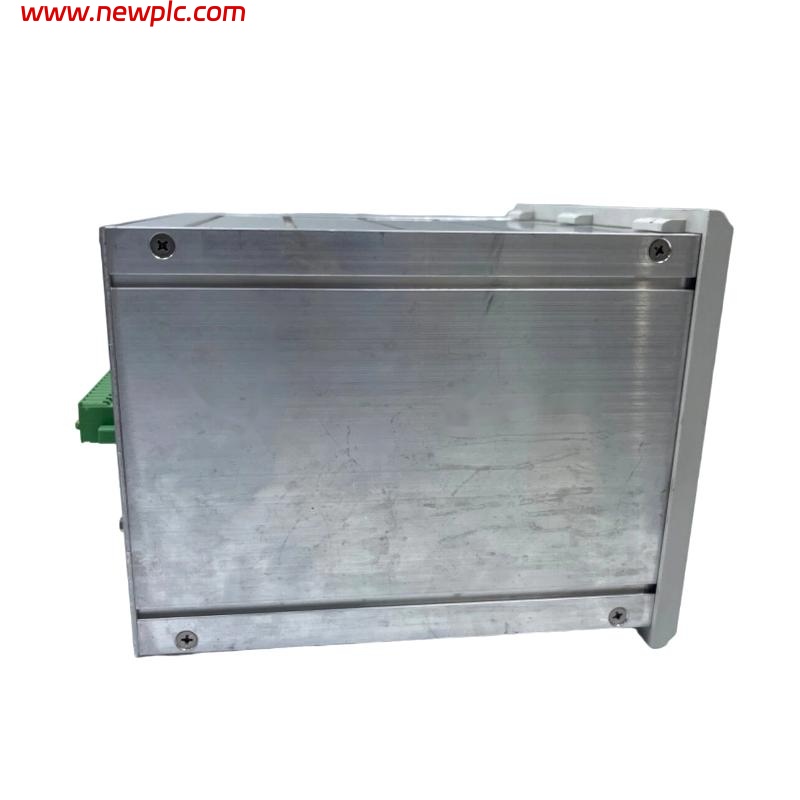

| Model | ABB SYN 5202a-Z,V221 3BHB006715R0221 |
| Type | Synchronization Device |
| Function | Automatic synchronization of generator and power grid systems |
| Application | Generator control panels, turbine synchronization, and grid tie operations |
| Supply Voltage | 24 V DC nominal |
| Power Consumption | Approx. 10 W |
| Synchronization Inputs | Generator voltage, grid voltage, and frequency inputs |
| Output Signals | Relay outputs for synchronization command and breaker operation |
| Synchronizing Range | Frequency difference ≤ ±2 Hz; Voltage difference ≤ ±10% |
| Phase Angle Range | 0°–360° |
| Synchronization Accuracy | ±0.5° phase deviation |
| Communication Interface | RS-485 / Modbus RTU |
| Isolation Protection | Galvanic isolation between inputs, outputs, and communication ports |
| Indicators | LEDs for power, synchronization status, operation, and fault monitoring |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% RH, non-condensing |
| Mounting Type | Panel or DIN rail mounting |
| Protection Class | IP20 |
| Standards Compliance | IEC 60255, CE, and UL certified |
| Dimensions | 226 × 171 × 220 mm |
| Weight | 4 kg |
FAQ
FAQ
Q1: What is the main function of the ABB SYN 5202a-Z,V221 device?
A1: It automatically synchronizes generators with the grid by matching voltage, frequency, and phase angle to ensure smooth power connection.
Q2: What differentiates the SYN 5202a-Z,V221 from the SYN 5201a series?
A2: The V221 version provides improved synchronization response and better harmonic immunity for high-precision applications.
Q3: What type of input signals does the device support?
A3: It supports generator and grid voltage inputs, as well as frequency reference inputs for accurate synchronization control.
Q4: Which communication protocols are supported?
A4: The device supports RS-485 communication using the Modbus RTU protocol for data exchange with control systems.
Q5: What is the synchronization accuracy of this unit?
A5: The ABB SYN 5202a-Z,V221 achieves a synchronization accuracy of ±0.5° phase deviation and ±2 Hz frequency difference.
Q6: Does the device provide any visual indicators for operation?
A6: Yes, it features LED indicators that show synchronization progress, operational status, and any detected faults.
Q7: Can it be integrated into multi-generator systems?
A7: Yes, it is fully compatible with multi-generator configurations and supports coordinated synchronization in complex power systems.
Q8: How does the galvanic isolation improve the device’s performance?
A8: The galvanic isolation minimizes electrical interference and prevents ground loop issues, ensuring stable and accurate synchronization operation.
