Technical Specifications
| Item | Description |
|---|---|

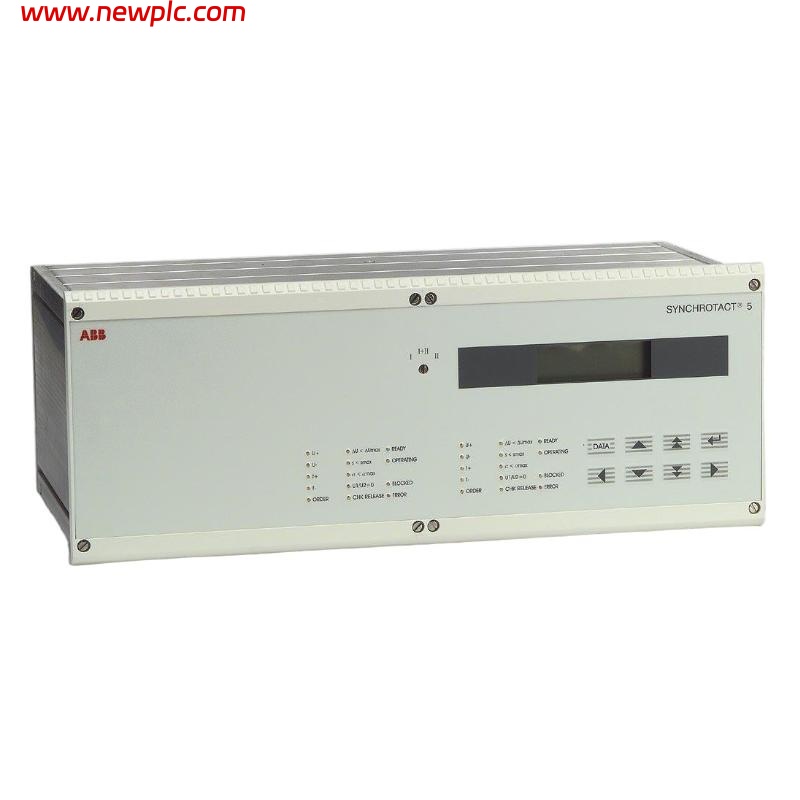

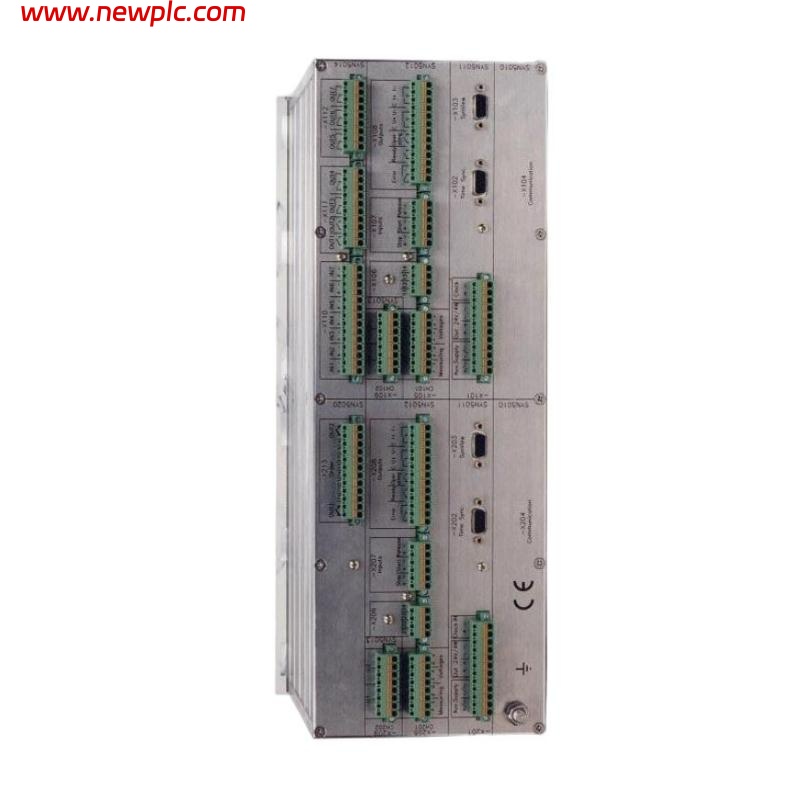

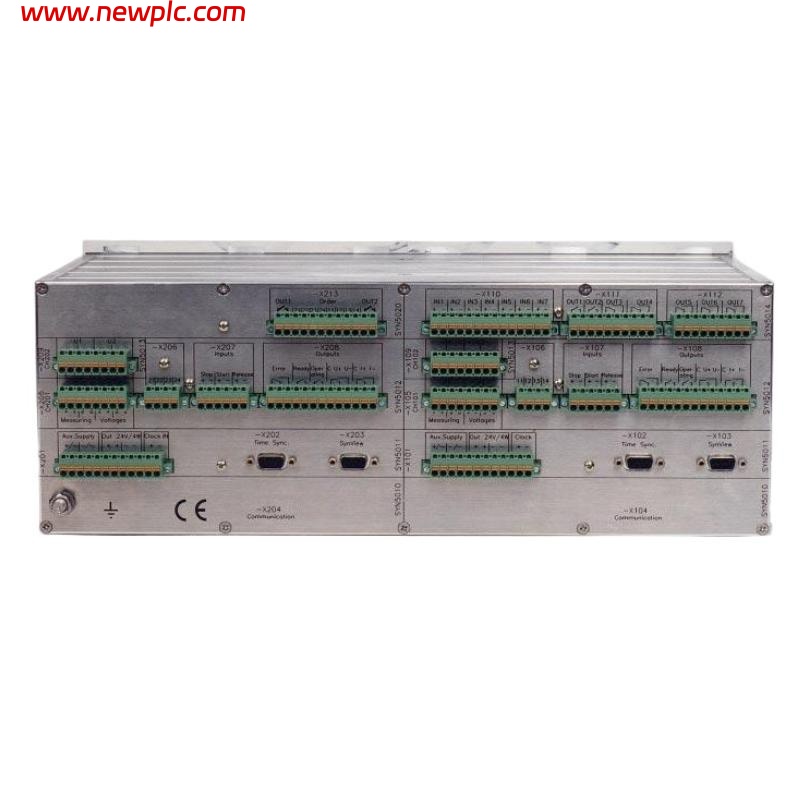

| Product Model | ABB SYN5302-0277 |
| Product Type | Synchronizer Module |
| Manufacturer | ABB |
| Function | Ensures synchronization between generator and grid systems |
| Input Voltage | 24 V DC |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to 70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Synchronization Range | 45 to 65 Hz |
| Phase Accuracy | ±1° |
| Voltage Matching Accuracy | ±2% |
| Frequency Deviation Tolerance | ±0.1 Hz |
| Response Time | <50 ms |
| Mounting Type | Rack-mounted |
| Compatibility | ABB generator control systems |
| Communication Interface | Standard industrial communication bus |
| Protection Type | Overvoltage, overcurrent, and reverse connection protection |
| Dimensions | 447 × 171 × 200 mm |
| Weight | 8.0 kg |
FAQ
FAQ
Q1: What is the main function of the ABB SYN5302-0277 Synchronizer?
It synchronizes the voltage, frequency, and phase between a generator and the power grid for seamless power transfer.
Q2: What type of systems can this synchronizer be used with?
It is designed for use with ABB generator control systems and compatible automation equipment.
Q3: Does the ABB SYN5302-0277 require external cooling?
No, it relies on natural convection for heat dissipation.
Q4: What is the typical synchronization accuracy?
It offers a phase accuracy of ±1° and a voltage matching tolerance within ±2%.
Q5: Can it be integrated into existing ABB control systems?
Yes, it is fully compatible with ABB’s standard control and protection modules.
Q6: Is this device suitable for harsh industrial environments?
Yes, it operates reliably within 0–55°C and up to 95% relative humidity.
Q7: Are special tools required for installation?
No, standard mounting and electrical tools are sufficient for installation.
Q8: Does ABB provide a user manual or installation guide?
Yes, a detailed installation and operation manual is provided with the product.
