Technical Specifications
| Parameter | Value |
|---|---|

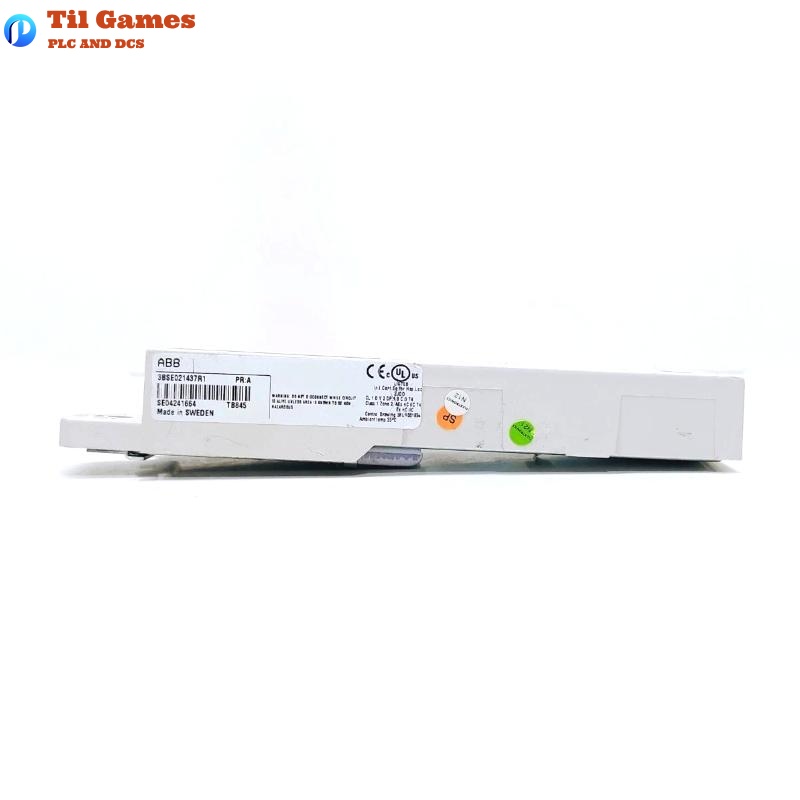

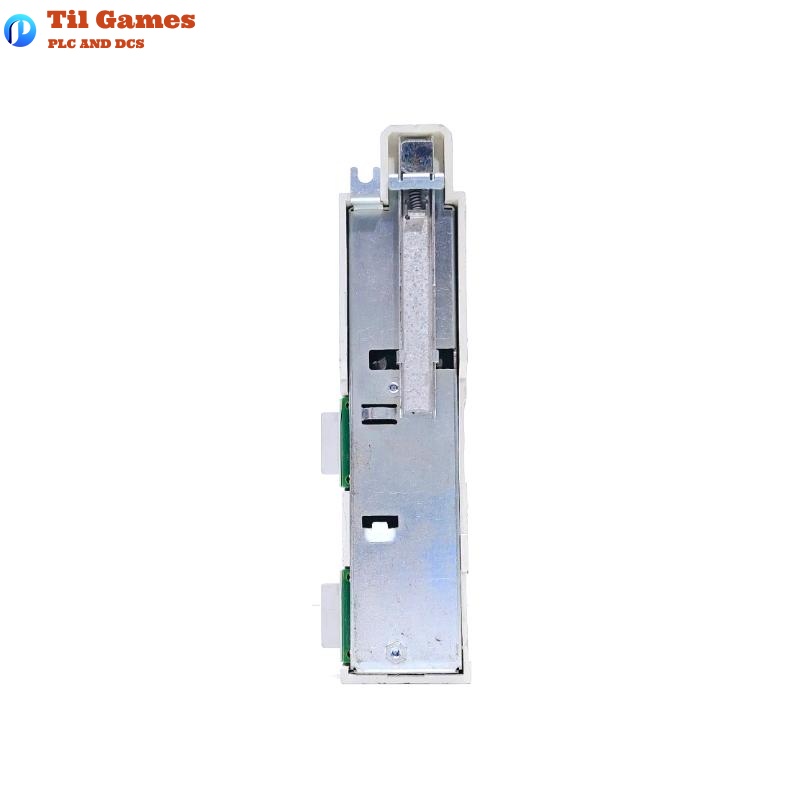

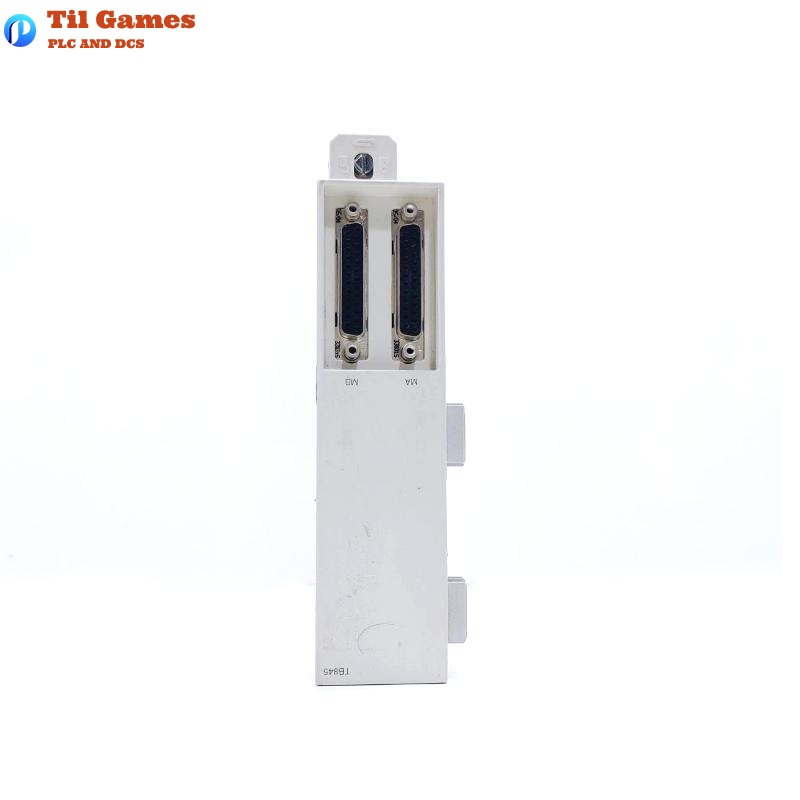

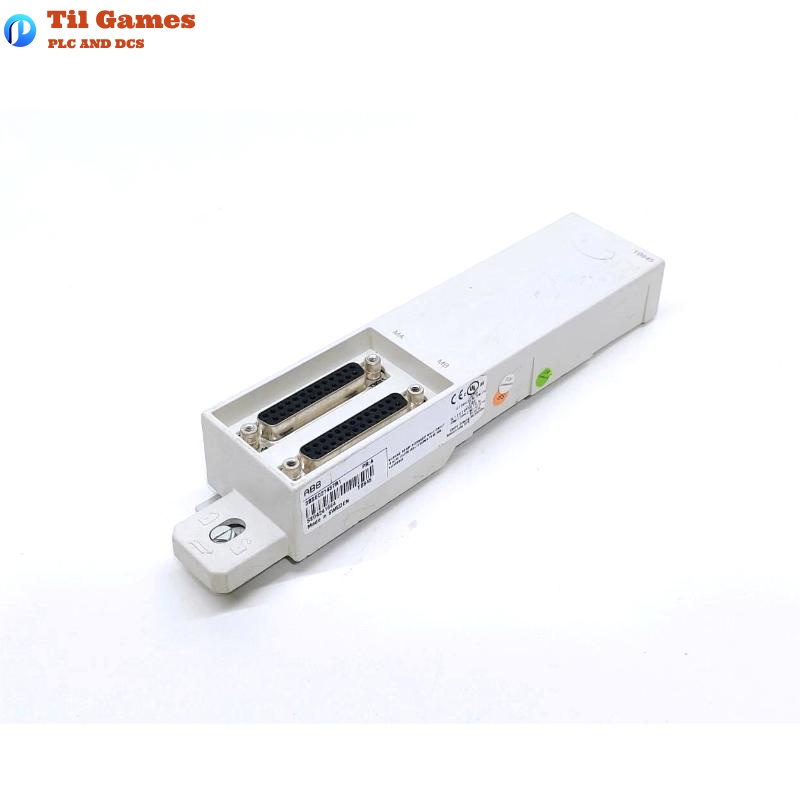

| Product Name | TB845 Redundant ModuleBus Cable Adaptor |
| Article Number | 3BSE021437R1 |
| Mechanics | S800 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (IEC 60529) |
| Pollution Degree | Degree 2 (IEC 60664-1) |
| Overvoltage Category | IEC/EN 60664-1 |
| Equipment Class | Class I (IEC 61140, Earth Protected) |
| Electrical Safety Standards | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| EMC Standards | EN 61000-6-4, EN 61000-6-2 |
| Corrosion Protection | ISA-S71.04: G3 |
| Hazardous Location Compliance | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certifications | ABS, BV, DNV, LR |
| RoHS Compliance | Directive 2011/65/EU (EN 50581:2012) |
| WEEE Compliance | Directive 2012/19/EU |
| Dimensions (W × D × H) | 43 × 31.5 × 186 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What system is TB845 used in?
A1: TB845 is used in the ABB Ability™ System 800xA as a redundant ModuleBus cable adaptor.
Q2: What is the main function of TB845?
A2: It extends the ModuleBus in conjunction with TB846 and two TK801V0xx cables, allowing I/O modules to be mounted on separate DIN rails.
Q3: Is TB845 suitable for hazardous locations?
A3: Yes, it complies with C1 Div 2 cULus, C1 Zone 2 cULus, and ATEX Zone 2 certifications.
Q4: What is the operating temperature range for TB845?
A4: The operating temperature is 0 to +55°C, and the storage temperature is -25 to +70°C.
Q5: What is the protection class of TB845?
A5: TB845 has an IP20 protection class according to IEC 60529.
Q6: What EMC standards does TB845 comply with?
A6: It complies with EN 61000-6-4 and EN 61000-6-2 standards.
Q7: Is TB845 certified for marine applications?
A7: Yes, it has certifications from ABS, BV, DNV, and LR.
Q8: What are the dimensions and weight of TB845?
A8: The dimensions are 43 × 31.5 × 186 mm, and the weight is 0.18 kg.
