Technical Specifications
| Parameter | Specification |
|---|---|

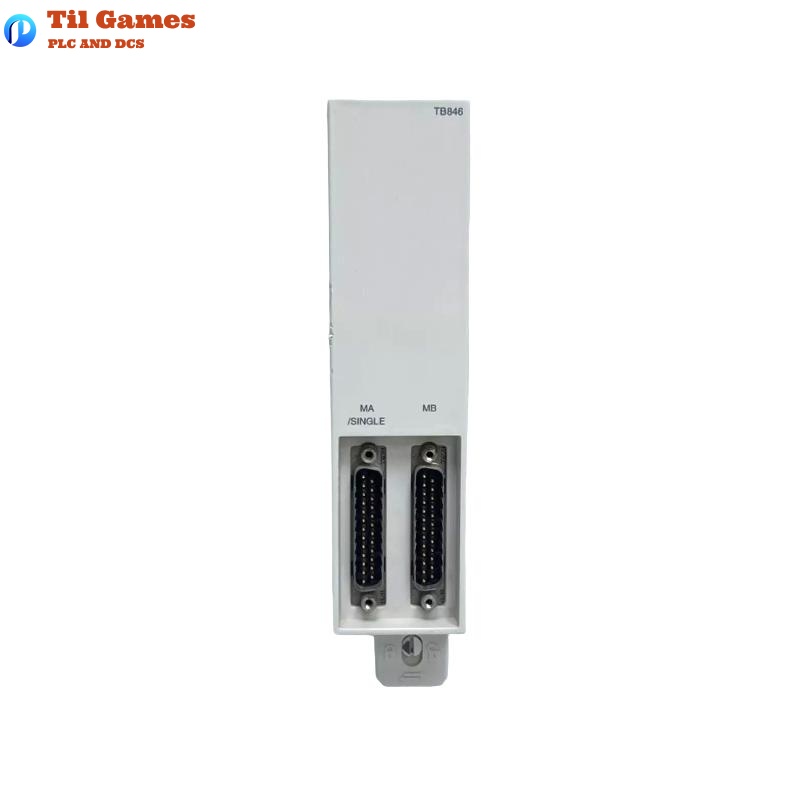

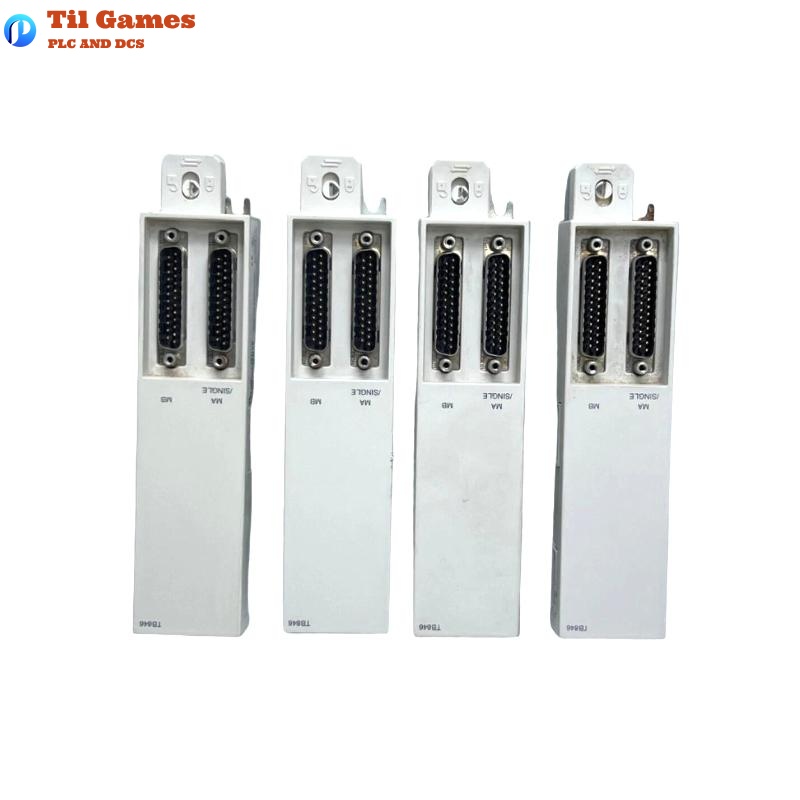

| Product Name | TB846 Redundant ModuleBus Cable Adaptor |
| Article Number | 3BSE021439R1 |
| Mechanics | S800 |
| CE Mark | Yes |
| Electrical Safety | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| Hazardous Location Compliance | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine Certification | ABS, BV, DNV, LR |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Protection Class | IP20 (IEC 60529) |
| Mechanical Conditions | IEC 61131-2 |
| EMC | EN 61000-6-4, EN 61000-6-2 |
| Overvoltage Category | IEC/EN 60664-1 |
| Equipment Class | Class I (IEC 61140, earthed) |
| RoHS Compliance | DIRECTIVE/2011/65/EU (EN 50581:2012) |
| WEEE Compliance | DIRECTIVE/2012/19/EU |
| Dimensions (W × D × H) | 43 × 31.5 × 186 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the main function of the TB846 module?
A1: TB846 is used with TB845 and two TK801V0xx units to extend the ModuleBus, allowing I/O modules to be installed on separate DIN rails.
Q2: Does TB846 support optical extension?
A2: Yes, it can be used with TB842 for optical extension of the ModuleBus.
Q3: What environmental standards does TB846 comply with?
A3: It meets IEC 61131-2 for temperature and mechanical conditions, IP20 protection class, and G3 level corrosion protection.
Q4: Is TB846 certified for marine use?
A4: Yes, it holds certifications from ABS, BV, DNV, and LR.
Q5: What are the electrical safety standards for TB846?
A5: It complies with IEC 61131-2, UL 61010-1, and UL 61010-2-201.
Q6: What is the operating temperature range of TB846?
A6: It operates from 0 to +55°C and can be stored at -25 to +70°C.
Q7: What installation type is TB846 designed for?
A7: It is part of the S800 I/O system and mounts on DIN rails for modular setup.
Q8: What are the typical applications of TB846?
A8: It is used for redundant ModuleBus extension in ABB System 800xA, allowing distributed module installation.
