Technical Specifications
| Parameter | Description |
|---|---|

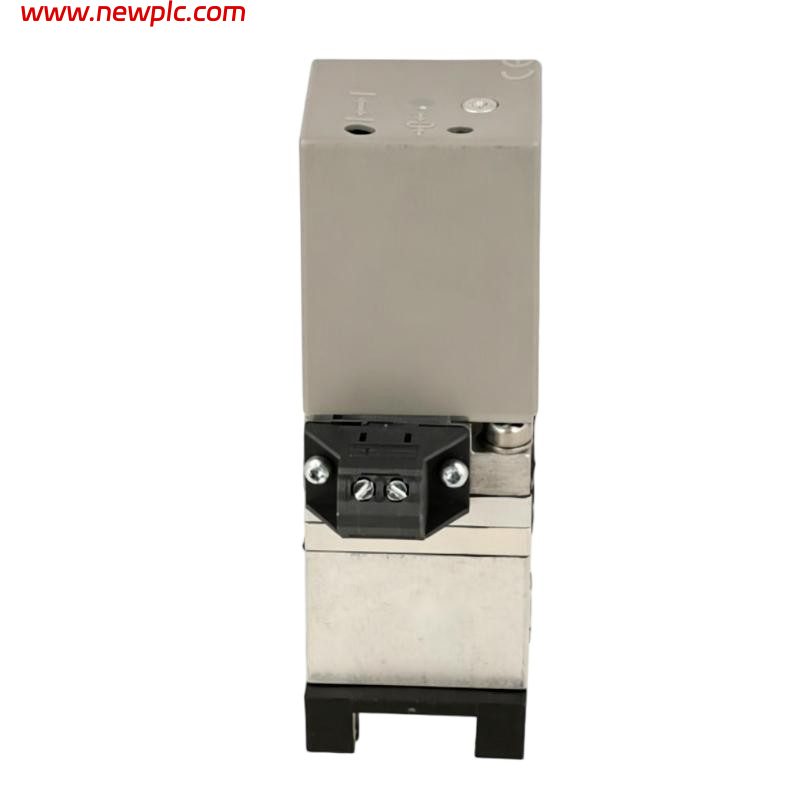

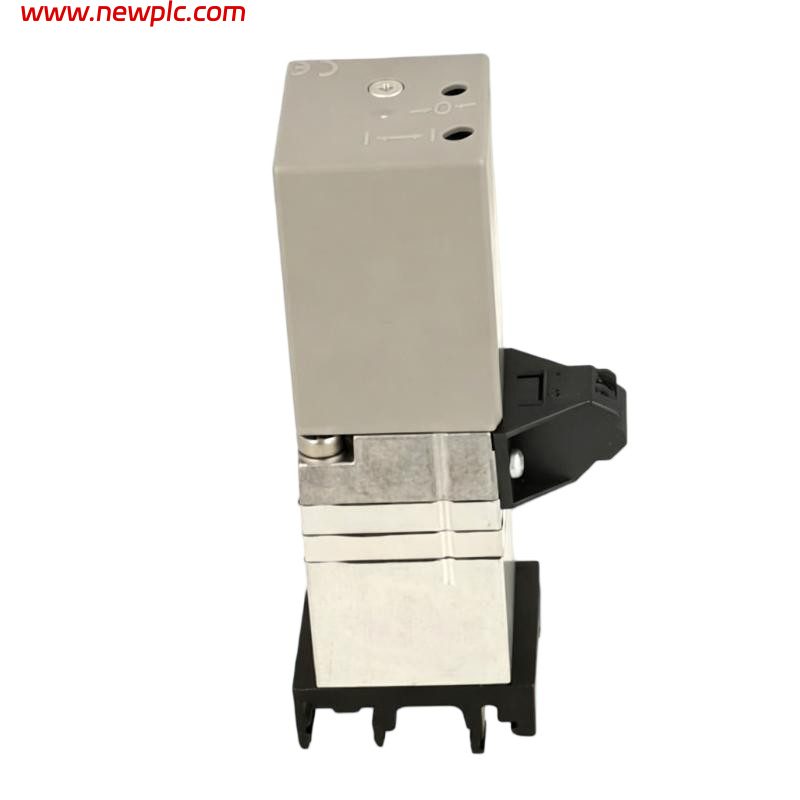

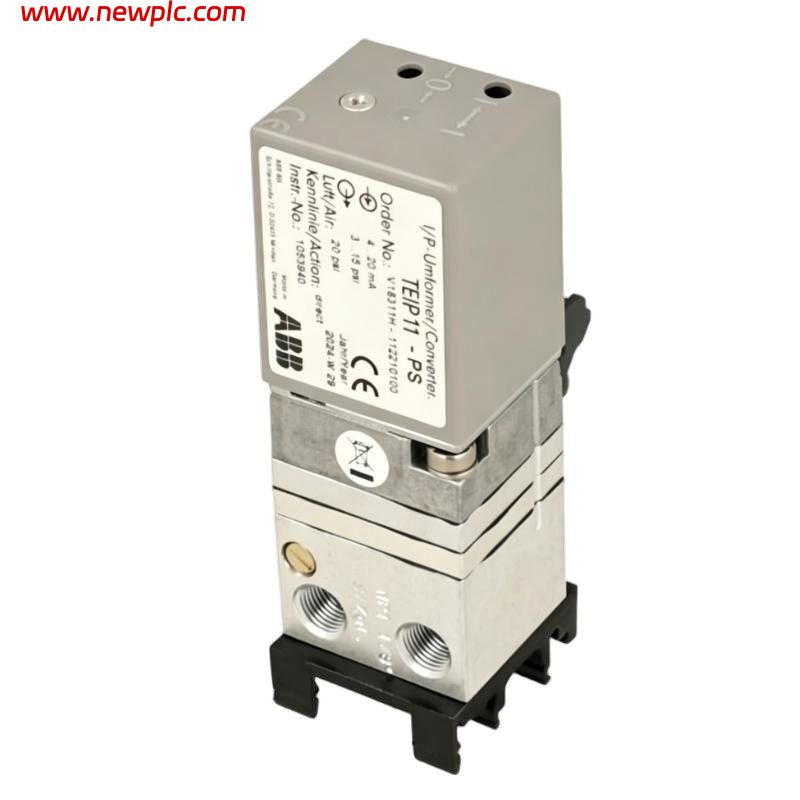

| Product Name | ABB TEIP11 I/P Signal Converter |
| Part Number | V18311H-112110100 |
| Product Type | I/P Signal Converter (Current to Pneumatic Converter) |
| Manufacturer | ABB |
| Series | TEIP11 / Field Instrumentation |
| Function | Converts an electrical current input signal into a proportional pneumatic output signal for controlling pneumatic actuators and control valves |
| Application | Process Control, Valve Position Control, Pneumatic Actuator Systems, Chemical, Oil & Gas, Power Generation, Water Treatment, and Industrial Automation |
| Input Signal | 4–20 mA DC |
| Output Signal | 0.2–1 bar (3–15 psi) |
| Output Pressure Range | 6–30 psi input / 37 psi maximum output |
| Action Type | Direct Action |
| Accuracy | Approx. ±0.5% of span |
| Mounting Type | Control room housing / rail mounting |
| Protection Rating | IP20 |
| Explosion Protection | Without explosion protection |
| Ambient Temperature | -40°C to +85°C |
| Pneumatic Connection | Standard pneumatic connection for instrument air |
| Supply Air Pressure | Max. approx. 2.5 bar above output pressure |
| Application Area | ABB valve positioners, pneumatic control loops, process instrumentation |
| Product Category | ABB Field Instrumentation Spare Part |
| Dimensions | Approx. 120 × 80 × 80 mm |
| Weight | Approx. 0.14 kg |
FAQ
FAQ
Q1: What is the ABB V18311H-112110100?
A1: The ABB V18311H-112110100 is an I/P signal converter that converts a standard 4–20 mA electrical signal into a proportional pneumatic pressure signal of 0.2–1 bar (3–15 psi).
Q2: What is the main function of this device?
A2: It is used to control pneumatic actuators and valves by converting an electrical control signal from a PLC, DCS, or controller into a pneumatic output pressure.
Q3: Is V18311H-112110100 a PLC module?
A3: No. It is not a PLC or DCS module. It is an industrial signal converter / field instrumentation device used in process control systems.
Q4: What input signal does it accept?
A4: The converter accepts a 4–20 mA DC input signal, which is commonly used in industrial automation systems.
Q5: What pneumatic output does it provide?
A5: It provides a proportional pneumatic output of 0.2–1 bar (approximately 3–15 psi) for controlling pneumatic equipment.
Q6: What is the operating temperature range?
A6: The operating ambient temperature range is approximately -40°C to +85°C, suitable for harsh industrial environments.
Q7: Where is the ABB V18311H-112110100 commonly used?
A7: It is commonly used in process industries, including power plants, chemical plants, oil & gas facilities, and water treatment systems for pneumatic valve control applications.
Q8: What are the dimensions and weight of V18311H-112110100?
A8: The approximate dimensions are 120 × 80 × 80 mm, and the weight is approximately 0.14 kg.
