Technical Specifications
| Parameter | Description |
|---|---|

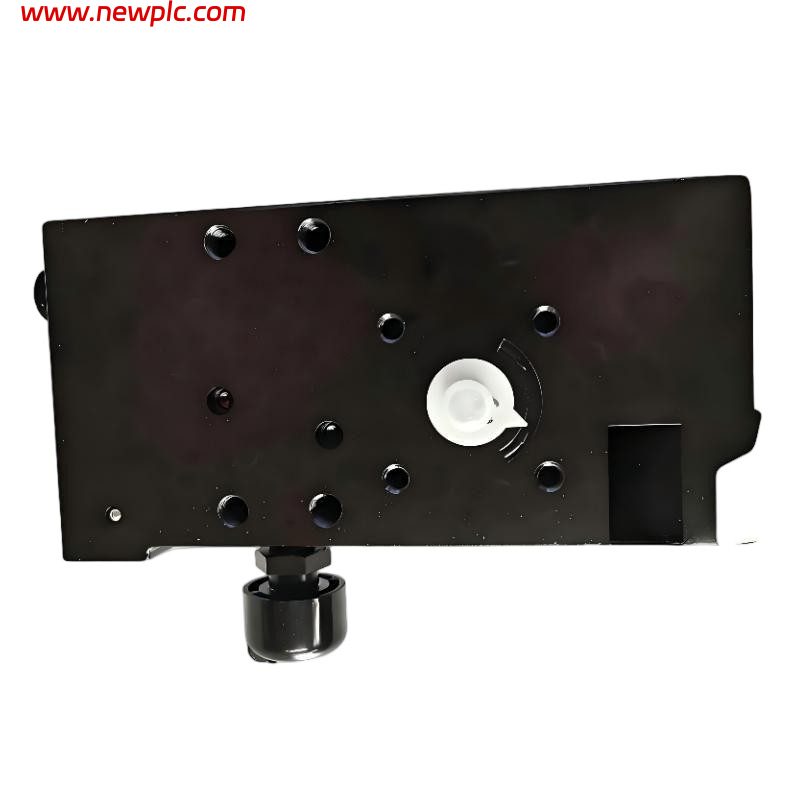

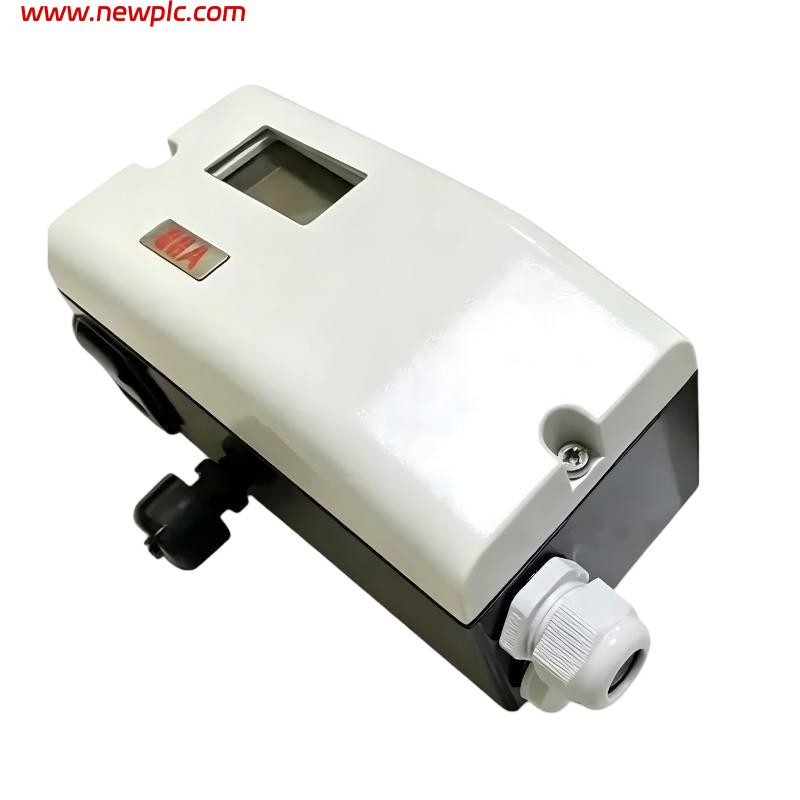

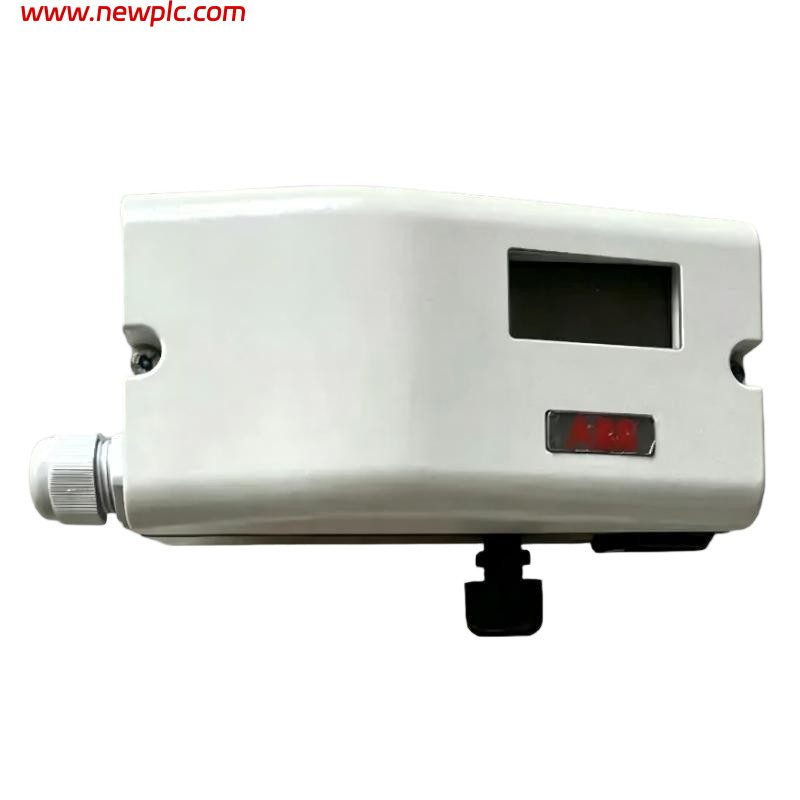

| Product Name | ABB TZIDC Intelligent Electro-Pneumatic Positioner |
| Part Number | V18345-1020151001 |
| Product Type | Electro-Pneumatic Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC |
| Function | Intelligent digital valve positioner for accurate positioning of pneumatic linear and rotary actuators |
| Application | Oil & Gas, Chemical, Power Generation, Water Treatment, Pulp & Paper, Pharmaceutical, and General Process Automation |
| Input Signal | 4–20 mA, 2-wire |
| Communication | HART |
| Control Principle | Microprocessor-based adaptive control with automatic commissioning and self-calibration |
| Output | Pneumatic output for single-acting (fail-safe) actuator |
| Supply Air Pressure | 1.4–6 bar (20–90 psi) |
| Position Feedback | Continuous valve position monitoring |
| Mounting Type | NAMUR linear actuator or VDI/VDE 3845 rotary actuator mounting |
| Housing Material | Epoxy-coated aluminum |
| Protection Rating | IP65 / NEMA 4X |
| Ambient Temperature | -40°C to +85°C (configuration dependent) |
| Pneumatic Connection | 1/4-18 NPT |
| Cable Entry | M20 × 1.5 |
| Display | LCD display with local push-button configuration |
| Certifications | CE (optional hazardous-area approvals depending on ordering code) |
| Dimensions | Approximately 250 × 150 × 100 mm |
| Weight | Approximately 1.7 kg |
FAQ
FAQ
Q1: What is the ABB V18345-1020151001?
A1: It is a TZIDC intelligent electro-pneumatic valve positioner designed to accurately position pneumatic control valves using a 4–20 mA control signal.
Q2: What type of actuator is it designed for?
A2: This configuration is intended for single-acting (fail-safe) pneumatic actuators and can be mounted on both linear (NAMUR) and rotary (VDI/VDE 3845) actuators.
Q3: Does it support HART communication?
A3: Yes. This model includes HART communication, allowing remote configuration, diagnostics, and monitoring while using the standard 4–20 mA control loop.
Q4: What input signal does the positioner accept?
A4: It accepts a standard 4–20 mA DC, two-wire input signal from a PLC, DCS, or process controller.
Q5: What air supply is required?
A5: The positioner requires a clean, dry instrument air supply of 1.4 to 6 bar (20–90 psi).
Q6: What are the protection and housing specifications?
A6: It features an epoxy-coated aluminum housing with IP65 / NEMA 4X protection, making it suitable for harsh industrial environments.
Q7: Where is the V18345-1020151001 commonly used?
A7: It is widely used for precise valve control in industries such as oil & gas, chemical processing, power generation, water treatment, pulp & paper, and pharmaceuticals.
Q8: What are the dimensions and weight of this positioner?
A8: The unit has approximate dimensions of 250 × 150 × 100 mm and a net weight of approximately 1.7 kg.
