Technical Specifications
| Parameter | Description |
|---|---|

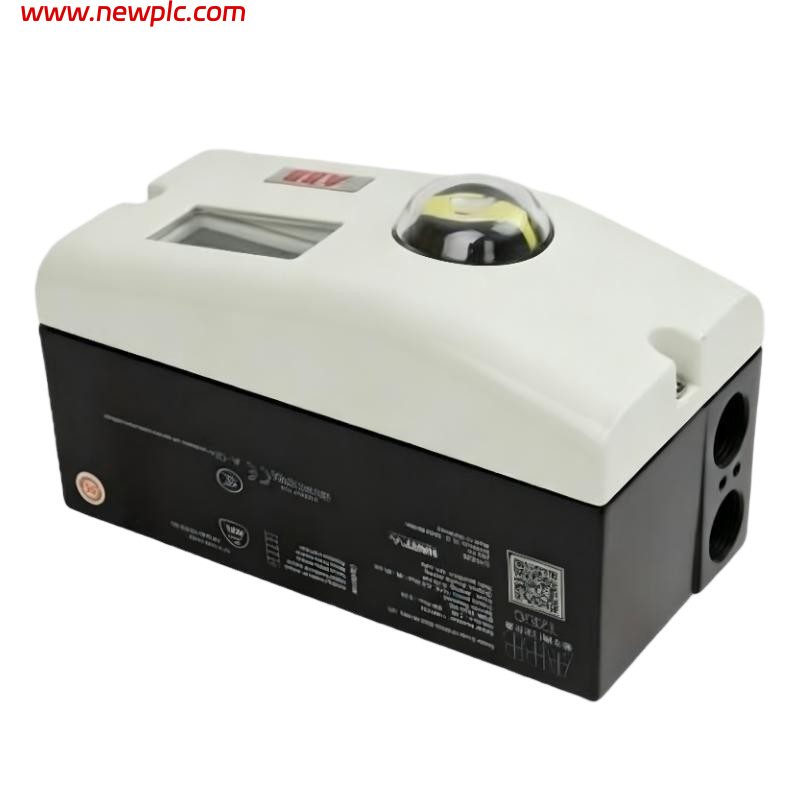

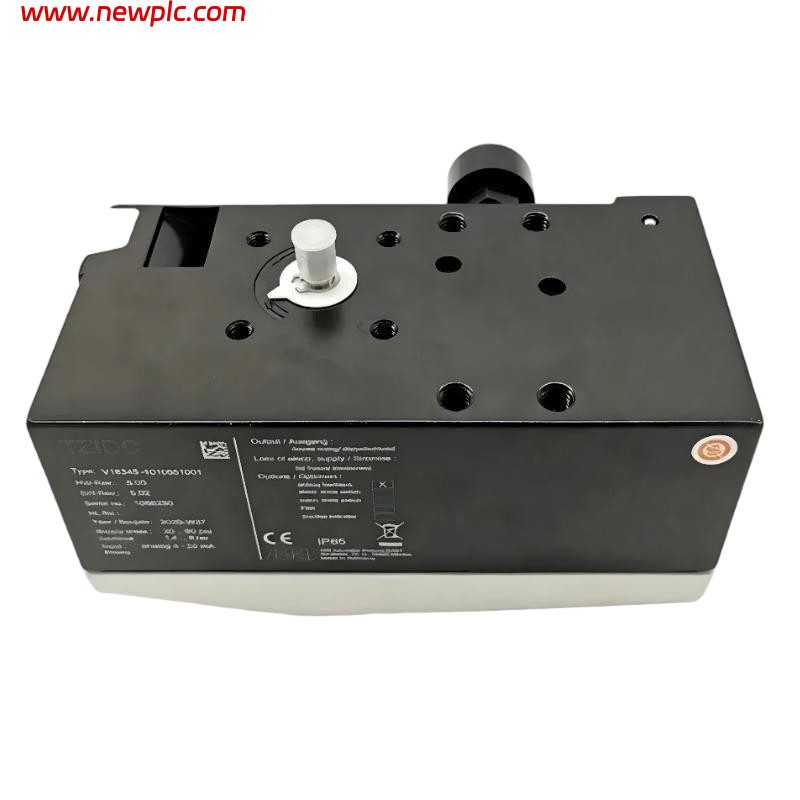

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-1021120001 |
| Product Type | Electro-Pneumatic Intelligent Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Intelligent, configurable valve positioner with indicator and local operator panel for precise positioning of pneumatic control valves |
| Application | Oil & Gas, Chemical, Power Generation, Water Treatment, and Industrial Process Automation |
| Input Signal | 4–20 mA, two-wire |
| Communication Protocol | HART communication via FSK module |
| Actuator Type | Single-acting pneumatic actuator |
| Fail Action | Fail Safe |
| Output Signal | Pneumatic output to actuator |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Housing Material | Varnished aluminum |
| Mounting Standard | DIN / IEC 534 / NAMUR, VDI / VDE 3845 |
| Electrical Connection | 1/2-14 NPT |
| Pneumatic Connection | 1/4-18 NPT |
| Explosion Protection | ATEX II 2 G Ex ib IIC T6/T4 Gb |
| Protection Rating | IP65 / NEMA 4X |
| Position Feedback | Integrated 4–20 mA analog position feedback module |
| Diagnostics | Auto-calibration, self-monitoring, adaptive control, valve diagnostics |
| Operating Temperature | -40°C to +85°C |
| Parameter | Description |
|---|---|
| Dimensions | Approx. 170 × 110 × 110 mm |
| Weight | Approx. 1.7 kg |
FAQ
FAQ
Q1: What is ABB V18345-1021120001?
A1: It is a TZIDC intelligent electro-pneumatic valve positioner designed for accurate control of pneumatic valve actuators.
Q2: Does it support HART communication?
A2: Yes. This configuration includes a 4–20 mA input with HART communication capability.
Q3: What type of actuator is supported?
A3: This model is configured for a single-acting pneumatic actuator with fail-safe operation.
Q4: What explosion protection does it have?
A4: ATEX II 2 G Ex ib IIC T6/T4 Gb intrinsically safe certification.
Q5: Does it provide position feedback?
A5: Yes, it includes a plug-in 4–20 mA analog position feedback module.
Q6: What are the connection types?
A6: Electrical connection is 1/2-14 NPT and pneumatic connection is 1/4-18 NPT.
Q7: What are its physical dimensions?
A7: Approximately 170 × 110 × 110 mm.
Q8: What is its weight?
A8: Approximately 1.7 kg.
