Technical Specifications
| Parameter | Description |
|---|---|

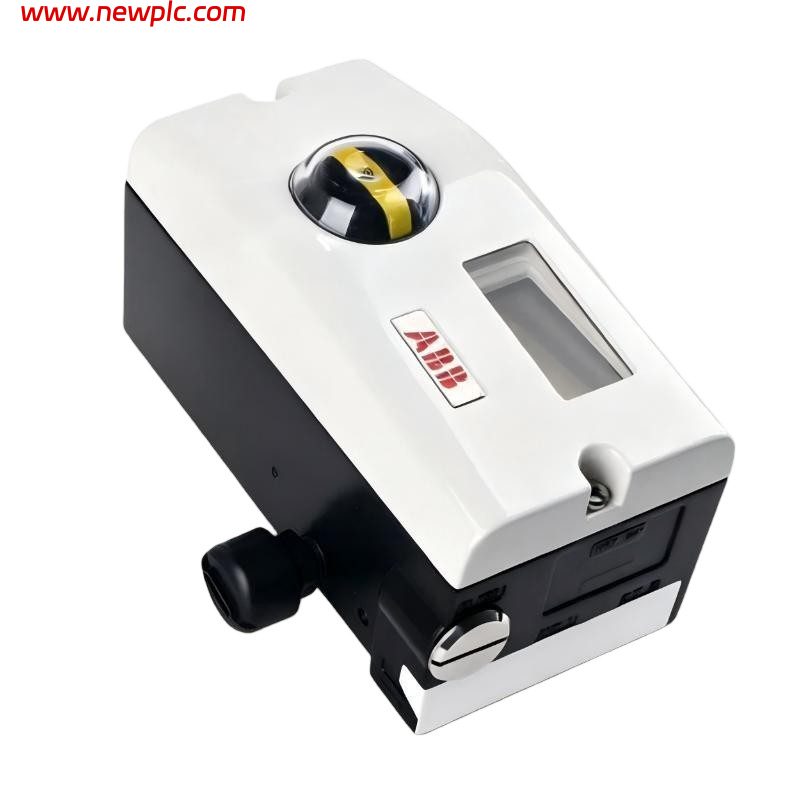

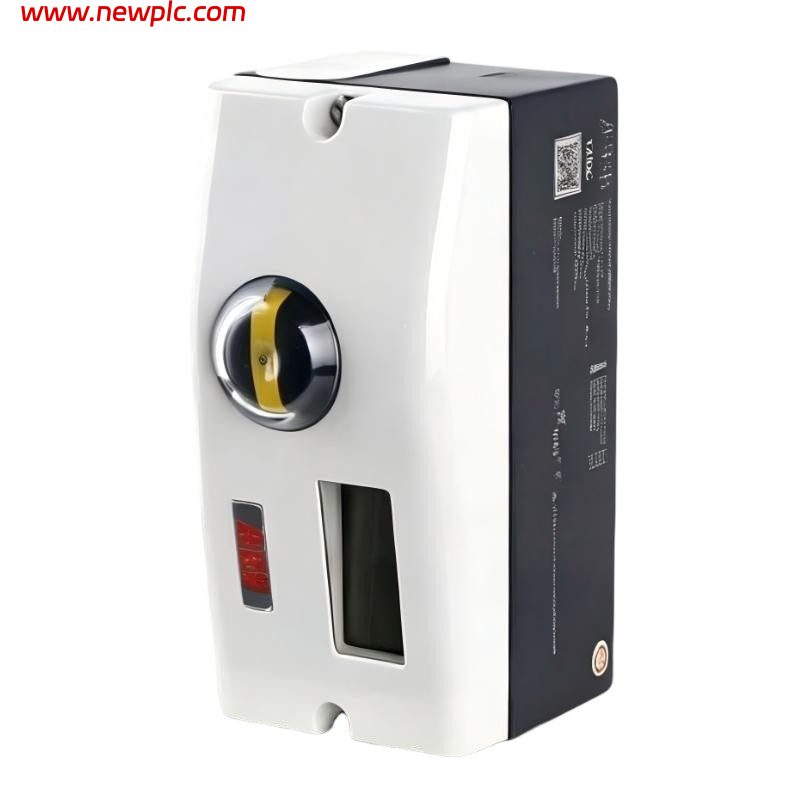

| Product Name | ABB TZIDC Valve Positioner |
| Part Number | V18345-1021420001 |
| Product Type | Electro-Pneumatic Intelligent Valve Positioner |
| Manufacturer | ABB |
| Series | TZIDC (V18345) |
| Function | Intelligent digital positioner for precise control of pneumatic valve actuators |
| Application | Oil & Gas, Chemical, Petrochemical, Power Generation, Water Treatment, and Process Industries |
| Input Signal | 4–20 mA, two-wire |
| Communication Protocol | HART |
| Actuator Type | Single-acting pneumatic actuator |
| Fail Action | Fail-safe |
| Output Signal | Pneumatic output to actuator |
| Air Supply Pressure | 1.4–6 bar (20–90 psi) |
| Housing Material | Epoxy-coated aluminum |
| Mounting Standard | NAMUR VDI/VDE 3845, IEC 60534-6 |
| Electrical Connection | 1/2-14 NPT |
| Pneumatic Connection | 1/4-18 NPT |
| Protection Rating | IP65 / NEMA 4X |
| Explosion Protection | ATEX / IECEx intrinsically safe configuration |
| Position Feedback | Integrated 4–20 mA analog feedback |
| Diagnostics | Auto-calibration, self-monitoring, valve diagnostics, adaptive control |
| Operating Temperature | -40°C to +85°C |
| Display | LCD display with local operating keys |
| Parameter | Description |
|---|---|
| Dimensions | 170 × 110 × 110 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1: What is ABB V18345-1021420001?
A1: It is a TZIDC intelligent electro-pneumatic valve positioner used to accurately control pneumatic control valves.
Q2: Does it support HART communication?
A2: Yes, this model supports HART communication for configuration and diagnostics.
Q3: What type of actuator is supported?
A3: It is designed for single-acting pneumatic actuators.
Q4: Does it provide position feedback?
A4: Yes, it includes an integrated 4–20 mA analog position feedback function.
Q5: What are the connection types?
A5: Electrical connection is 1/2-14 NPT and pneumatic connection is 1/4-18 NPT.
Q6: What protection rating does it have?
A6: IP65 / NEMA 4X environmental protection.
Q7: What are the physical dimensions?
A7: 170 × 110 × 110 mm.
Q8: What is the weight?
A8: 1.7 kg.
