Technical Specifications
| Parameter | Description |
|---|---|

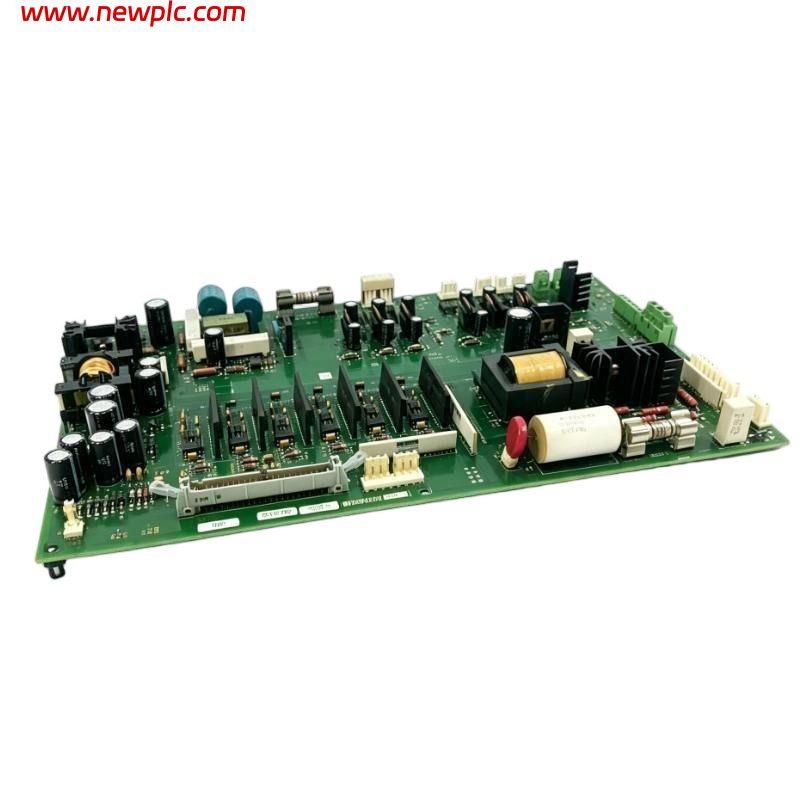

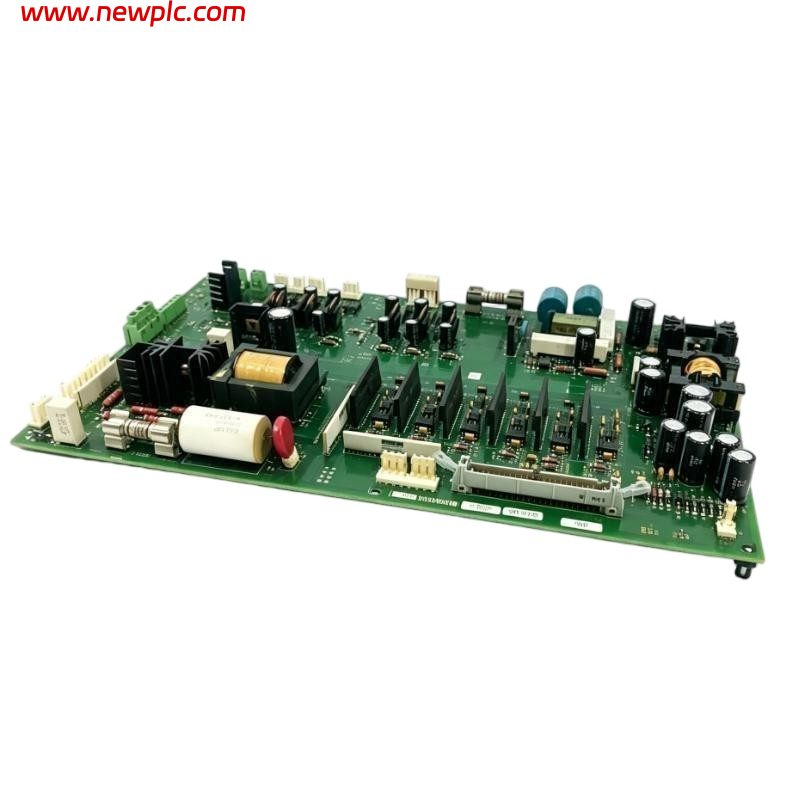

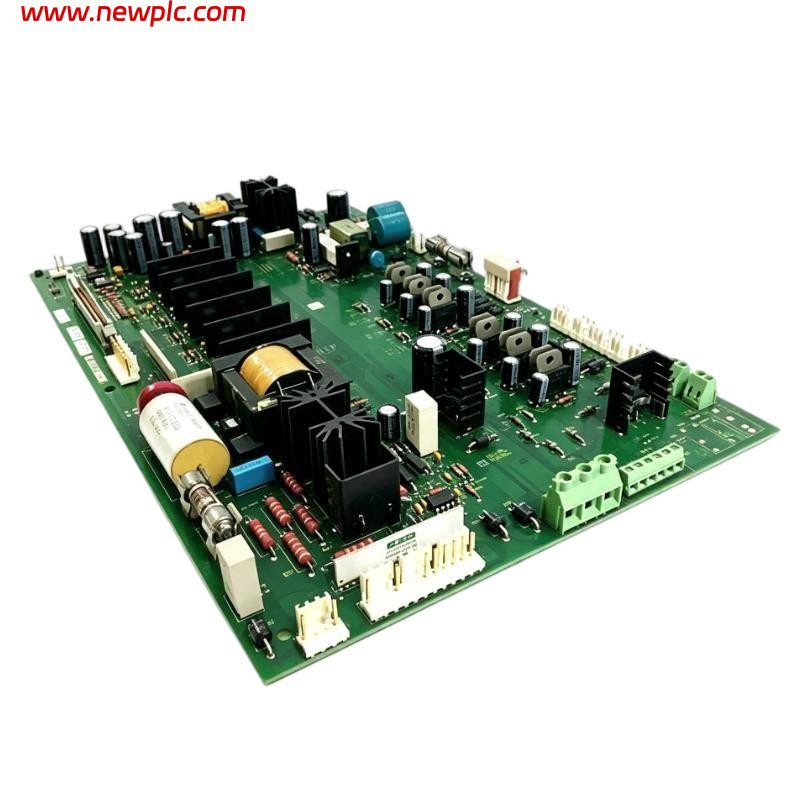

| Product Model | Allen-Bradley 1336-BDB-SP31C |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | 1336 Drive Series |
| Product Type | Gate Drive PCB Board |
| Function | Controls the power switching gate signals for the drive power section and provides gate firing control for IGBT devices |
| Application | Variable frequency drive (VFD) repair, motor control systems, industrial drive maintenance |
| Compatible Drives | Allen-Bradley 1336 FORCE, 1336 PLUS, 1336 PLUS II, and 1336 IMPACT drive series |
| Voltage Rating | 460 VAC |
| Board Type | Printed Circuit Board (PCB) |
| PCB Function | Gate Drive Control Board |
| Protective Coating | Conformal-coated PCB for improved resistance against moisture, dust, chemicals, and environmental contamination |
| Installation Type | Internal replacement board mounted inside 1336 drive assemblies |
| Communication Interface | Internal drive control interface |
| Power Supply | Supplied by the host 1336 drive system |
| Operating Environment | Indoor industrial environments |
| Replacement Application | Direct spare replacement for compatible 1336 series drive gate drive boards |
| Mounting Method | Internal drive chassis mounting |
| Dimensions | Approx. 230 × 160 × 35 mm |
| Weight | Approx. 1.36 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1336-BDB-SP31C used for?
A: The 1336-BDB-SP31C is a gate drive circuit board used inside Allen-Bradley 1336 series variable frequency drives. It controls power device switching signals to support motor speed and torque control.
Q2: Which Allen-Bradley drives are compatible with the 1336-BDB-SP31C?
A: It is designed for use with compatible 1336 FORCE, 1336 PLUS, 1336 PLUS II, and 1336 IMPACT drive series units rated for 460 VAC applications.
Q3: Is the 1336-BDB-SP31C a complete drive unit?
A: No. It is a replacement PCB assembly installed inside an Allen-Bradley 1336 drive. It must be used together with the original drive hardware.
Q4: What is the main function of the Gate Drive Board?
A: The board generates and manages gate control signals for the power switching components, ensuring proper operation of the drive inverter section.
Q5: Does the 1336-BDB-SP31C require software configuration?
A: No additional software configuration is normally required. After replacement, the drive should be inspected and tested according to the manufacturer’s maintenance procedures.
Q6: What are the dimensions and weight of the 1336-BDB-SP31C?
A: The approximate dimensions are 230 × 160 × 35 mm, and the weight is approximately 1.36 kg. Actual values may vary slightly depending on hardware revision and packaging.
Q7: Can the 1336-BDB-SP31C replace other 1336 gate drive boards?
A: Replacement should only be performed after confirming the complete part number, voltage rating, drive model, PCB revision, and application requirements.
Q8: What should be checked before installing the 1336-BDB-SP31C?
A: Confirm the drive model compatibility, inspect connectors and mounting points, verify the board revision, discharge the drive DC bus voltage, and follow proper electrical safety procedures before replacement.
