Technical Specifications
| Parameter | Description |
|---|---|

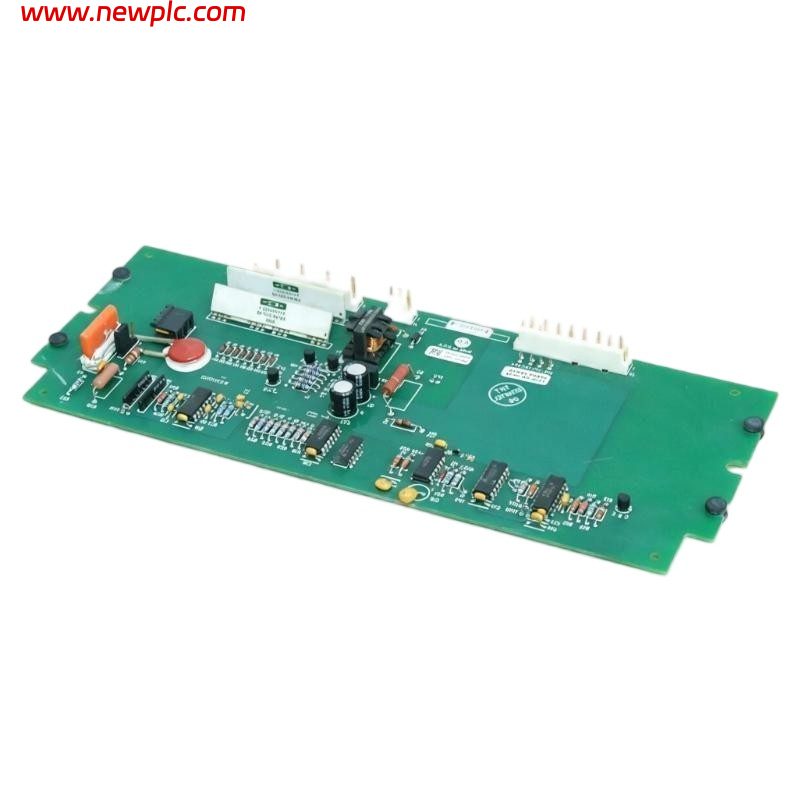

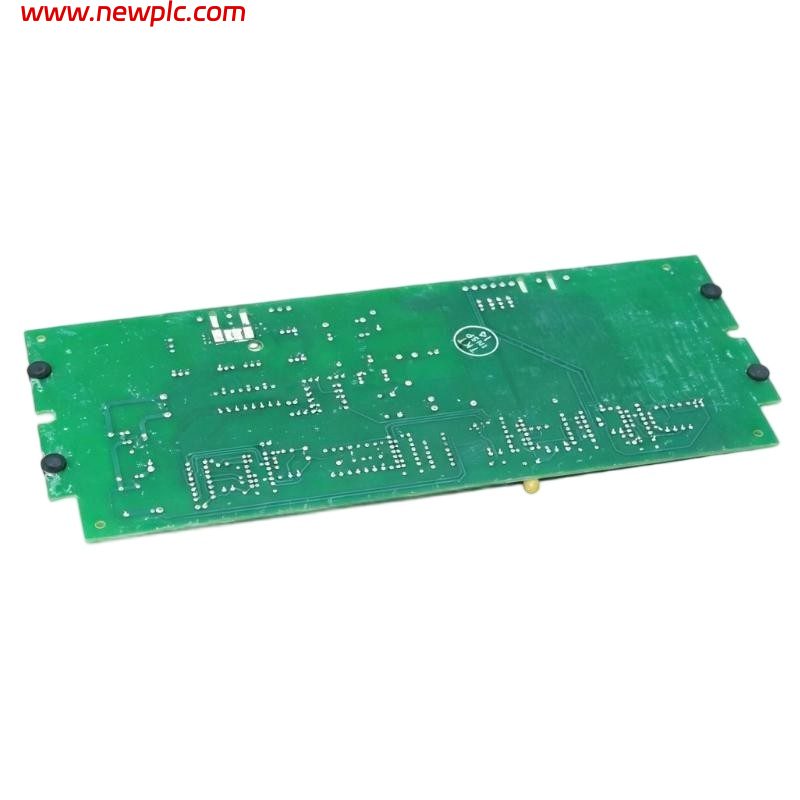

| Product Model | Allen-Bradley 1336-PB-SP5A |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | 1336 Adjustable Frequency AC Drive Series |
| Product Type | Precharge PC Board Assembly |
| Function | Controls the precharge circuit to limit inrush current during drive startup and protect DC bus capacitors and power components |
| Application | Variable frequency drives, AC motor control systems, industrial drive repair and maintenance |
| Compatible Drive Series | Allen-Bradley 1336 PLUS, 1336 PLUS II, 1336 FORCE, and 1336 IMPACT drives |
| Compatible Drive Class | 460 VAC drives |
| Compatible Power Range | Approx. 40–60 HP drive applications |
| Drive Frame Type | 1336STEF Frame X40–X60HP (CB style configurations) |

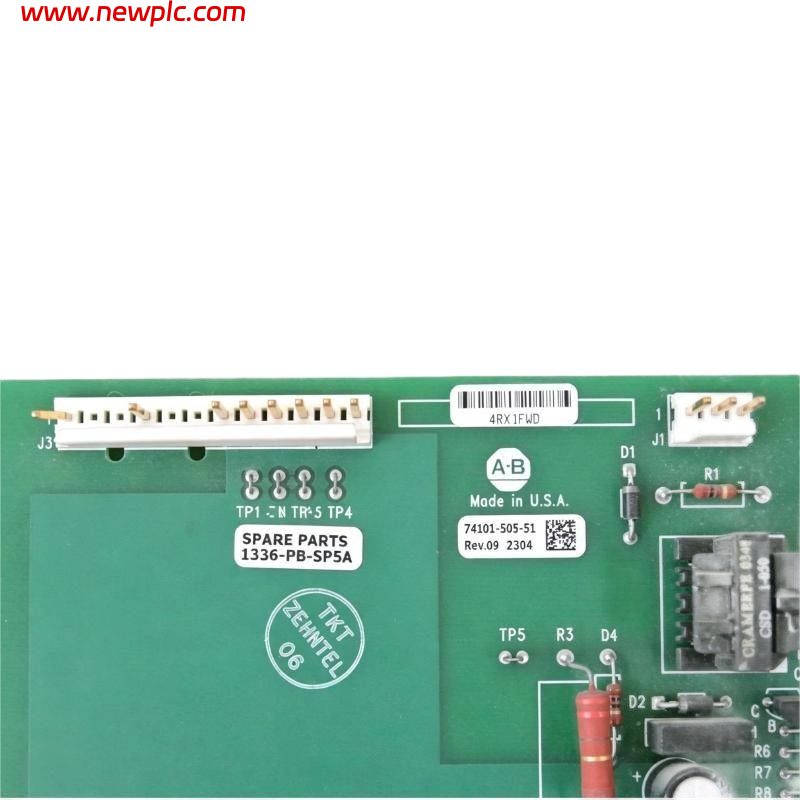

| PCB Part Number | 74101-505-51 |
| Board Type | Printed Circuit Board Assembly |
| Circuit Function | DC bus precharge control and startup current limiting |
| Installation Location | Internal power section of Allen-Bradley 1336 drives |
| Mounting Type | Internal chassis mounting |
| Components | Logic ICs, comparators, resistors, capacitors, diodes, connectors, and switching components |
| Input Power System | 460 VAC drive input system |
| Operating Environment | Industrial control cabinet environment |
| Replacement Application | Spare replacement board for compatible Allen-Bradley 1336 drives |
| Dimensions | Approx. 170 × 125 × 70 mm |
| Weight | Approx. 0.89 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1336-PB-SP5A used for?
A: The 1336-PB-SP5A is a precharge control board used inside Allen-Bradley 1336 drives to control DC bus charging during startup and reduce excessive inrush current.
Q2: Which drives are compatible with the 1336-PB-SP5A?
A: It is designed for compatible 460 VAC Allen-Bradley 1336 drive systems, including 1336 PLUS, 1336 PLUS II, 1336 FORCE, and 1336 IMPACT series drives.
Q3: What is the main function of the precharge circuit?
A: The precharge circuit gradually charges the DC bus capacitors during power-up, preventing high startup current that could damage capacitors, rectifiers, and power switching components.
Q4: Is the 1336-PB-SP5A a complete variable frequency drive?
A: No. It is only a replacement PCB assembly installed inside compatible Allen-Bradley 1336 drive units.
Q5: What problems may indicate a failed precharge board?
A: Typical symptoms include drive startup failure, DC bus charging faults, excessive inrush current, inability to enable the drive, or damage to related DC bus components.
Q6: What are the dimensions and weight of the 1336-PB-SP5A?
A: The approximate dimensions are 170 × 125 × 70 mm, and the weight is approximately 0.89 kg. Actual values may vary slightly depending on hardware revision and packaging.
Q7: Can the 1336-PB-SP5A replace other precharge boards?
A: Replacement should only be performed after confirming the drive voltage rating, frame size, board part number, PCB revision, and original application requirements.
Q8: What should be checked before installing the 1336-PB-SP5A?
A: Verify the drive model, disconnect and discharge the DC bus voltage, inspect connectors and mounting points, confirm the replacement board specification, and follow proper electrical safety procedures before installation.
