Technical Specifications
| Parameter | Description |
|---|---|

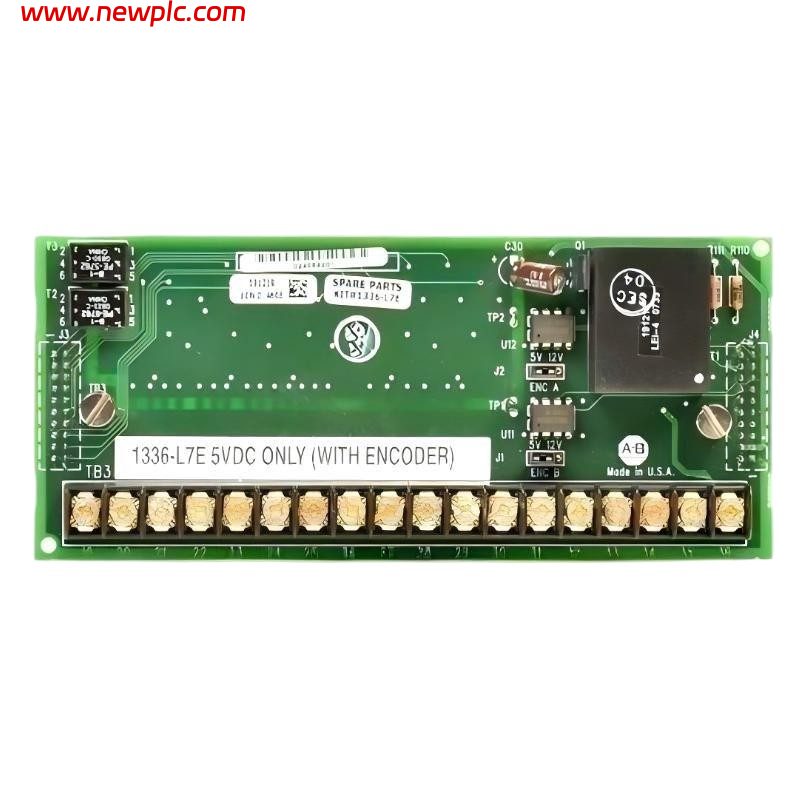

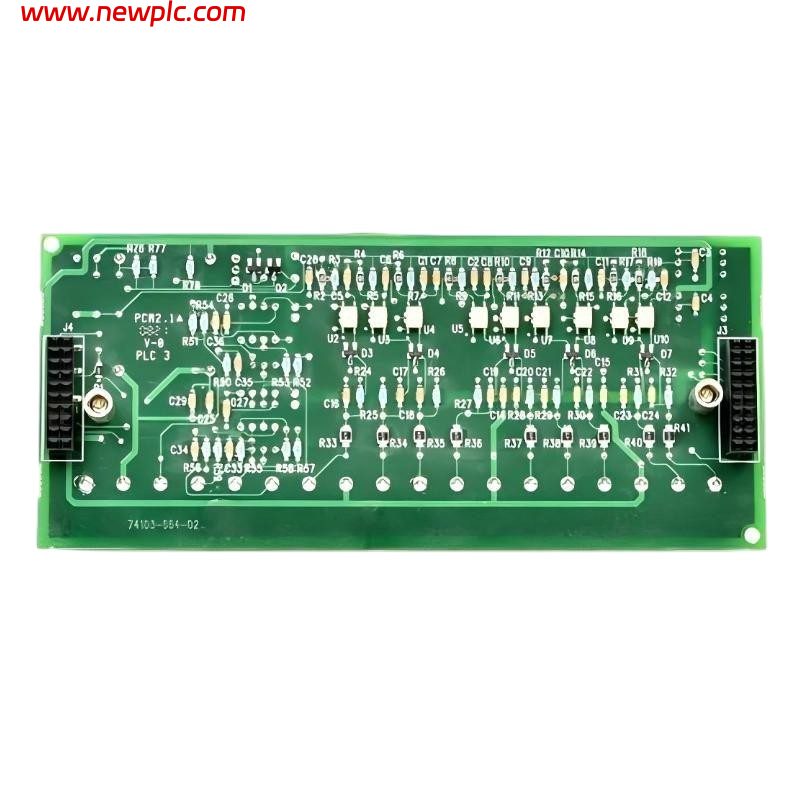

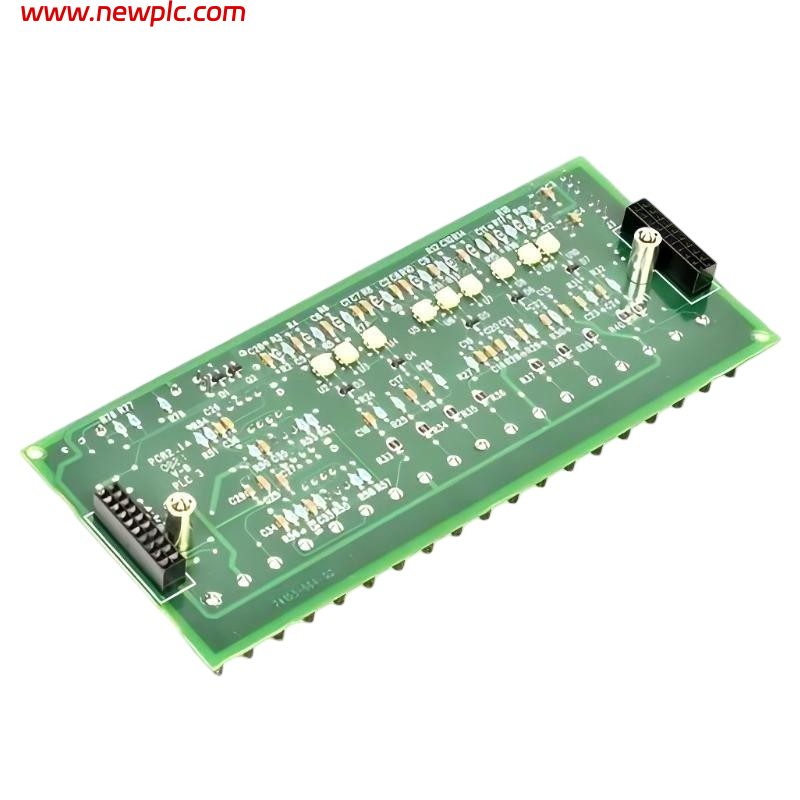

| Product Model | Allen-Bradley 1336-L7E |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | 1336 Adjustable Frequency AC Drive Series |
| Product Type | L Option Control Interface Board |
| Function | Provides contact closure control inputs and encoder feedback interface for 1336 drive systems |
| Application | Variable frequency drive control, motor speed regulation, industrial automation applications |
| Compatible Drives | Allen-Bradley 1336 Adjustable Frequency Drives and 1336 IMPACT Drive systems |
| Board Type | Plug-in option PCB assembly |
| Control Interface Type | Contact closure interface with encoder feedback |
| Encoder Support | Yes |
| Encoder Feedback Function | Provides encoder input and loss detection capability for closed-loop control applications |
| Input Type | Contact closure inputs using internal +5VDC supply |
| Control Inputs | Nine control inputs (user configurable and factory-defined inputs) |
| Communication Interface | Internal 1336 drive option interface |
| Installation Type | Internal plug-in installation inside drive chassis |
| Mounting Method | Drive option card slot mounting |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% non-condensing |
| Altitude Rating | Up to 1000 m without derating |
| Compatible PLC Modules | Allen-Bradley 1771-OYL and 1771-OZL PLC modules |
| Board Material | Industrial-grade PCB assembly |
| Dimensions | Approx. 160 × 120 × 25 mm |
| Weight | Approx. 0.26 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1336-L7E used for?
A: The 1336-L7E is an option interface board used with Allen-Bradley 1336 drives to provide additional control inputs and encoder feedback functions for motor control applications.
Q2: Which drives are compatible with the 1336-L7E?
A: The board is designed for Allen-Bradley 1336 Adjustable Frequency Drives and 1336 IMPACT drive systems that support L Option boards.
Q3: Does the 1336-L7E support encoder feedback?
A: Yes. The L7E version includes encoder feedback inputs and encoder loss detection capability, which differentiates it from the standard L4 contact closure interface board.
Q4: What type of input interface does the 1336-L7E provide?
A: It provides a contact closure interface using the drive’s internal +5VDC supply for control input signals.
Q5: Is the 1336-L7E a complete variable frequency drive?
A: No. It is an optional control interface PCB installed inside compatible Allen-Bradley 1336 drive units.
Q6: What are the dimensions and weight of the 1336-L7E?
A: The approximate dimensions are 160 × 120 × 25 mm, and the weight is approximately 0.26 kg. Actual values may vary depending on hardware revision and packaging.
Q7: Can the 1336-L7E replace other L Option boards?
A: Replacement depends on the required interface type. The drive configuration, encoder requirement, control voltage type, and original option board model should be verified before replacement.
Q8: What should be checked before installing the 1336-L7E?
A: Verify drive compatibility, option board model, encoder wiring, control terminal connections, and parameter settings. Disconnect power and discharge the drive DC bus before installing the board.
