Technical Specifications
| Parameter | Description |
|---|---|

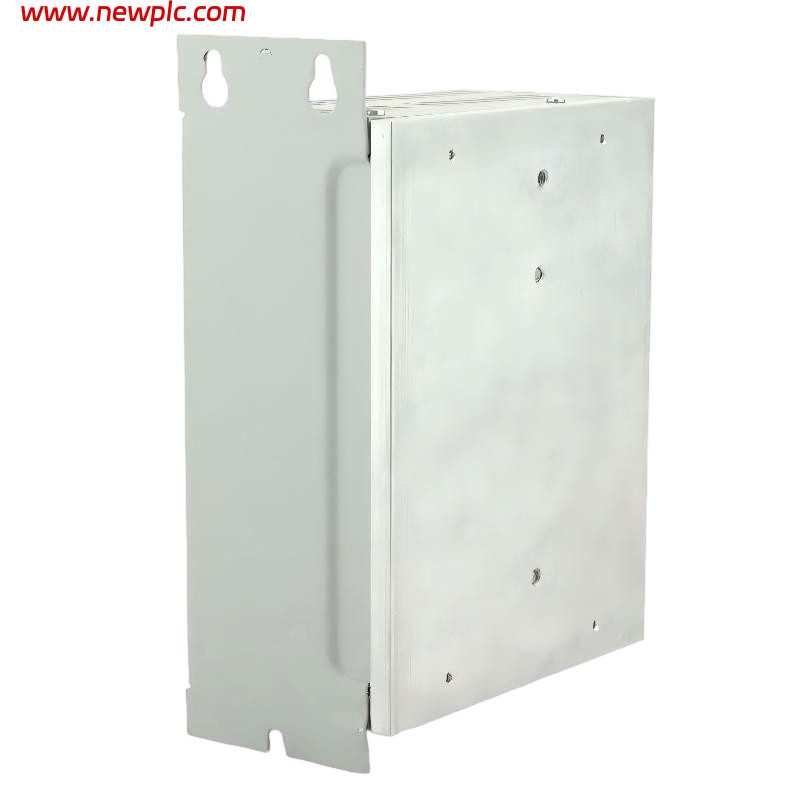

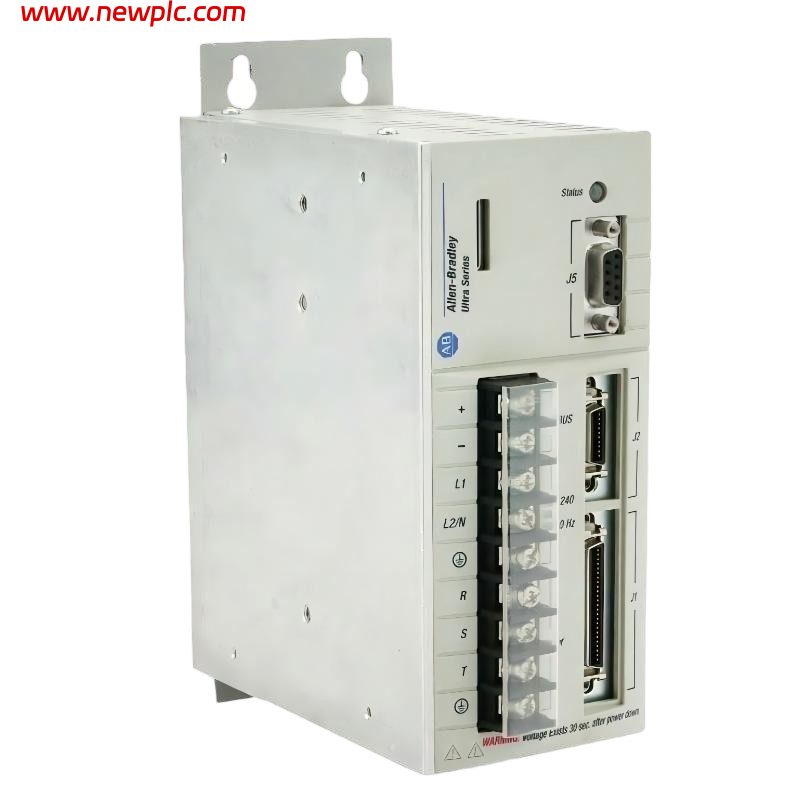

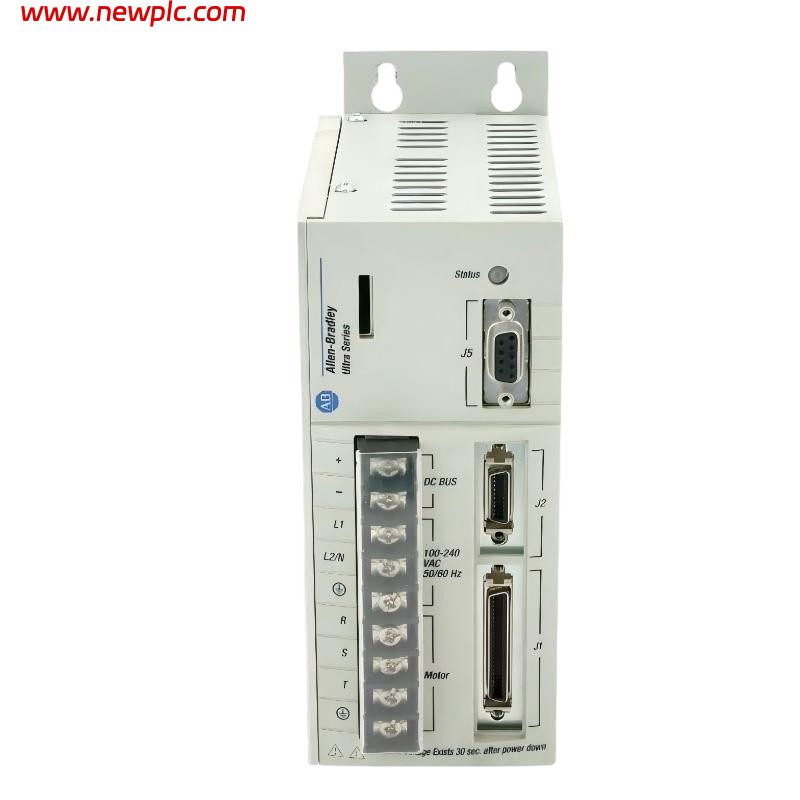

| Product Model | Allen-Bradley 1398-DDM-005X |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Ultra™ 100 Series Digital Servo Drive |
| Product Type | Digital Servo Drive / Indexing Drive |
| Function | Controls servo motors by providing precise position, speed, and torque regulation for motion control applications |
| Application | Servo motion systems, indexing machines, packaging equipment, robotics, and industrial automation systems |
| Drive Mode | Digital indexing servo drive |
| Power Rating | 500 W |
| Input Voltage | 100–240 VAC single phase |
| Input Frequency | 47–63 Hz |
| AC Input Current | 5 A RMS |
| Continuous Output Power | 0.3 kW at 120 VAC / 0.6 kW at 240 VAC |
| Peak Output Power | 0.9 kW at 120 VAC / 1.8 kW at 240 VAC |
| Continuous Output Current | 2.5 A |
| Peak Output Current | 7.5 A |
| DC Bus Voltage | 141–339 VDC |
| Control Type | Digital servo control with microprocessor-based regulation |
| Feedback Support | Encoder feedback for closed-loop motion control |
| Communication Interface | DeviceNet compatible option available |
| Indexing Function | Incremental indexing, registration indexing, and absolute indexing support |
| Status Display | Dual-color LED status indicator |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Installation Type | Panel-mounted servo drive installation |
| Compatible Motors | Allen-Bradley Ultra series servo motors |
| Dimensions | Approx. 198 × 73 × 146 mm |
| Weight | Approx. 1.53 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1398-DDM-005X used for?
A: The 1398-DDM-005X is used to control servo motors in motion control applications requiring accurate positioning, speed regulation, and torque control.
Q2: Which product series does the 1398-DDM-005X belong to?
A: It belongs to the Allen-Bradley Ultra 100 Series Digital Servo Drive family and is an indexing servo drive model.
Q3: What is the power rating of the 1398-DDM-005X?
A: The drive has a 500 W power rating, with continuous output power of approximately 0.3 kW at 120 VAC and 0.6 kW at 240 VAC.
Q4: What input voltage does the 1398-DDM-005X require?
A: It operates with a 100–240 VAC single-phase input at 47–63 Hz frequency.
Q5: Does the 1398-DDM-005X support indexing functions?
A: Yes. The X version supports indexing functions including incremental indexing, registration indexing, and absolute indexing for motion control applications.
Q6: What are the dimensions and weight of the 1398-DDM-005X?
A: The approximate dimensions are 198 × 73 × 146 mm, and the weight is approximately 1.53 kg.
Q7: Can the 1398-DDM-005X replace other Ultra 100 servo drives?
A: Replacement should only be performed after confirming the voltage rating, power capacity, motor compatibility, feedback type, firmware requirements, and complete part number.
Q8: What should be checked before installing the 1398-DDM-005X?
A: Verify the drive model, motor specifications, encoder wiring, input voltage, communication requirements, and parameter settings. Ensure power is disconnected and stored energy is discharged before installation.
