Technical Specifications
| Parameter | Description |
|---|---|

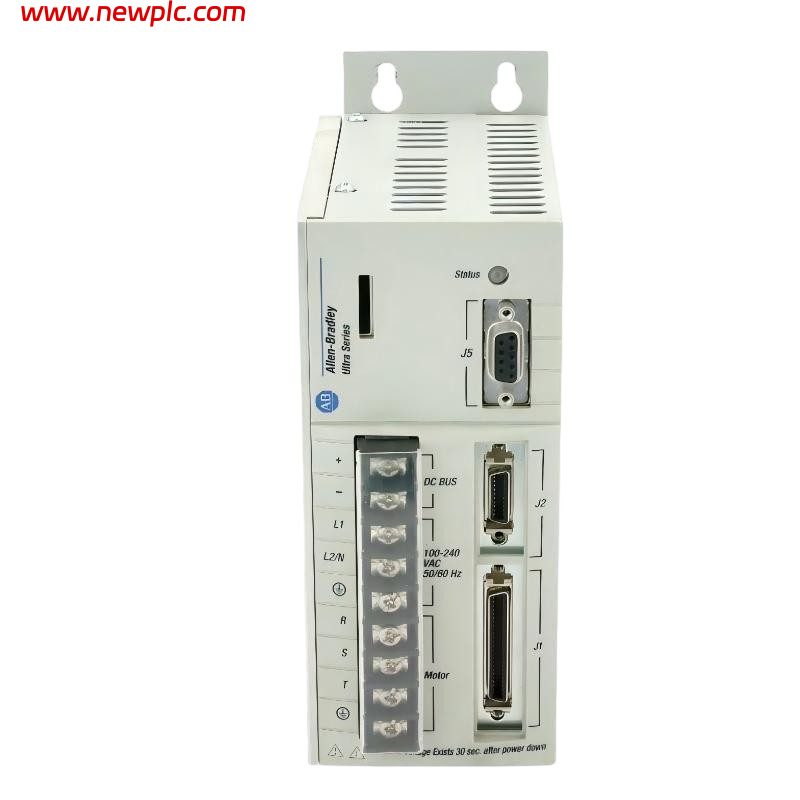

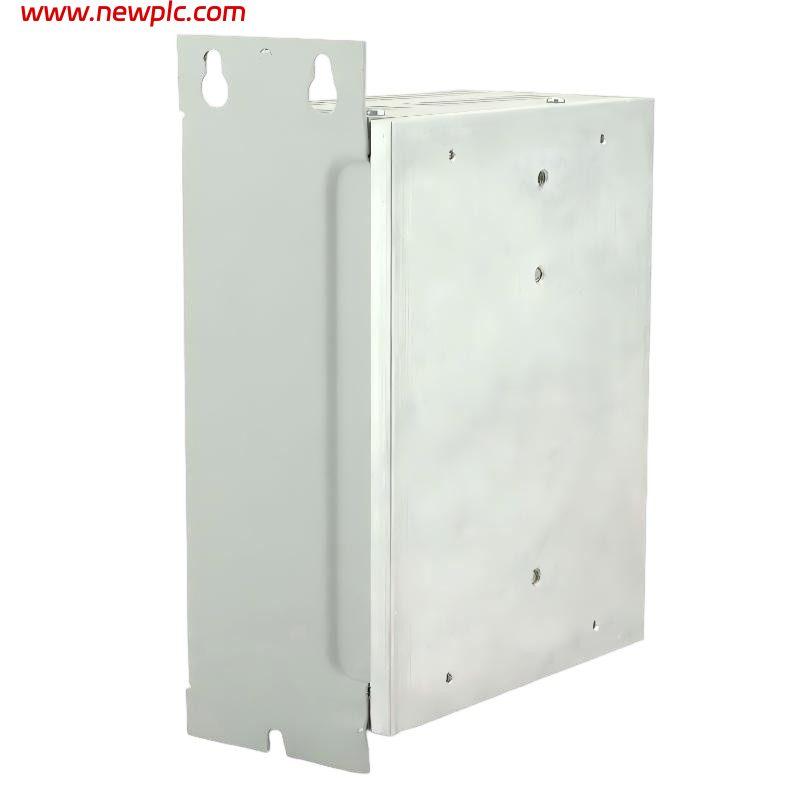

| Product Model | Allen-Bradley 1398-DDM-030 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | Ultra™ 200 Series Digital Servo Drive |
| Product Type | Digital Servo Drive / Positioning Drive |
| Function | Provides closed-loop servo motor control with precise position, velocity, and torque regulation |
| Application | Motion control systems, indexing machines, packaging equipment, robotics, CNC equipment, and industrial automation |
| Input Voltage | 100–240 VAC, single phase |
| Input Frequency | 47–63 Hz |
| Input Current | Approx. 28 A RMS |
| Output Peak Current | 30 A |
| Continuous Output Current | 15 A |
| Continuous Power Output | Approx. 3 kW at 240 VAC |
| Peak Power Output | Approx. 7.5 kW at 240 VAC |
| DC Bus Voltage | 141–339 VDC |
| Control Type | Digital closed-loop servo control |
| Feedback Type | Encoder feedback |
| Motor Compatibility | Allen-Bradley Ultra Series brushless servo motors |
| Communication Interface | Serial communication interface / optional motion interfaces |
| Control Functions | Position loop, velocity loop, current loop, motor commutation control |
| Input/Output | Dedicated I/O and programmable user I/O for motion control applications |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Installation Type | Panel-mounted servo drive |
| Cooling Method | Natural convection cooling |
| Dimensions | Approx. 198 × 97 × 146 mm |
| Weight | Approx. 6.48 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 1398-DDM-030 used for?
A: The 1398-DDM-030 is used to control brushless servo motors in applications requiring accurate positioning, speed regulation, and torque control, such as automation machinery and motion systems.
Q2: Which product series does the 1398-DDM-030 belong to?
A: It belongs to the Allen-Bradley Ultra™ 200 Series Digital Servo Drive family.
Q3: What input voltage does the 1398-DDM-030 require?
A: The drive accepts 100–240 VAC single-phase input power with a frequency range of 47–63 Hz.
Q4: What are the output current specifications of the 1398-DDM-030?
A: The drive provides approximately 15 A continuous output current and 30 A peak output current for servo motor operation.
Q5: Does the 1398-DDM-030 support encoder feedback?
A: Yes. The drive uses encoder feedback for closed-loop control, allowing accurate motor position and speed regulation.
Q6: What are the dimensions and weight of the 1398-DDM-030?
A: The approximate dimensions are 198 × 97 × 146 mm, and the weight is approximately 6.48 kg. Actual values may vary depending on hardware revision and accessories.
Q7: Can the 1398-DDM-030 replace other Ultra 200 servo drives?
A: Replacement should only be performed after confirming the motor compatibility, input voltage, output current rating, feedback type, firmware requirements, and complete drive model number.
Q8: What should be checked before installing the 1398-DDM-030?
A: Verify the drive model, motor specifications, encoder wiring, input power requirements, communication settings, and application parameters. Disconnect power and discharge stored energy before installation or replacement.
